Timer Function
WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
Controls the illumination duration of the lamps and illuminations according to the signals from the front door lock actuator (driver side) (door unlock sensor), front door switch (driver side), ignition switch and key switch.
- The timer operates for approx. 30 seconds.

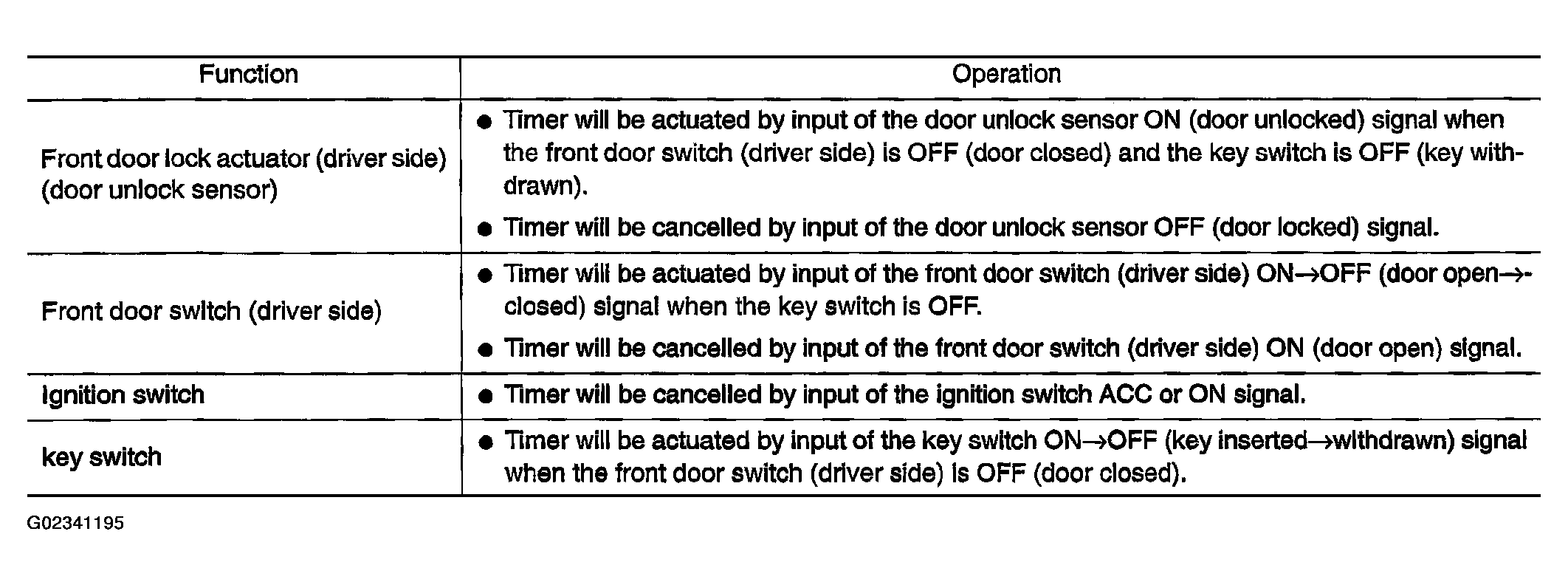

- The timer will be actuated or cancelled by the signals from the following switches.
- If a new timer actuation signal is input while the timer is operating, the later input will have priority.
- If any lamp switch is operated and a separate actuation signal is input while the timer is operating, the lamp operation will be prioritized. However, the timer operation will not be renewed or cancelled.
