Compressor Clutch: Installation: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Install field coil.
Be sure to align coil pin with hole in the front head of the compressor.
Install field coil harness clip using a screwdriver.

Fig 1: Installing Field Coil
Courtesy of NISSAN MOTOR CO., U.S.A.
Install pulley assembly using the installer and a hand press, and then install snap ring using snap ring pliers.

Fig 2: Installing Pulley Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

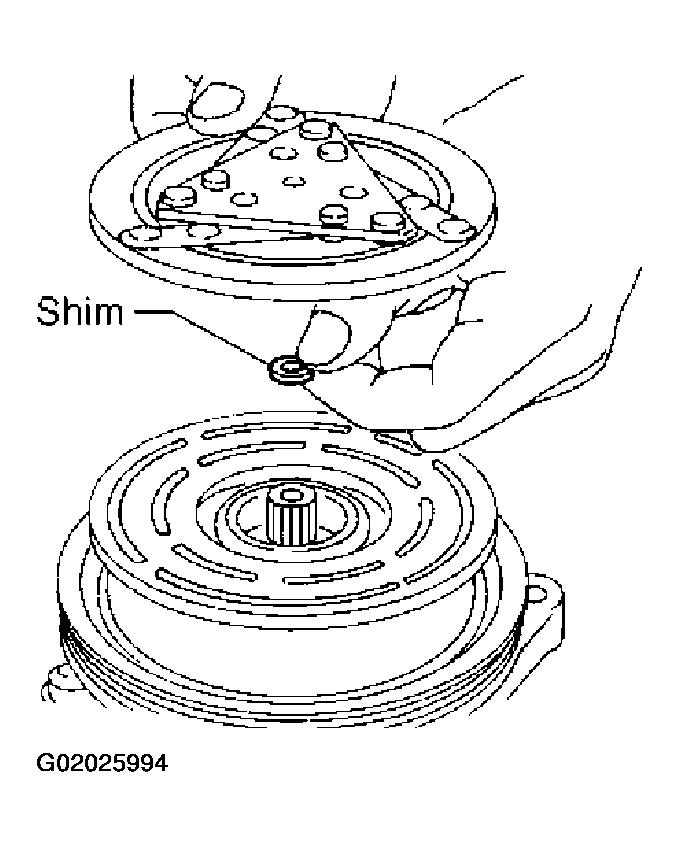

Install clutch disc on the drive shaft, together with the original shim(s). Press the clutch disc down by hand.

Fig 3: Installing Clutch Disc On Drive Shaft, Together With Original Shim(s)
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a holder to prevent clutch disc rotation, tighten the bolt to 14 N.m (1.4 kg-m, 10 ft-lb) torque.
After tightening the bolt, insure the pulley rotates smoothly.

Fig 4: Preventing Clutch Disc Rotation
Courtesy of NISSAN MOTOR CO., U.S.A.
Check clearance around the entire periphery of clutch disc.
1. Disc to pulley clearance: 0.25 - 0.6 mm (0.010 - 0.024 in)
If the specified clearance is not obtained, replace adjusting spacer and readjust.

Fig 5: Checking Clearance Around Entire Periphery Of Clutch Disc
Courtesy of NISSAN MOTOR CO., U.S.A.
