Disassembly and Assembly of Combination Meter

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

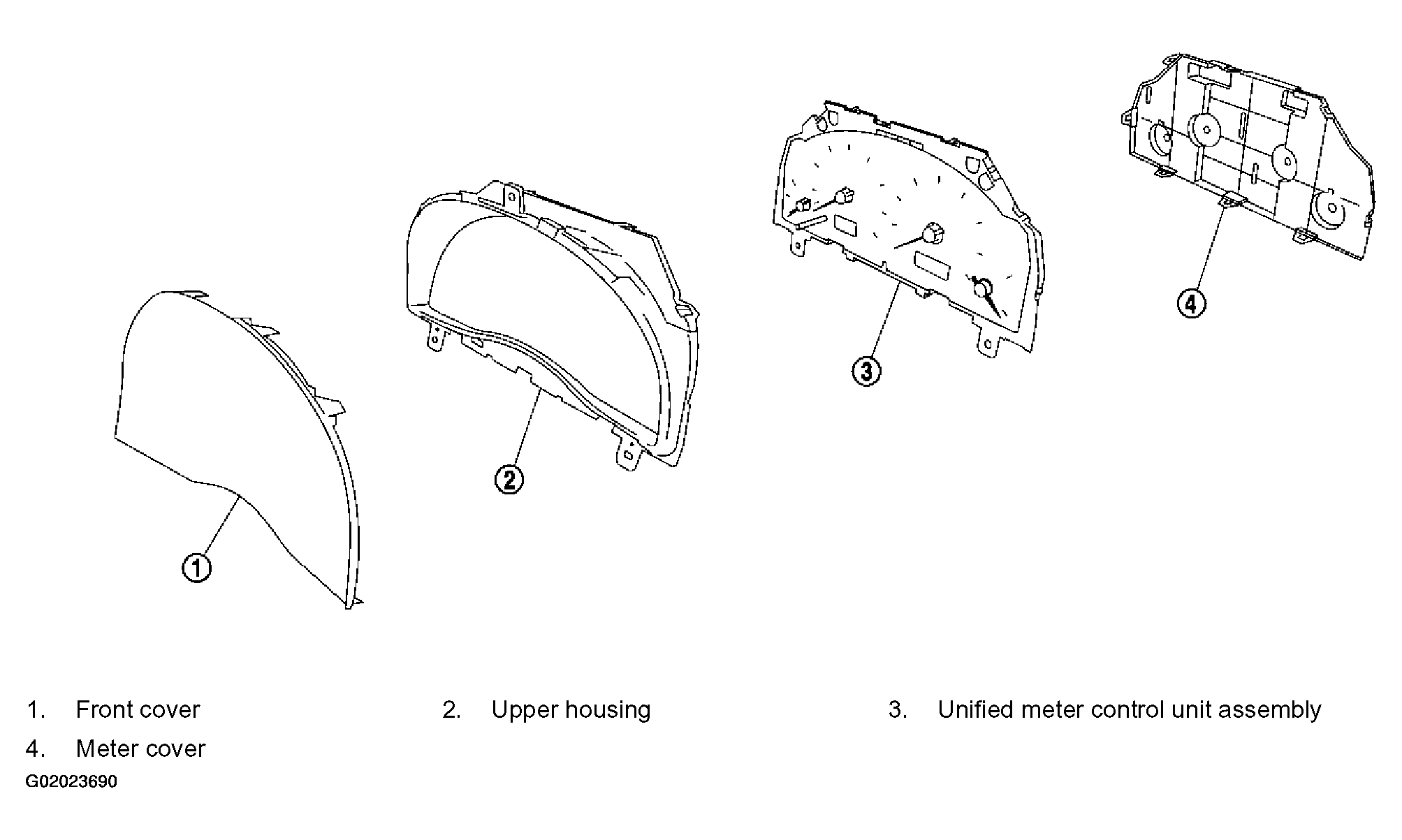

Fig 1: Combination Meter Disassembly And Assembly Procedure
G02023690Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Disengage tabs (8) to separate meter cover.
  2. Disengage tabs (8) to separate upper housing.
  3. Disengage tabs (8) to separate front cover.
