Assembly (1)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install differential side oil seals on transmission case and converter housing.

Fig 1: Installing Differential Side Oil Seals On Converter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Installing Differential Side Oil Seals On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to transmission case. Tighten parking actuator support bolts to the specified torque. Refer to "OVERHAUL ".
- Pay attention to direction of parking actuator support.

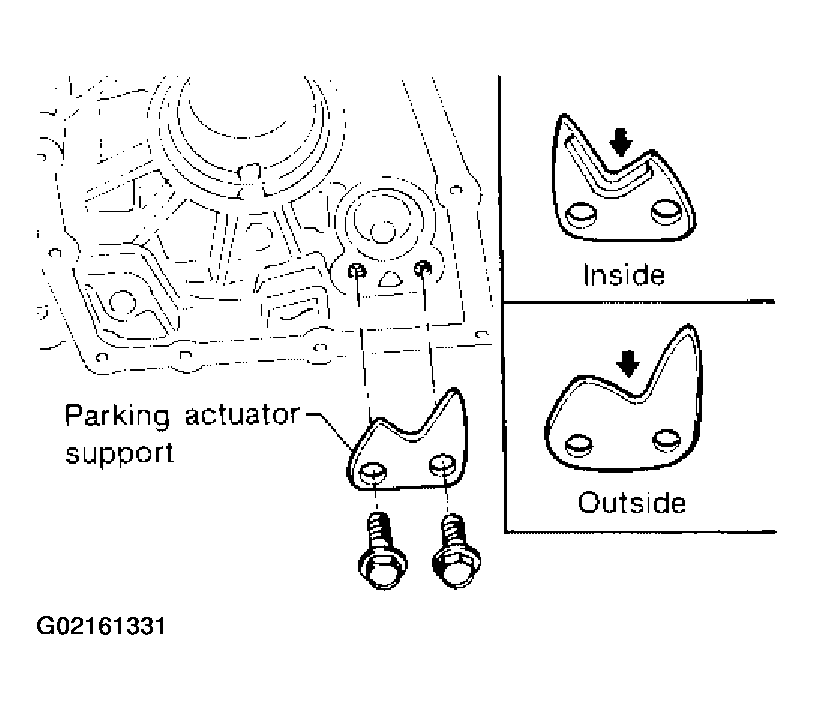

Fig 3: Installing Parking Actuator Support To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transmission case and fix it with parking shaft.
Install return spring.

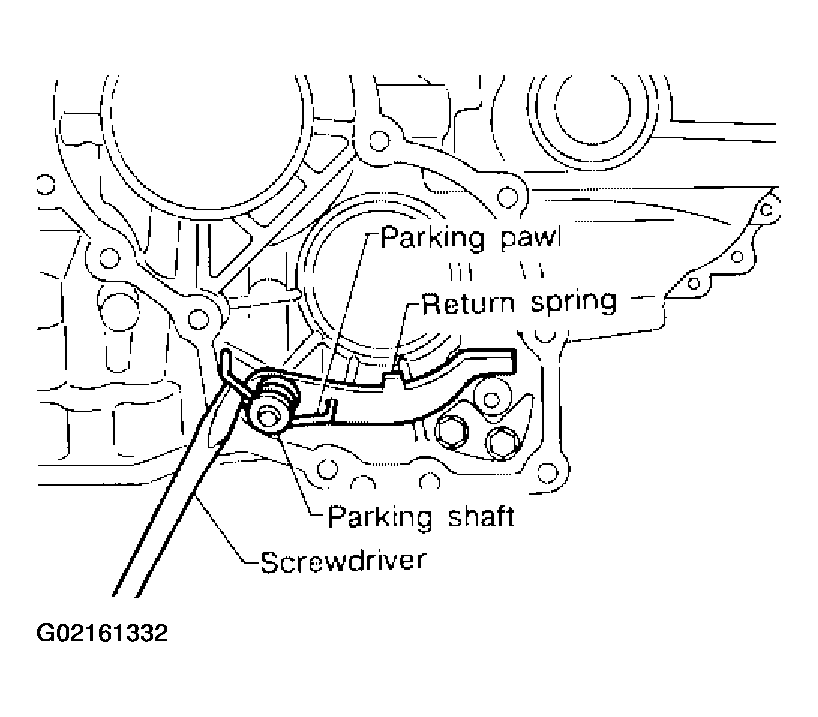

Fig 4: Installing Parking Pawl On Transmission Case And Fixing It With Parking Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
