Specifications Defined By CONSULT-II

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

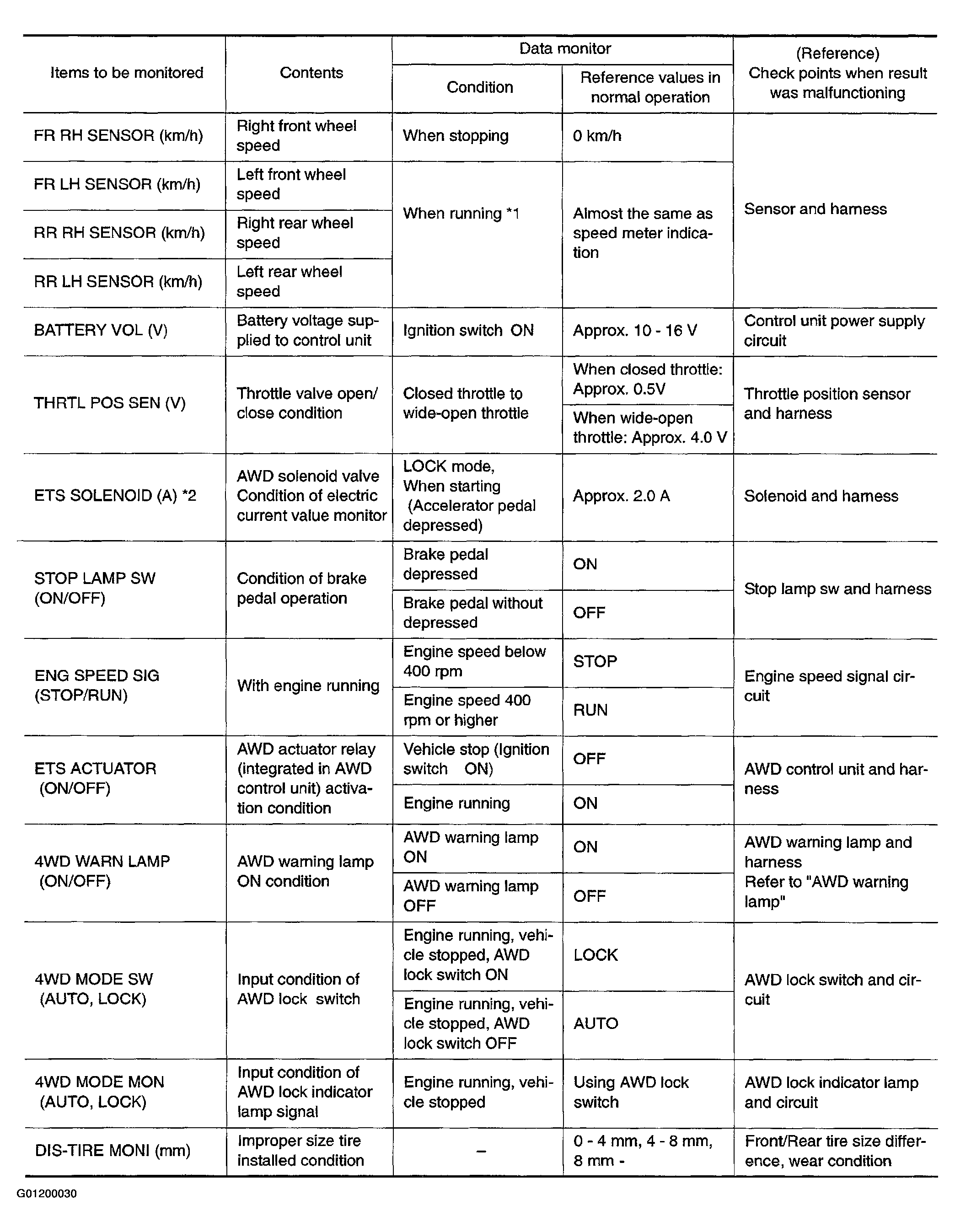

Fig 1: Consult-II Specifications Table (1 Of 2)
G01200030Courtesy of NISSAN MOTOR CO., U.S.A.

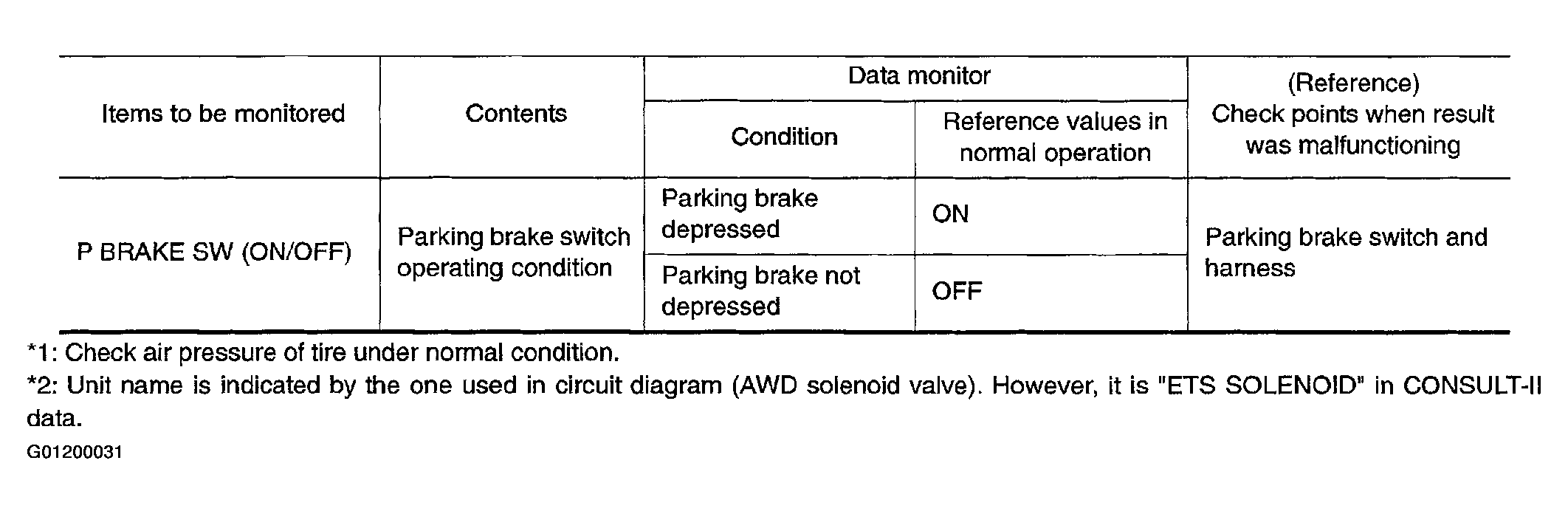

Fig 2: Consult-II Specifications Table (2 Of 2)
G01200031Courtesy of NISSAN MOTOR CO., U.S.A.
