Specifications Defined By Circuit Tester

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

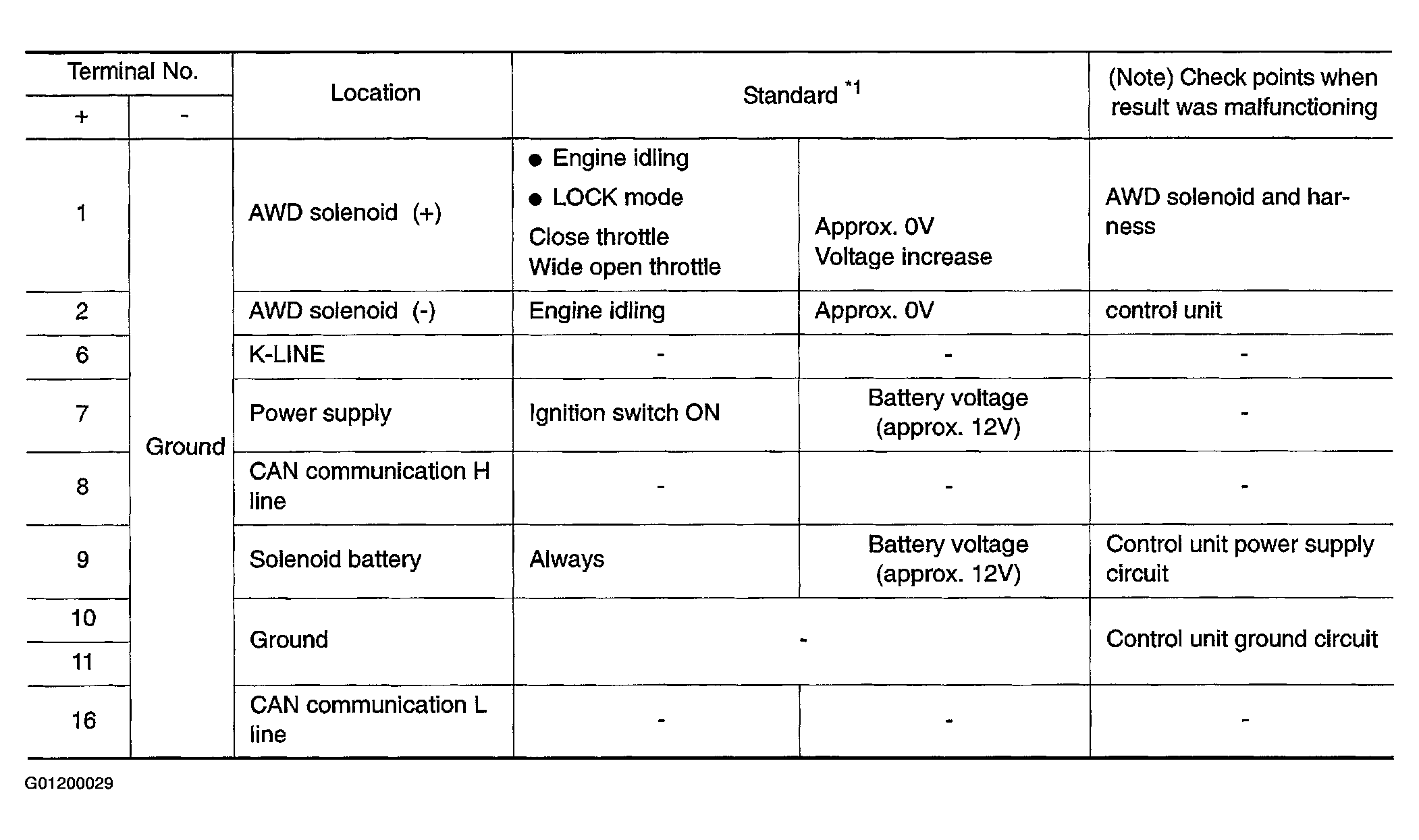

Fig 1: Circuit Tester Specifications Table
G01200029Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: *1: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
