Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down knob cover.
  2. Remove lock pin of selector knob.
  3. Lift up select lever knob and remove it. See CONTROL DEVICE REMOVAL AND INSTALLATION .
  4. Open cup holder lid.
  5. Insert a flat-bladed screwdriver wrapped with tape from behind A/T console finisher and remove by lifting.

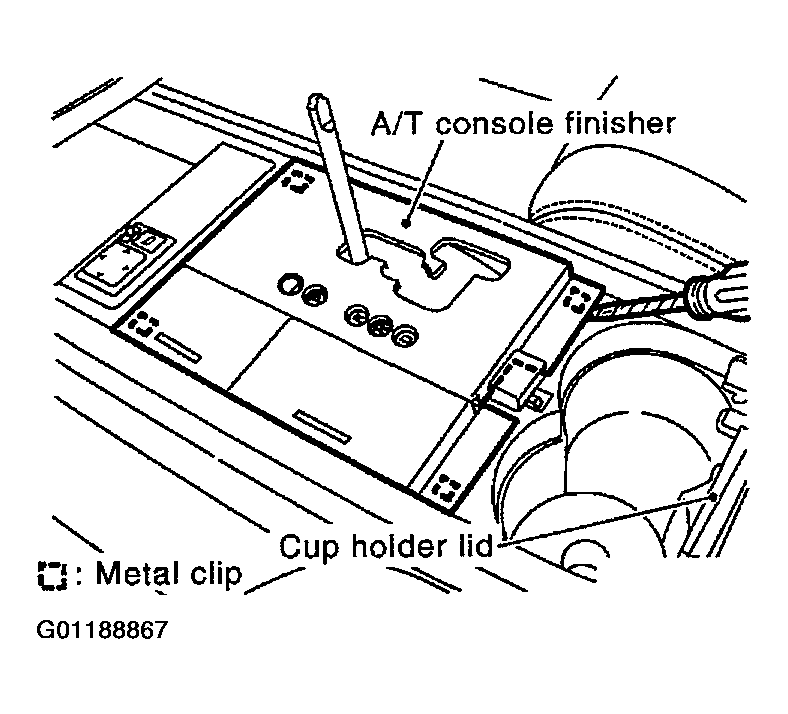

    Fig 1: Removing A/T Console Finisher
    G01188867Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Disconnect harness connector, and remove A/T console finisher.
  7. Console front pocket is handled lifted, and disengage with the metal clip.

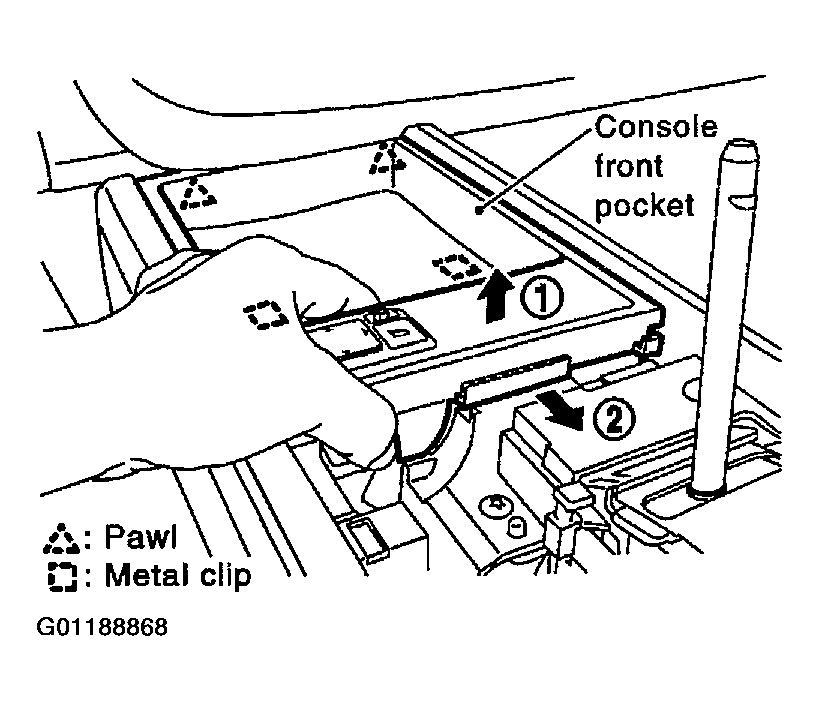

    Fig 2: Removing Console Front Pocket
    G01188868Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Pull up and back to disengage from front pawl.
  9. Disconnect harness connector, and remove console front pocket.
  10. Open console lid.
  11. Remove console rear pocket.
  12. Insert a flat bladed screwdriver wrapped with tape from the space with the console box and remove console mask (LH/RH) by lifting.

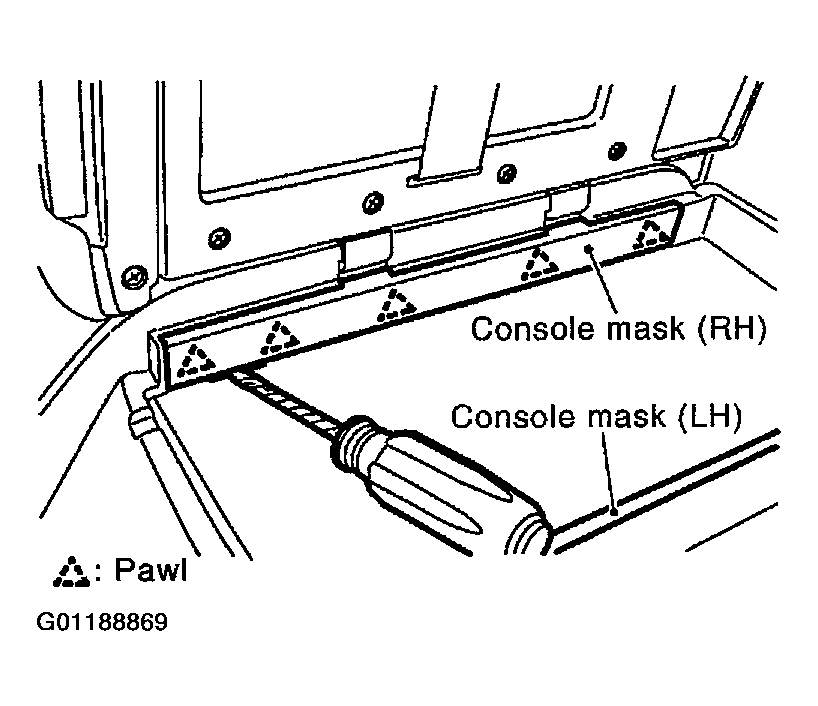

    Fig 3: Removing Console Box
    G01188869Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove screws, and remove center console assembly.
  14. Remove screws.
  15. Disconnect harness connector and remove console box.
  16. Remove screws.

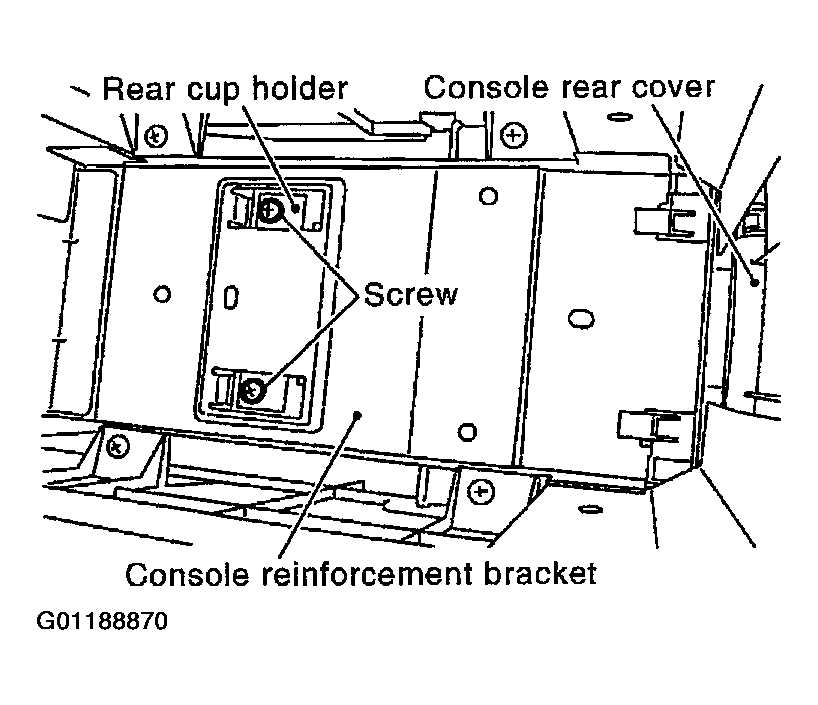

    Fig 4: Removing Cup Holder Rear & Console Rear Cover
    G01188870Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Disconnect metal clips and pawls, then remove cup holder rear and console rear cover.
  18. The upper part of rear portion of instrument lower cover is pulled backward, and disengage with pawl is removed.
    Fig 5: Removing Instrument Lower Cover
    G01188871Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Pull backward and remove instrument lower cover (LH).
  20. Remove screws.
  21. Disconnect clips, then remove console cover (LH/RH).
  22. Remove nuts, lock plate and control cable. Refer to CONTROL DEVICE REMOVAL AND INSTALLATION
  23. Remove bolts and nuts, and remove console reinforcement bracket.
