Removal and Installation

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator. Refer to REMOVAL AND INSTALLATION FOR EVAPORATOR .
  2. Remove the intake sensor clip and then the sensor.
    CAUTION: Be careful not to damage the core surface.

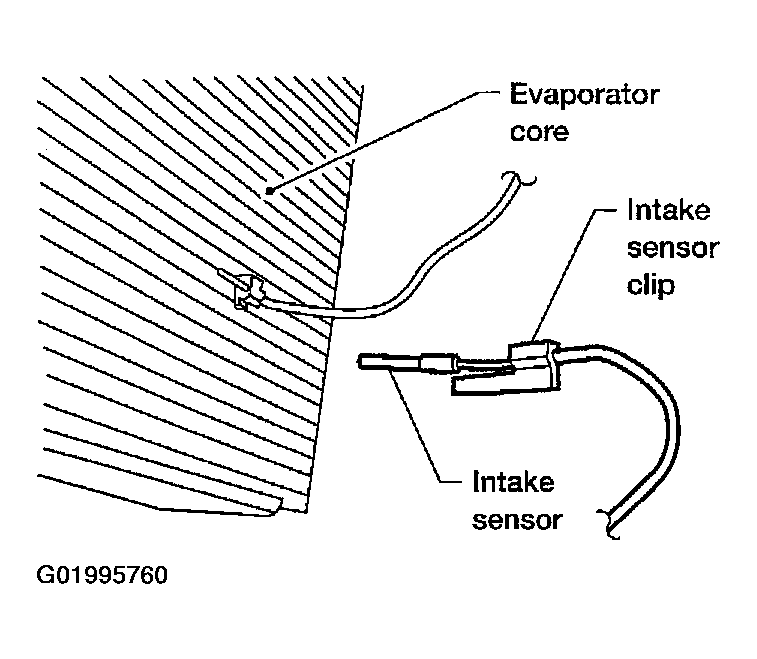

    Fig 1: Removing Intake Sensor
    G01995760Courtesy of NISSAN MOTOR CO., U.S.A.
