Operating Cylinder: Components

WARNING: This page is about a different variant/trim than selected.

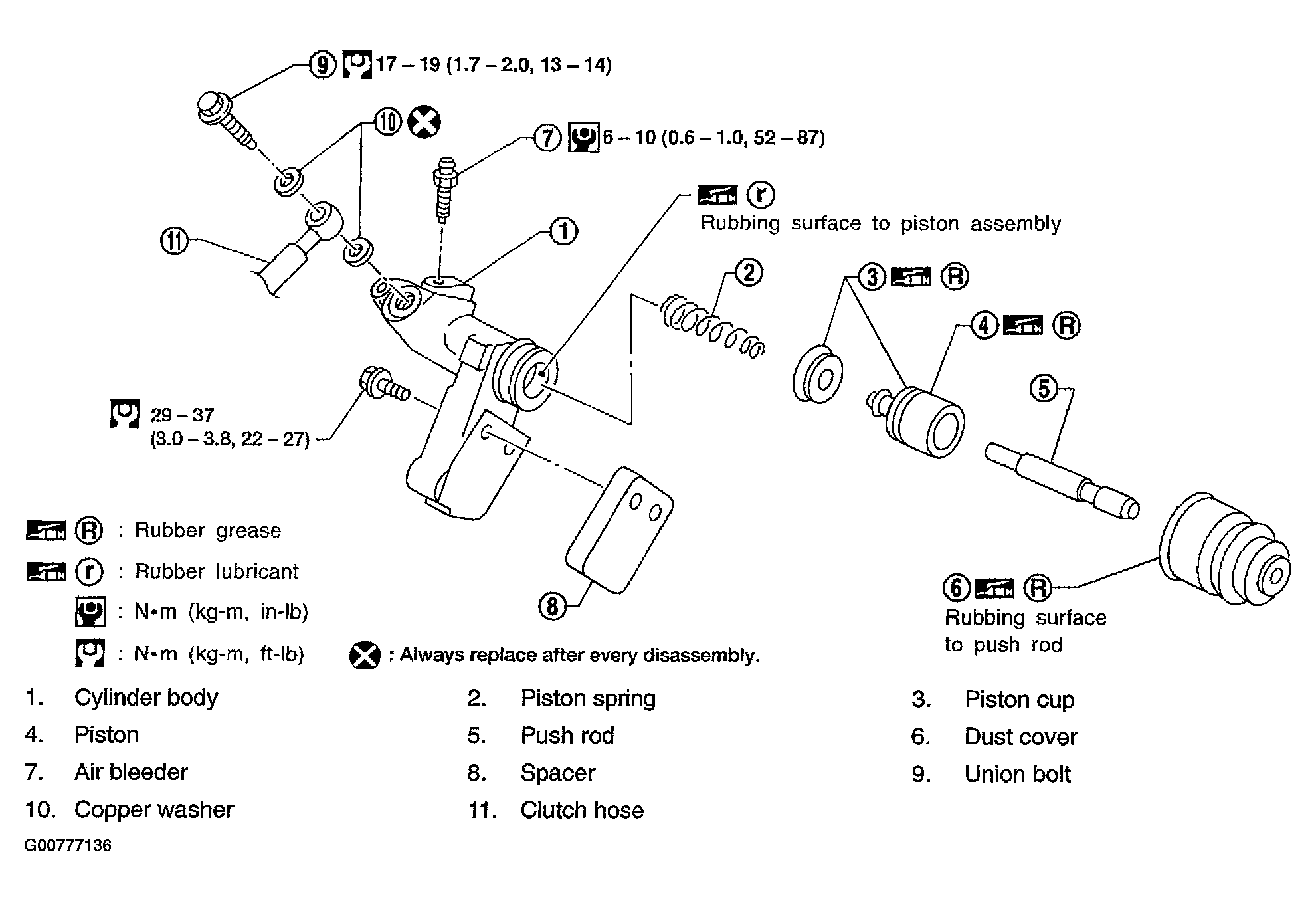

Fig 1: Identifying Operating Cylinder Components
G00777136Courtesy of NISSAN MOTOR CO., U.S.A.
