Transaxle Gear Control

WARNING: This page is about a different variant/trim than selected.

Refer to the illustration for the REMOVAL AND INSTALLATION PROCEDURE .

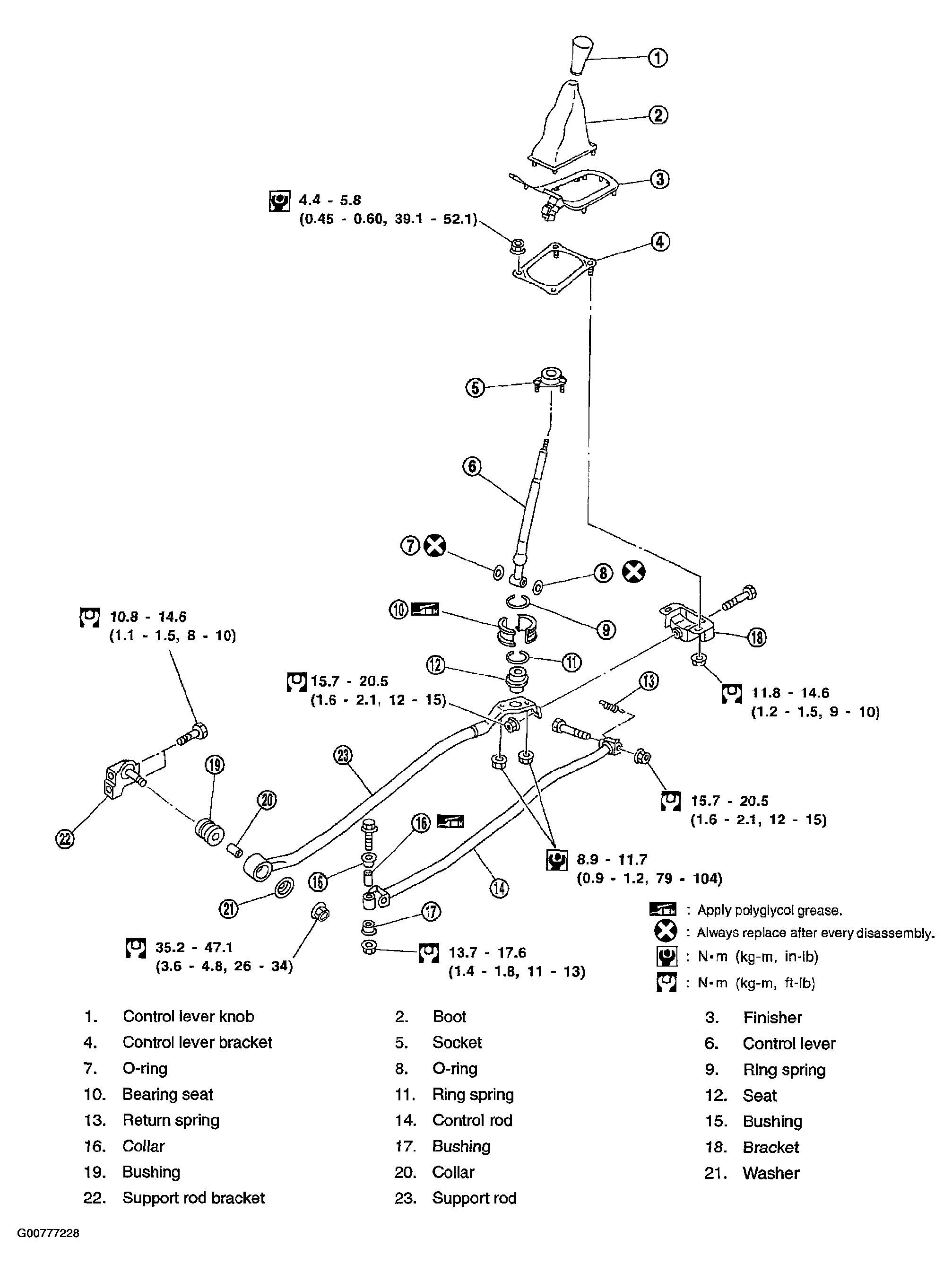

Fig 1: Removal And Installation Of Transaxle Gear Control And Tightening Specifications
G00777228Courtesy of NISSAN MOTOR CO., U.S.A.
