Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

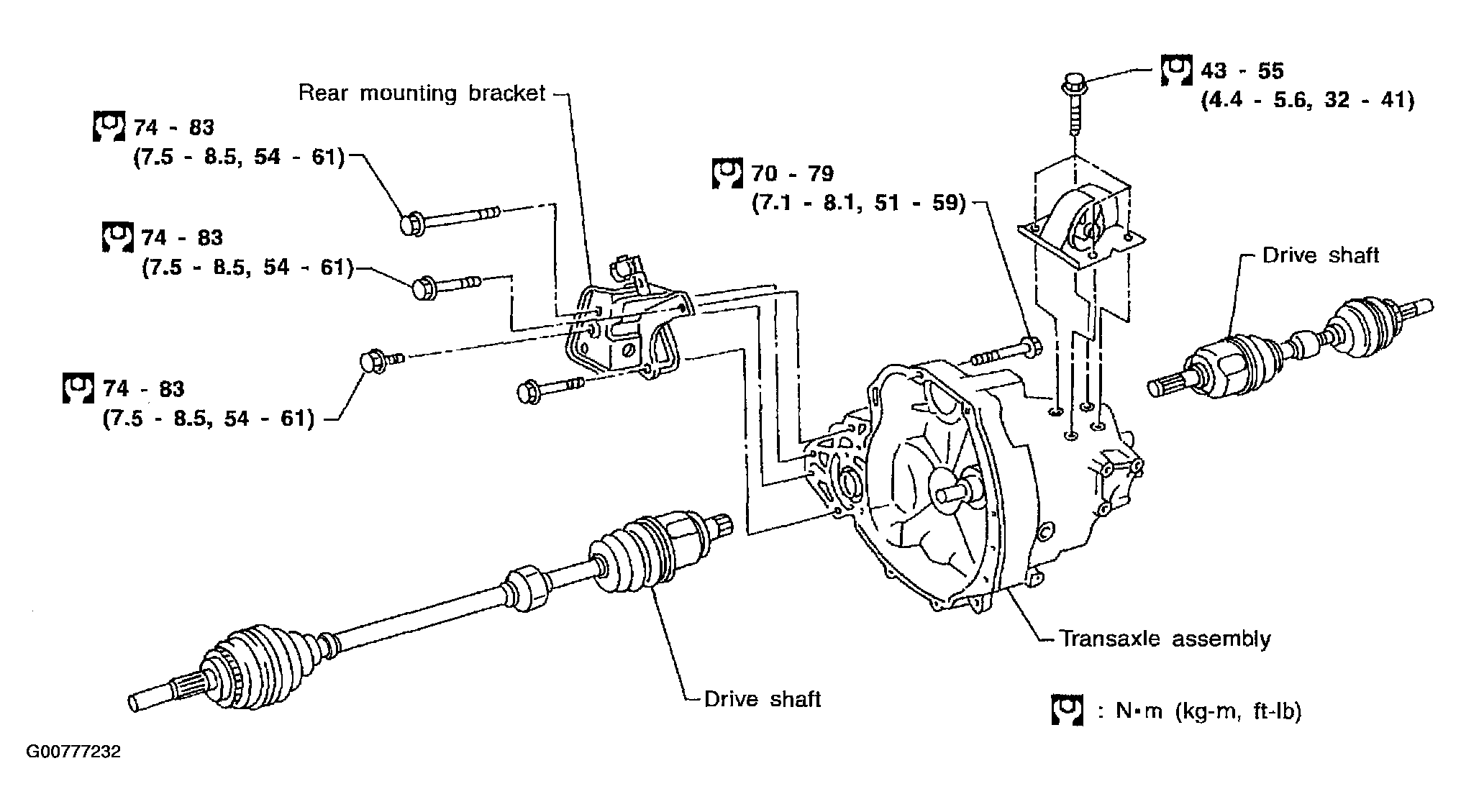

Fig 1: Removal And Installation Of Transaxle Assembly And Tightening Torques
G00777232Courtesy of NISSAN MOTOR CO., U.S.A.
