Assembly (1)

WARNING: This page is about a different variant/trim than selected.

Install revolution sensor onto transmission case.
Always use new sealing parts.

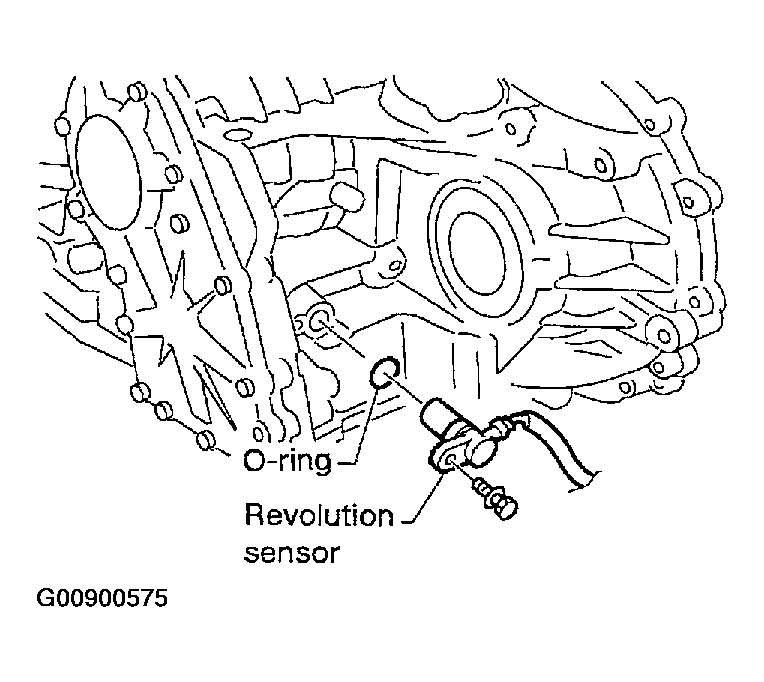

Fig 1: Installing Revolution Sensor Onto Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential side oil seals on transmission case and converter housing, so that "A" and "B" are within specifications.

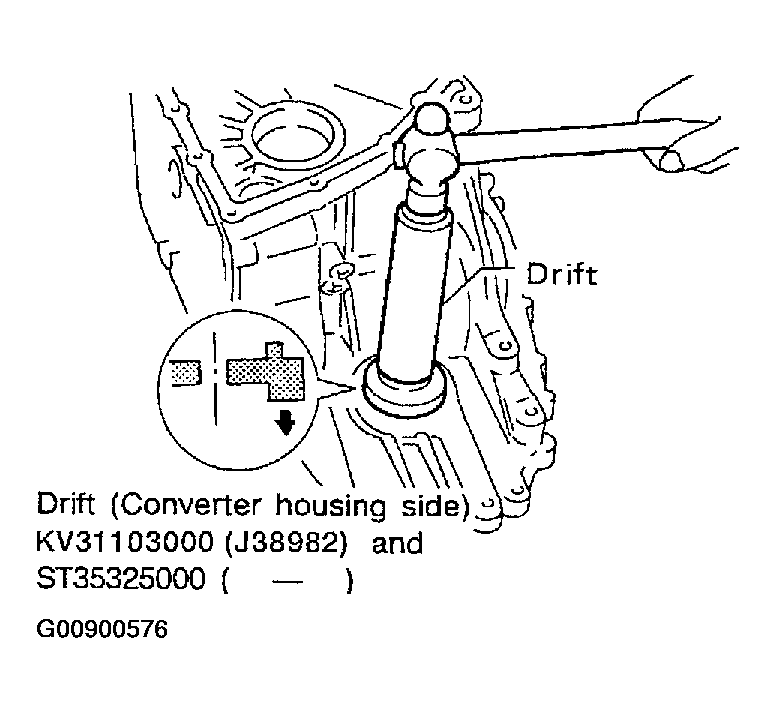

Fig 2: Installing Differential Side Oil Seals On Transmission Case And Converter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Oil Seal Dimensions
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Oil Seal Dimensions
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to transmission case.
- Pay attention to direction of parking actuator support.

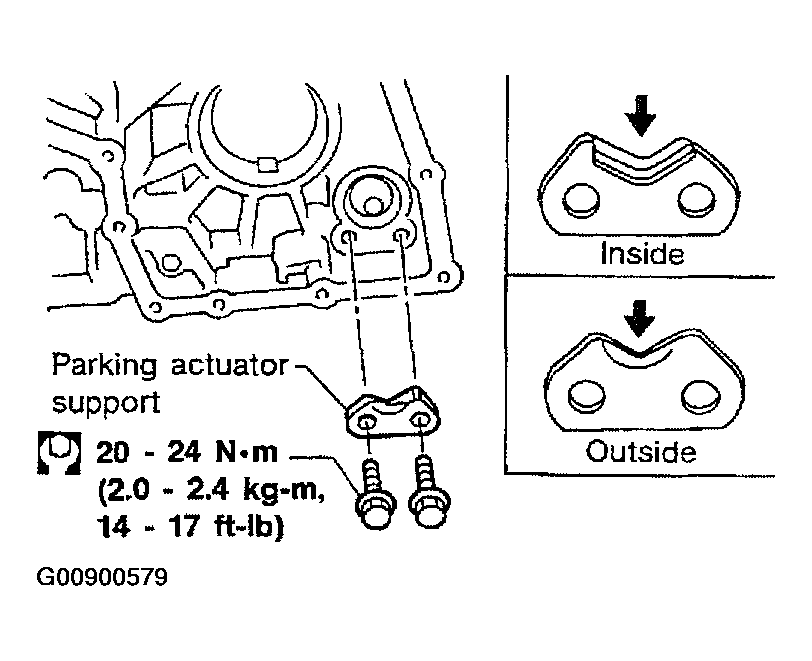

Fig 5: Installing Parking Actuator Support To Transmission Case And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transmission case and fix it with parking shaft.

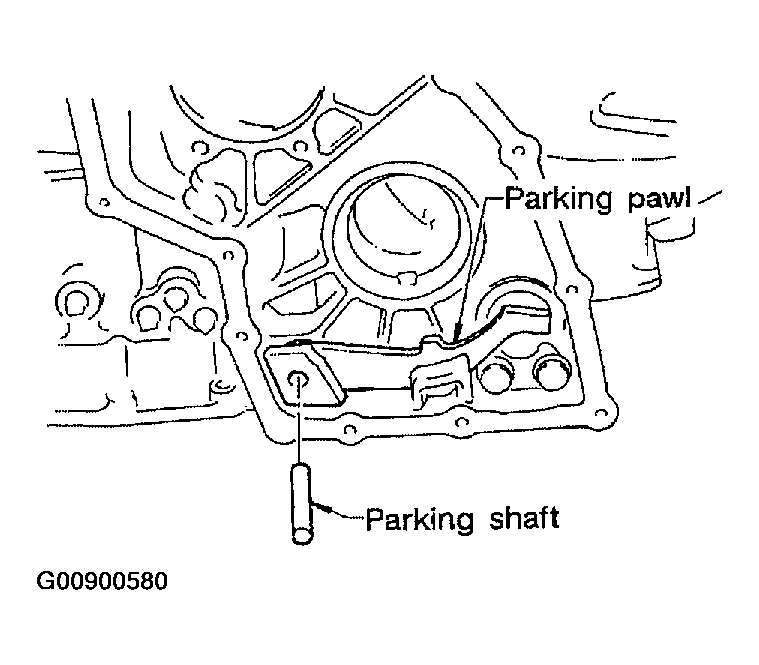

Fig 6: Installing Parking Pawl On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring.

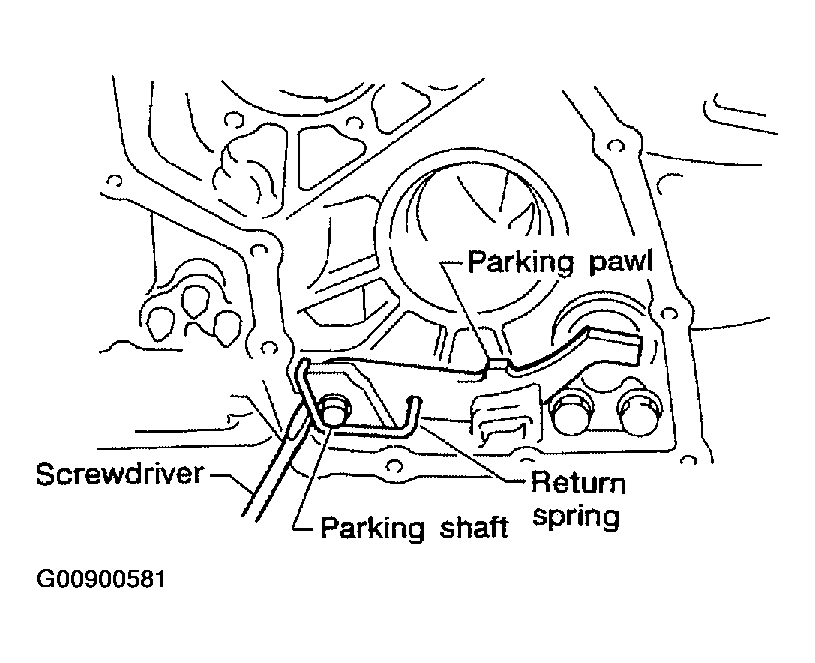

Fig 7: Installing Return Spring
