Assembly (2)

WARNING: This page is about a different variant/trim than selected.
  1. Remove paper rolled around bearing retainer.
  2. Install thrust washer on bearing retainer.
    • Apply petroleum jelly to thrust washer.

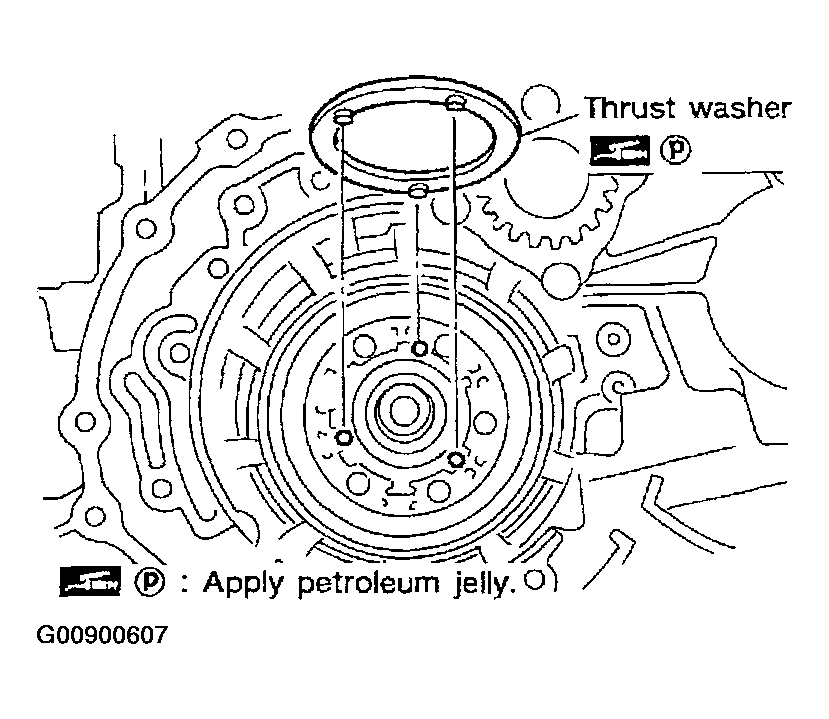

    Fig 1: Installing Thrust Washer On Bearing Retainer
    G00900607Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install forward clutch assembly.
    • Align teeth of low & reverse brake drive plates before installing.
    • Make sure that bearing retainer seal rings are not spread.

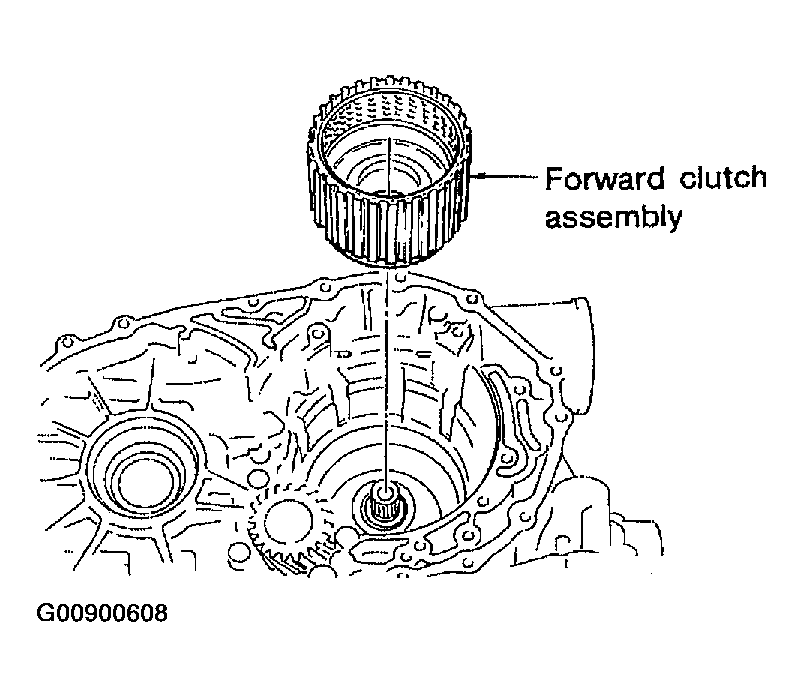

    Fig 2: Installing Forward Clutch Assembly
    G00900608Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install thrust needle bearing on bearing retainer.
    • Apply petroleum jelly to thrust bearing.
    • Pay attention to direction of thrust needle bearing.

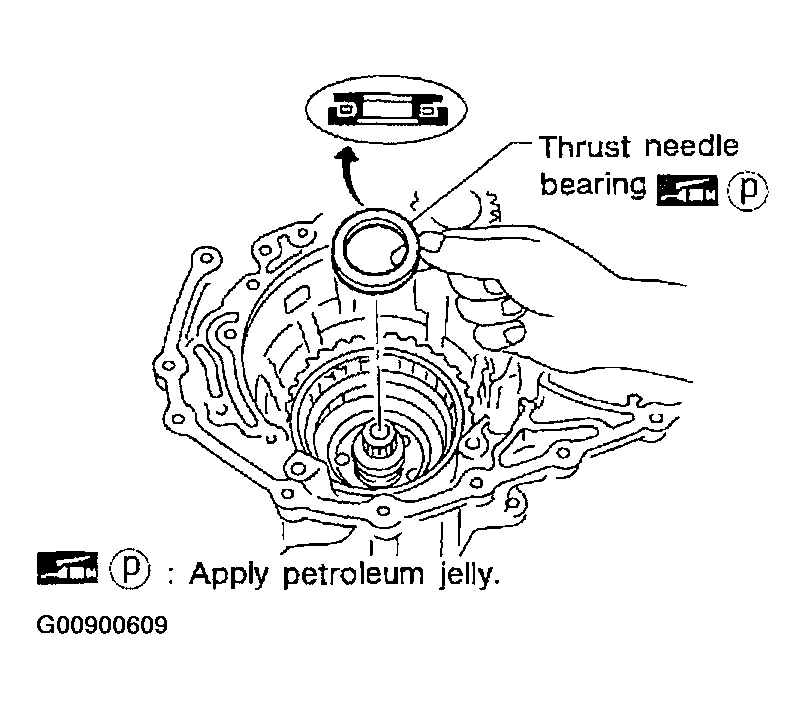

    Fig 3: Installing Thrust Needle Bearing On Bearing Retainer
    G00900609Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install thrust needle bearing on rear internal gear.
    • Apply petroleum jelly to thrust needle bearing.
    • Pay attention to direction of thrust needle bearing.
    Fig 4: Installing Thrust Needle Bearing On Rear Internal Gear
    G00900610Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Hard forward clutch hub and turn overrun clutch hub. Check overrun clutch hub for directions of lock and unlock.
    • If not as shown in illustration, check installed direction of forward one-way clutch.
    Fig 5: Checking Overrun Clutch Hub For Directions Of Lock And Unlock
    G00900611Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install rear internal gear assembly.
    • Align teeth of forward clutch and overrun clutch drive plate.

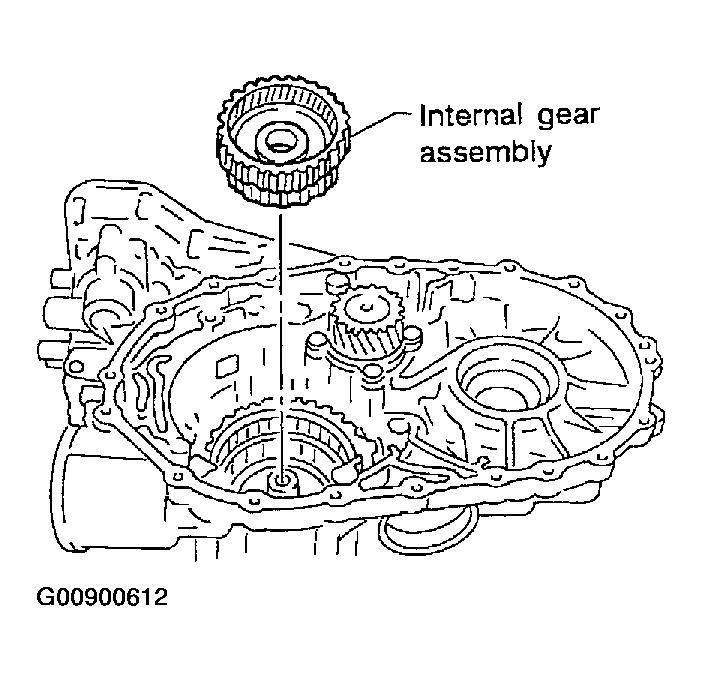

    Fig 6: Installing Rear Internal Gear Assembly
    G00900612Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install needle bearing on rear planetary carrier.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.
    Fig 7: Installing Needle Bearing On Rear Planetary Carrier
    G00900613Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install rear sun gear on rear planetary carrier.
    • Pay attention to direction of rear sun gear.

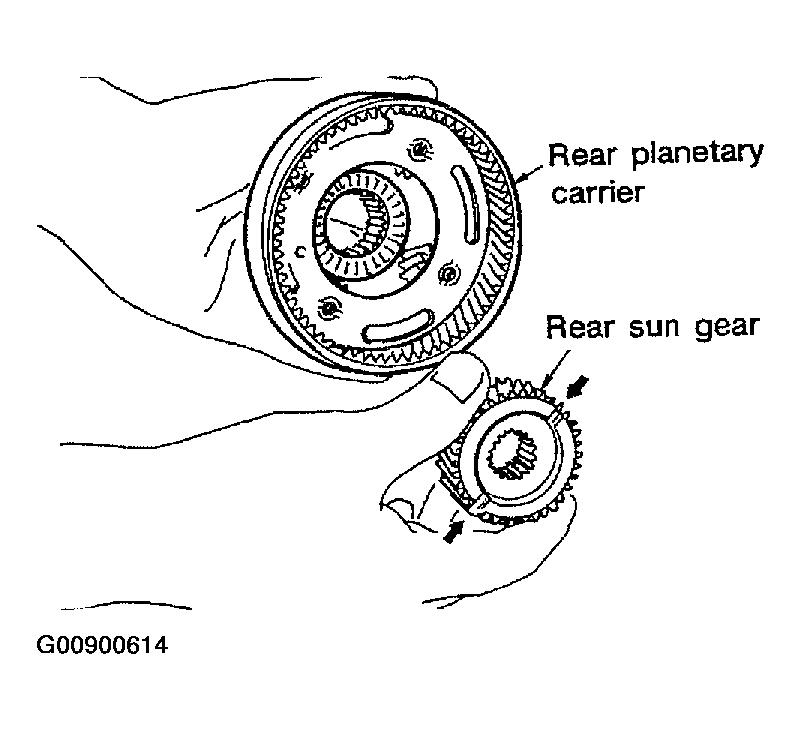

    Fig 8: Installing Rear Sun Gear On Rear Planetary Carrier
    G00900614Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install rear planetary carrier on transmission case.

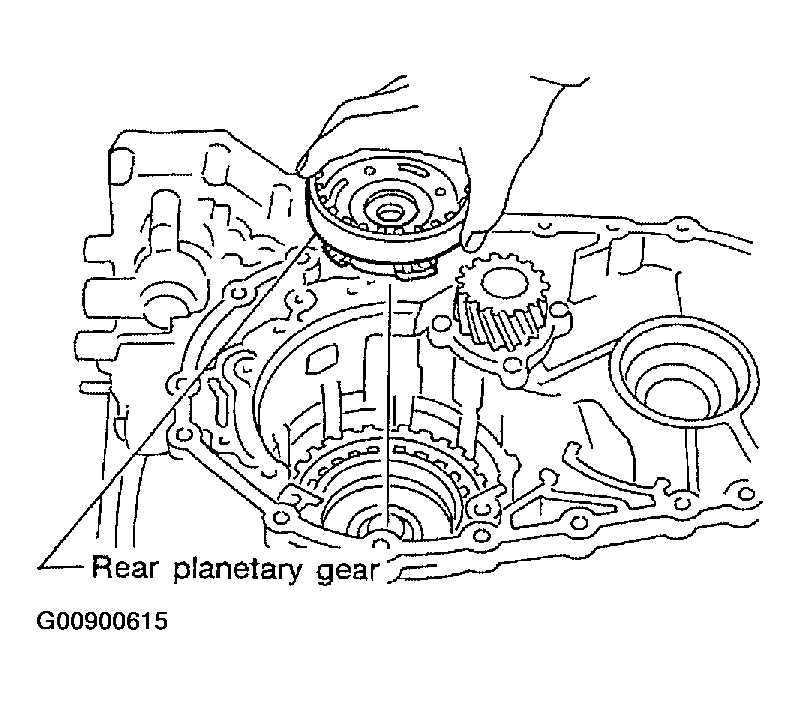

    Fig 9: Installing Rear Planetary Carrier On Transmission Case
    G00900615Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install thrust needle bearing on front planetary carrier.
    • Apply petroleum jelly to thrust needle bearing.
    • Pay attention to direction of thrust needle bearing.
    Fig 10: Installing Thrust Needle Bearing On Front Planetary Carrier
    G00900616Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install low one-way clutch to front planetary carrier by turning it in the direction of the arrow as shown.
  13. While holding front planetary carrier, turn low one-way clutch. Check low one-way clutch for correct directions of lock and unlock.
    Fig 11: Checking Low One-Way Clutch For Correct Directions Of Lock And Unlock
    G00900617Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install front planetary carrier assembly on transmission case.

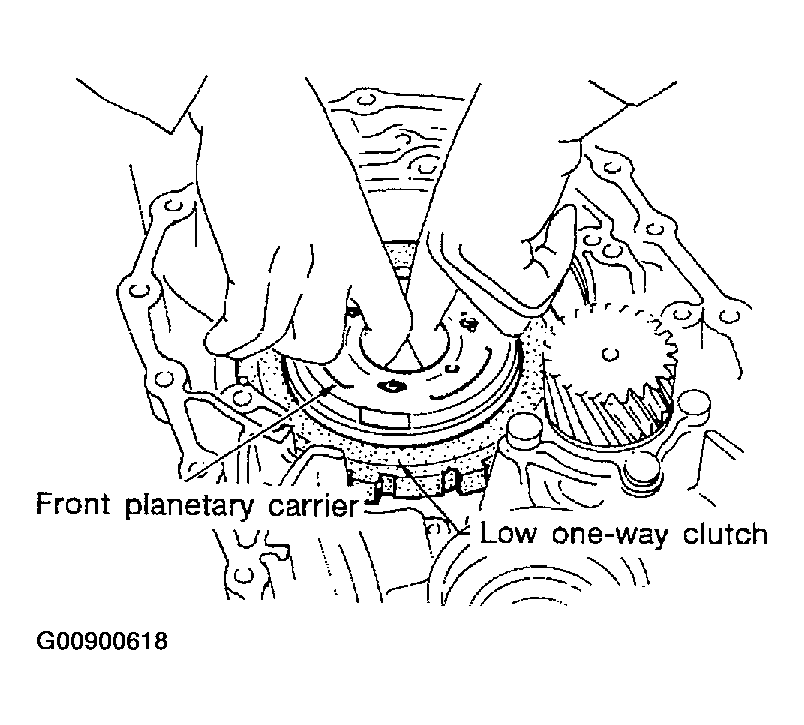

    Fig 12: Installing Front Planetary Carrier Assembly On Transmission Case
    G00900618Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install snap ring with screwdriver.
    • Forward clutch and bearings must be correctly installed for snap ring to fit groove of transmission case.

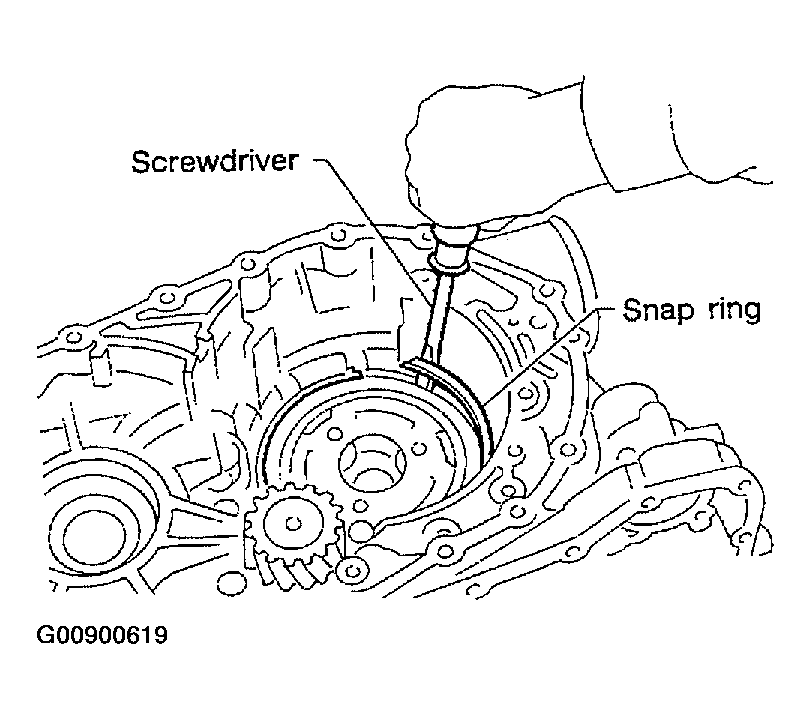

    Fig 13: Installing Snap Ring
    G00900619Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

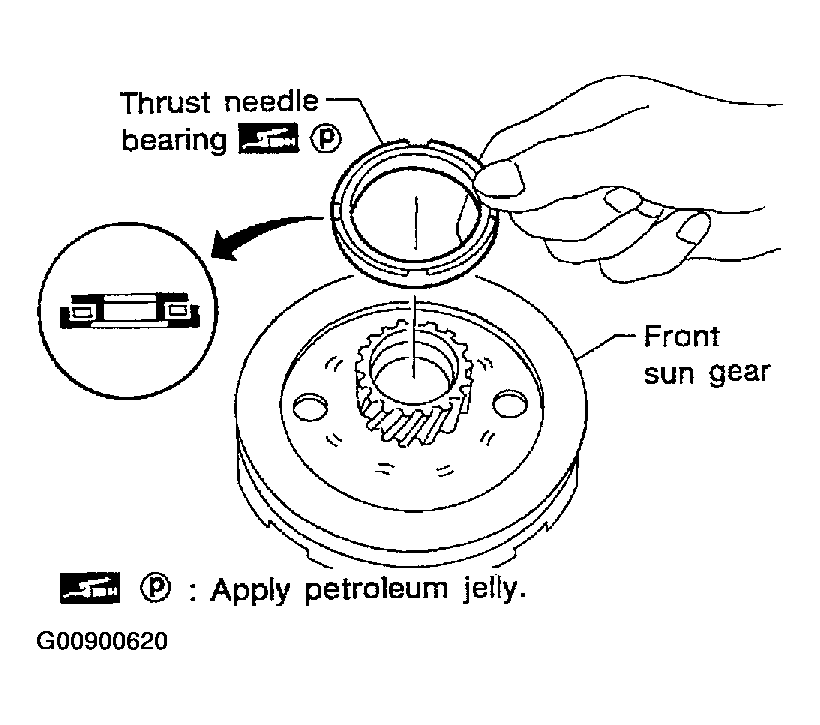

    Fig 14: Installing Needle Bearing On Front Sun Gear
    G00900620Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install front sun gear on front planetary carrier.

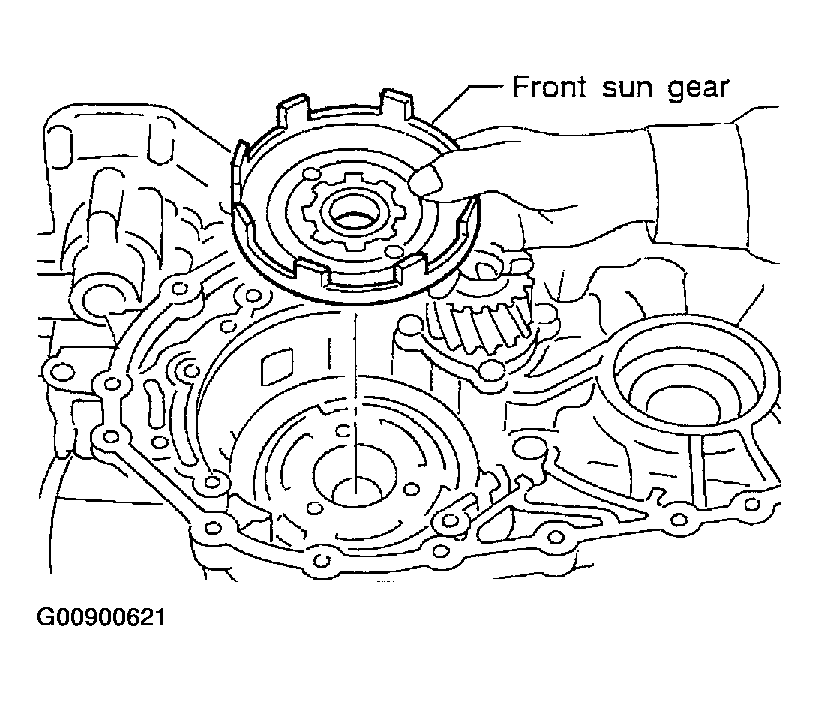

    Fig 15: Installing Front Sun Gear On Front Planetary Carrier
    G00900621Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

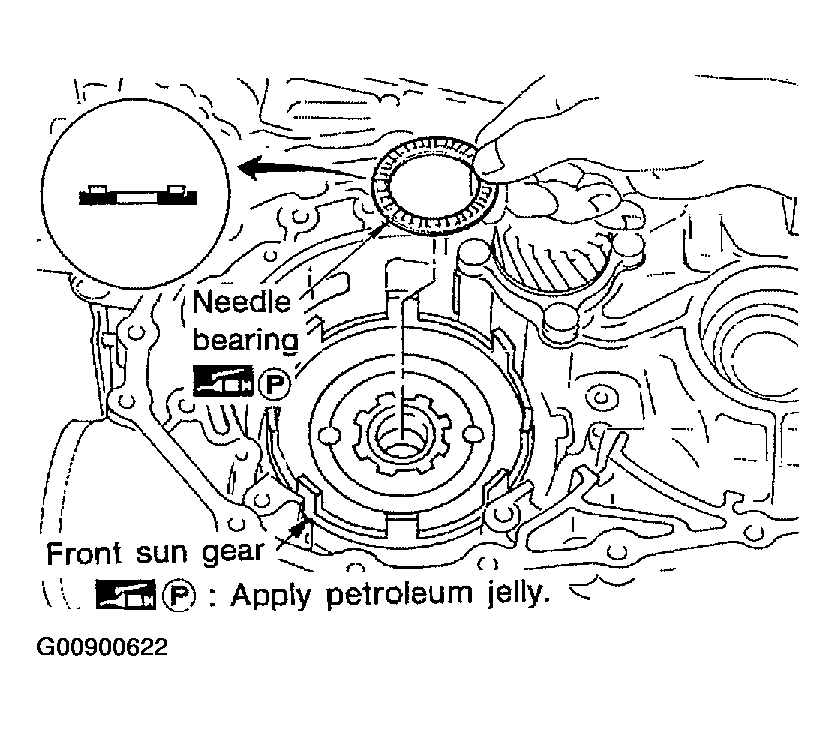

    Fig 16: Installing Needle Bearing On Front Sun Gear
    G00900622Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Install high clutch hub on front sun gear.

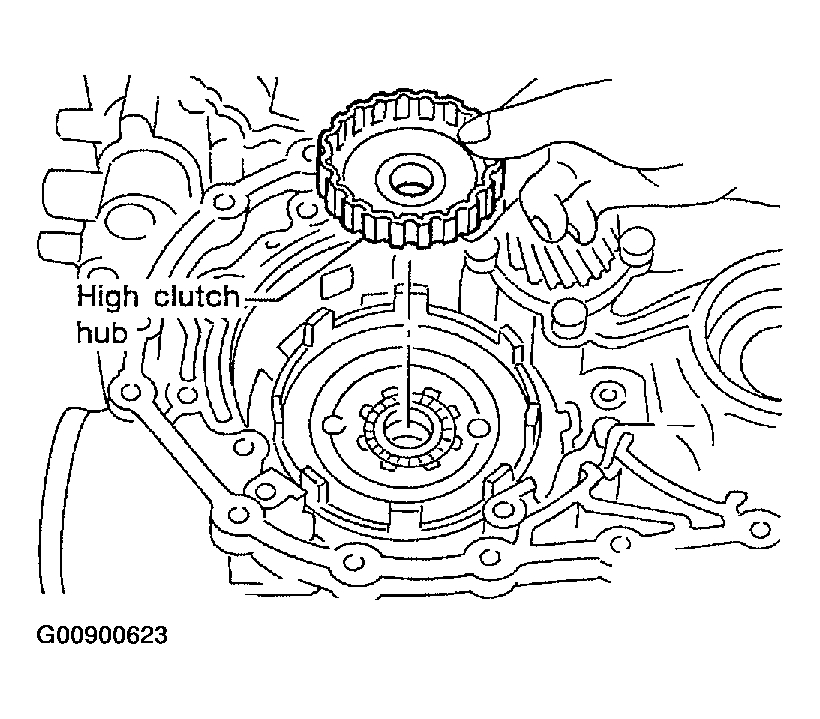

    Fig 17: Installing High Clutch Hub On Front Sun Gear
    G00900623Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install needle bearing on high clutch hub.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

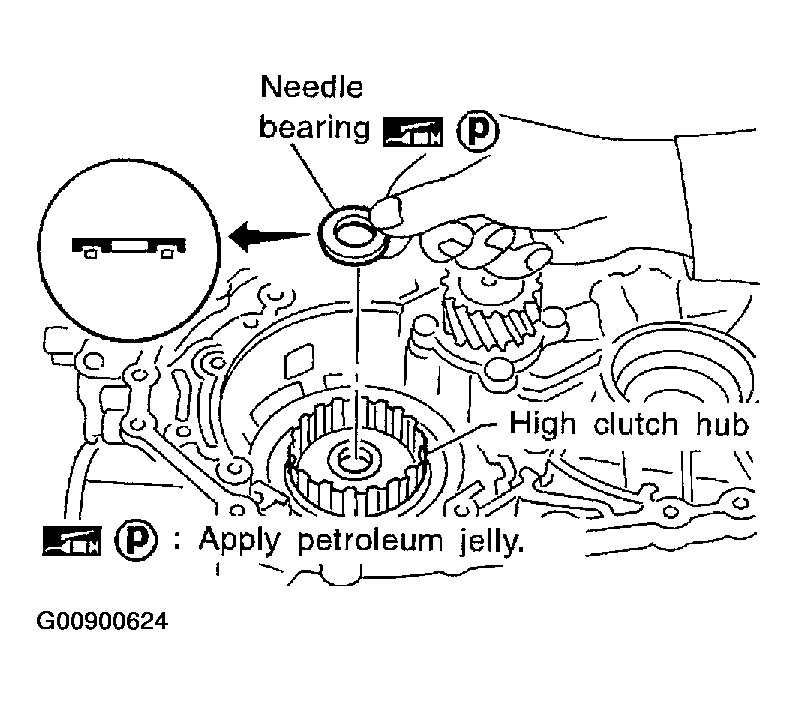

    Fig 18: Installing Needle Bearing On High Clutch Hub
    G00900624Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Remove paper rolled around input shaft.
  22. Install input shaft assembly.
    • Align teeth of high clutch drive plates before installing.

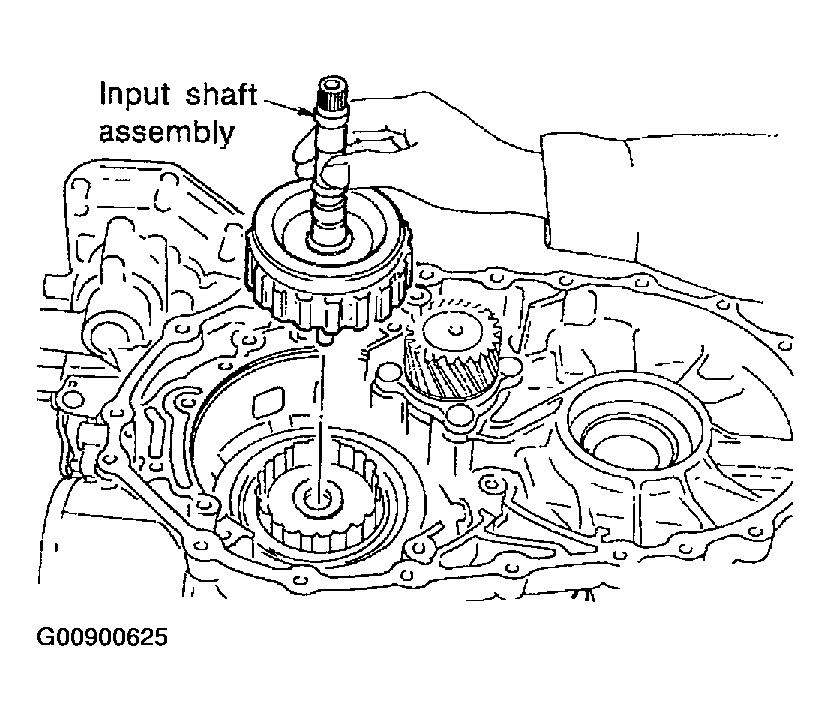

    Fig 19: Installing Input Shaft Assembly
    G00900625Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Install reverse clutch assembly.
    • Align teeth of reverse clutch drive plates before installing.

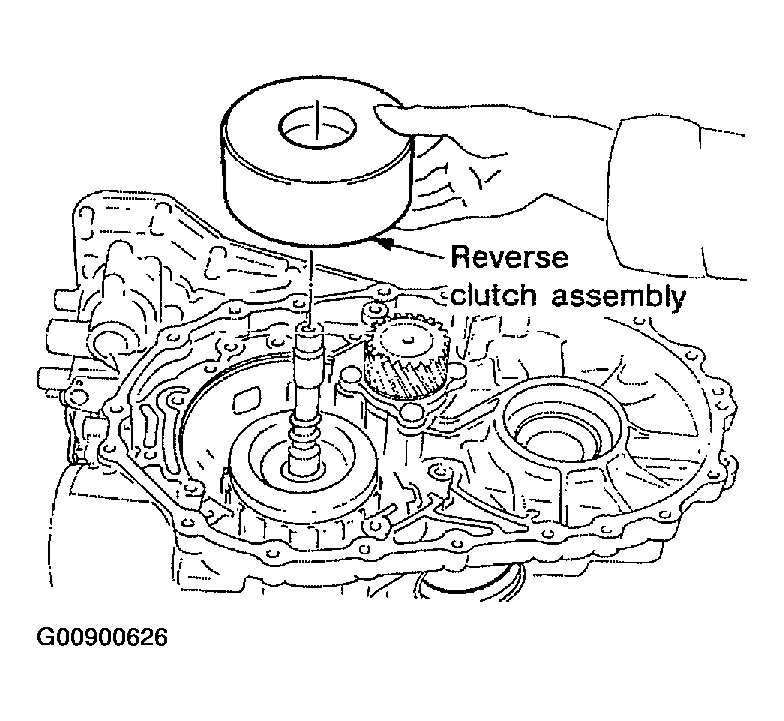

    Fig 20: Installing Reverse Clutch Assembly
    G00900626Courtesy of NISSAN MOTOR CO., U.S.A.
