Retainer Plate (For Control Valve Lower Body)

WARNING: This page is about a different variant/trim than selected.

Refer to "CONTROL VALVE LOWER BODY ".

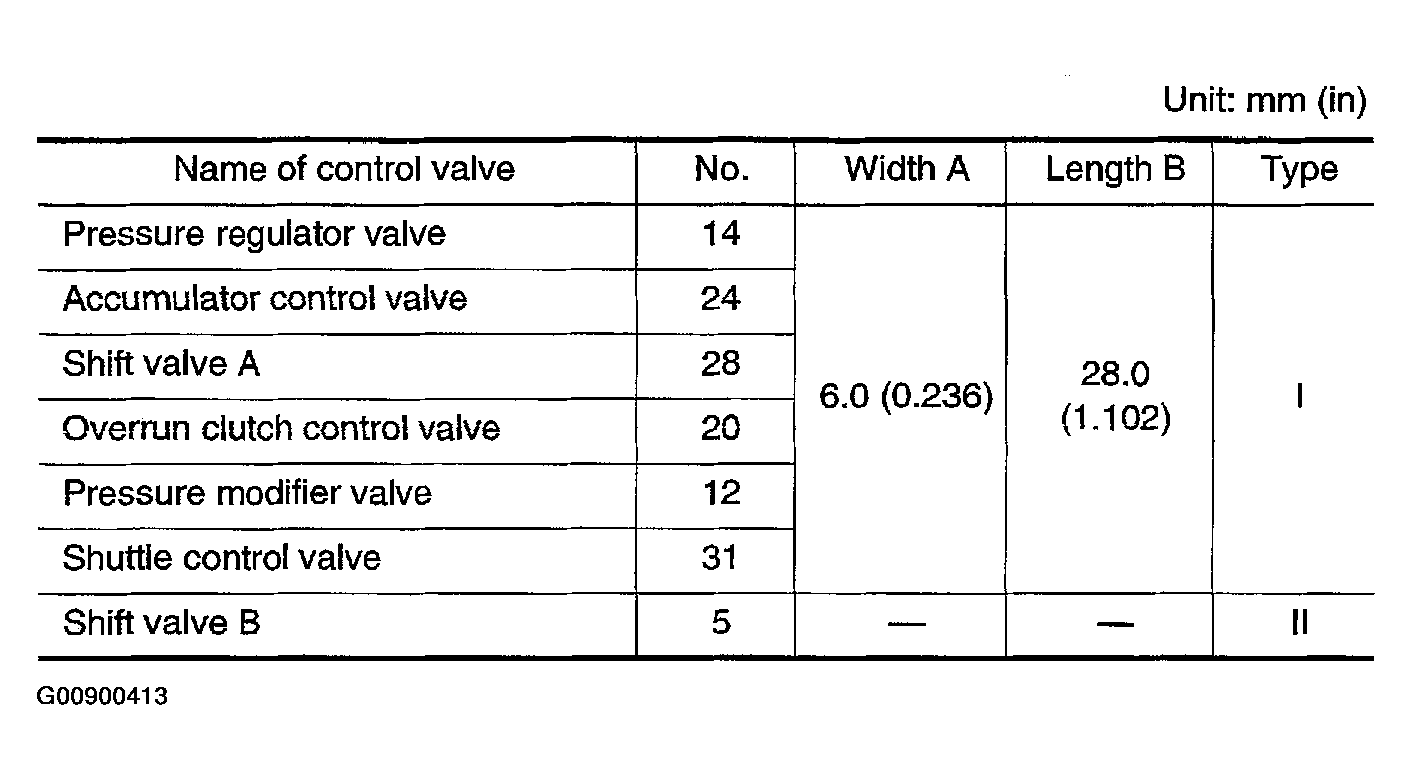

Fig 1: Retainer Plate Dimensions (For Control Valve Lower Body)
G00900413Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Retainer Plate Dimensions (For Control Valve Lower Body)
G00900414Courtesy of NISSAN MOTOR CO., U.S.A.
