Passenger Compartment

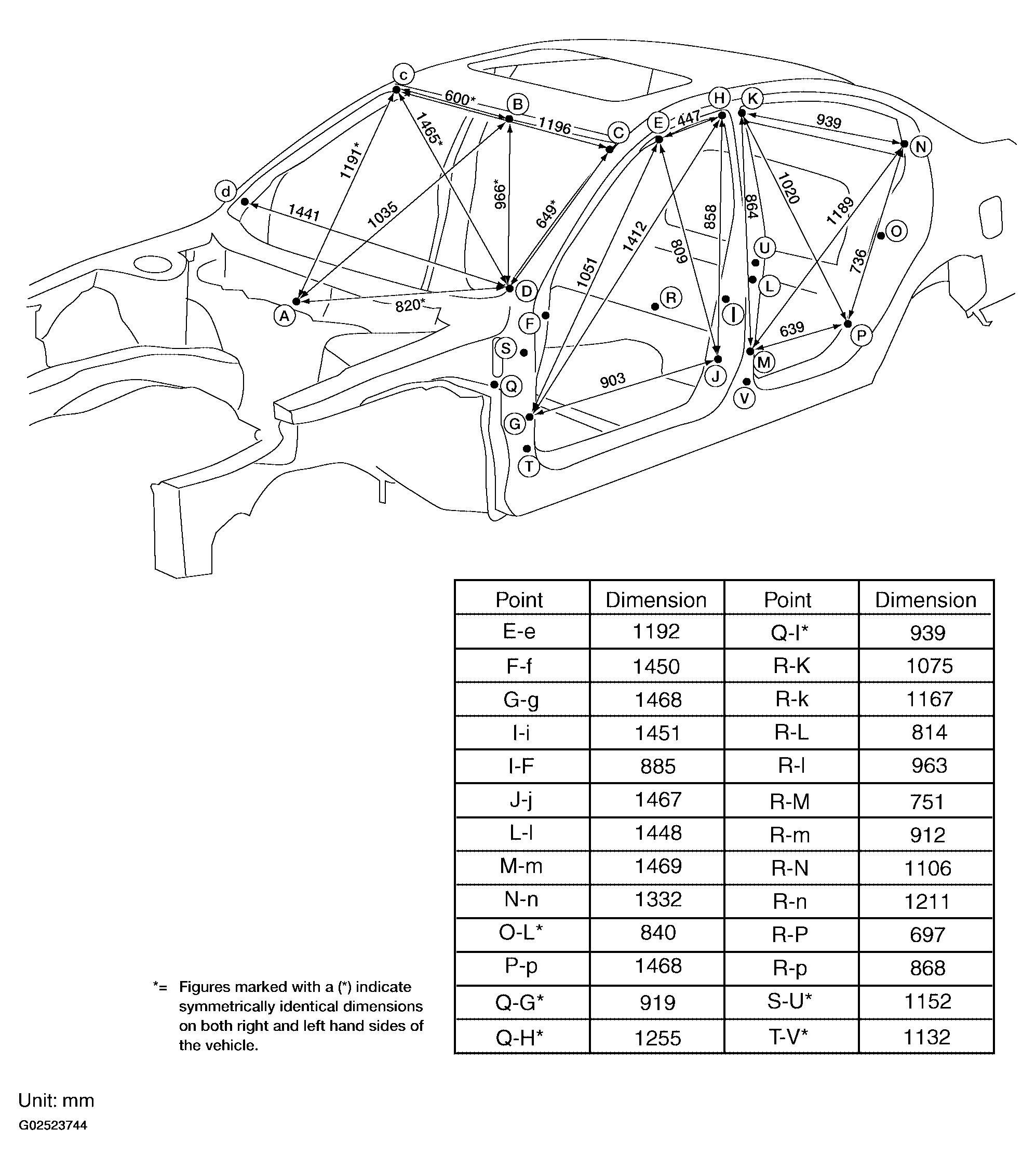

Fig 1: Measurement Of Passenger Compartment
G02523744Courtesy of NISSAN MOTOR CO., U.S.A.

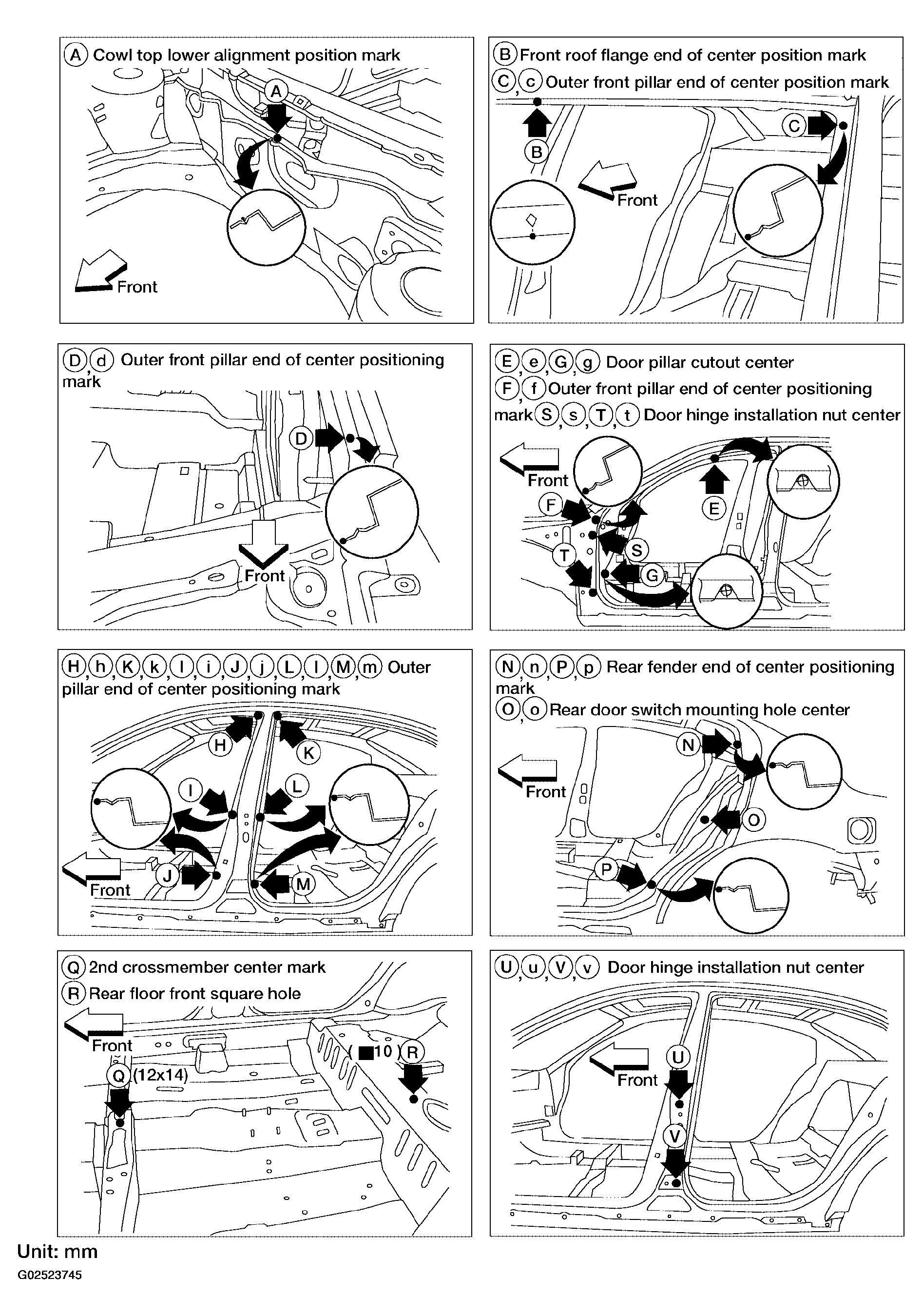

Fig 2: Identifying Measurement Points
G02523745Courtesy of NISSAN MOTOR CO., U.S.A.
