Front Pillar

Work after rear hoodledge reinforcement has been removed.

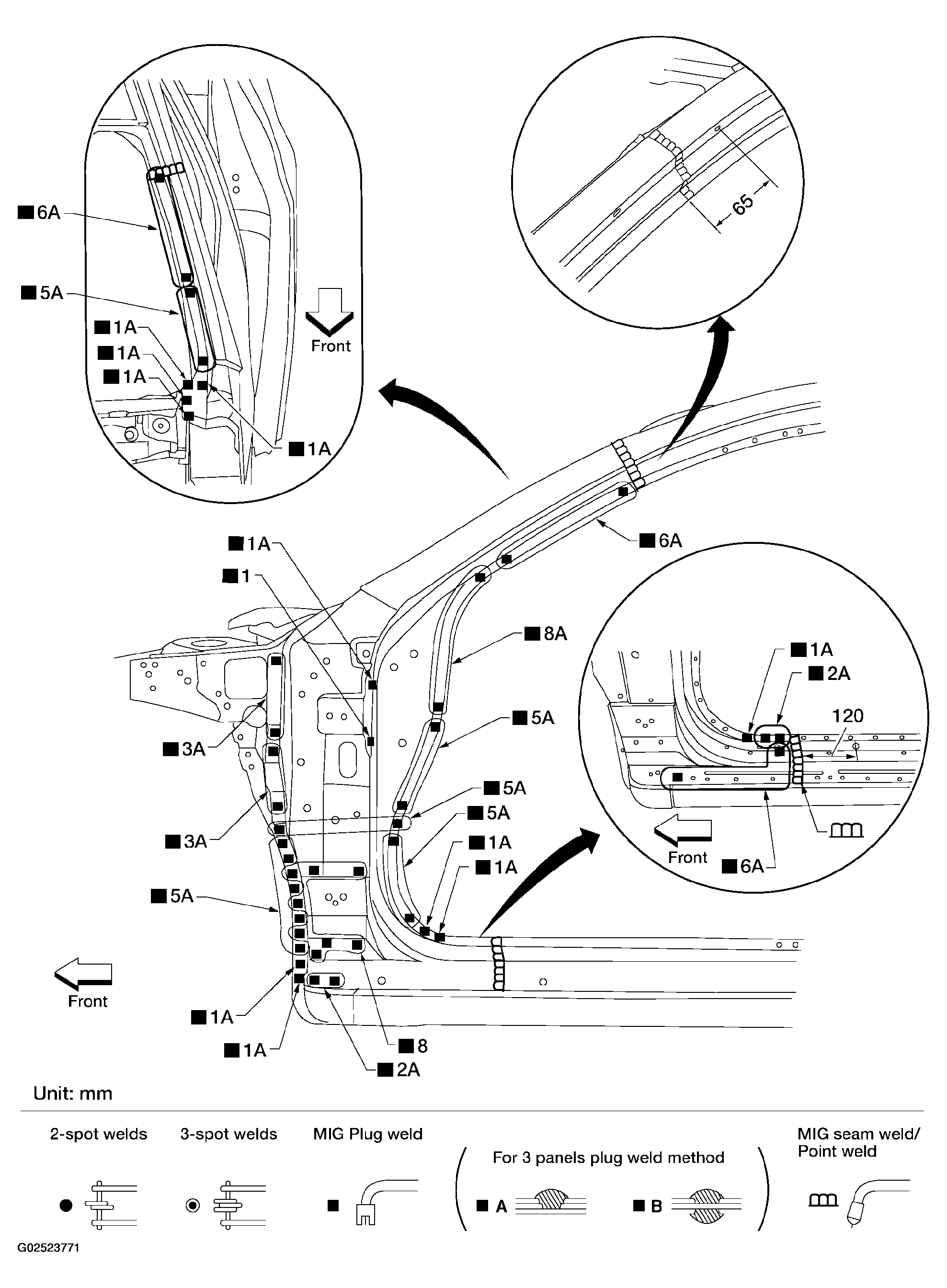

Fig 1: Identifying Front Pillar Service Joints (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

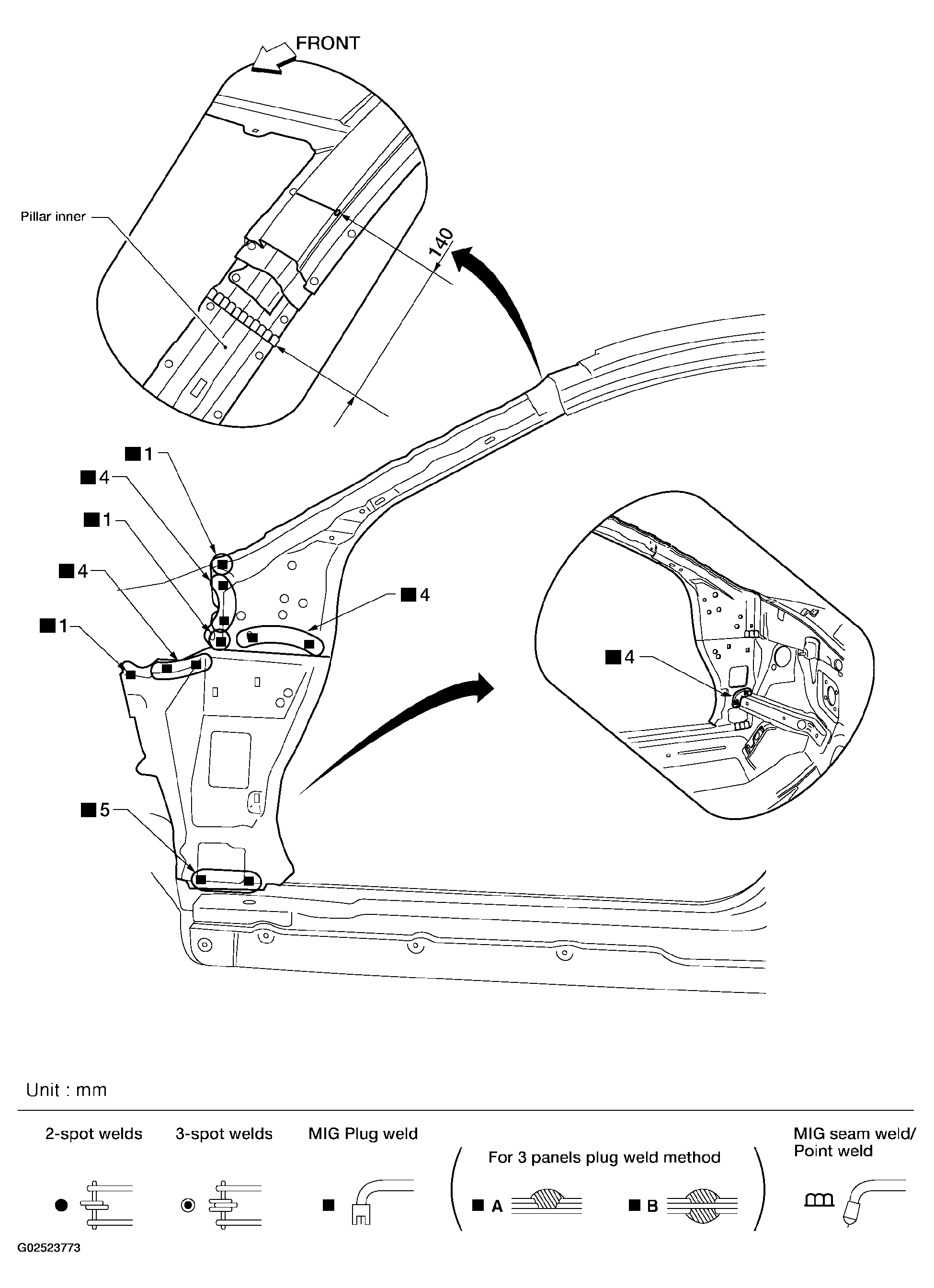

Fig 2: Identifying Front Pillar Service Joints (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

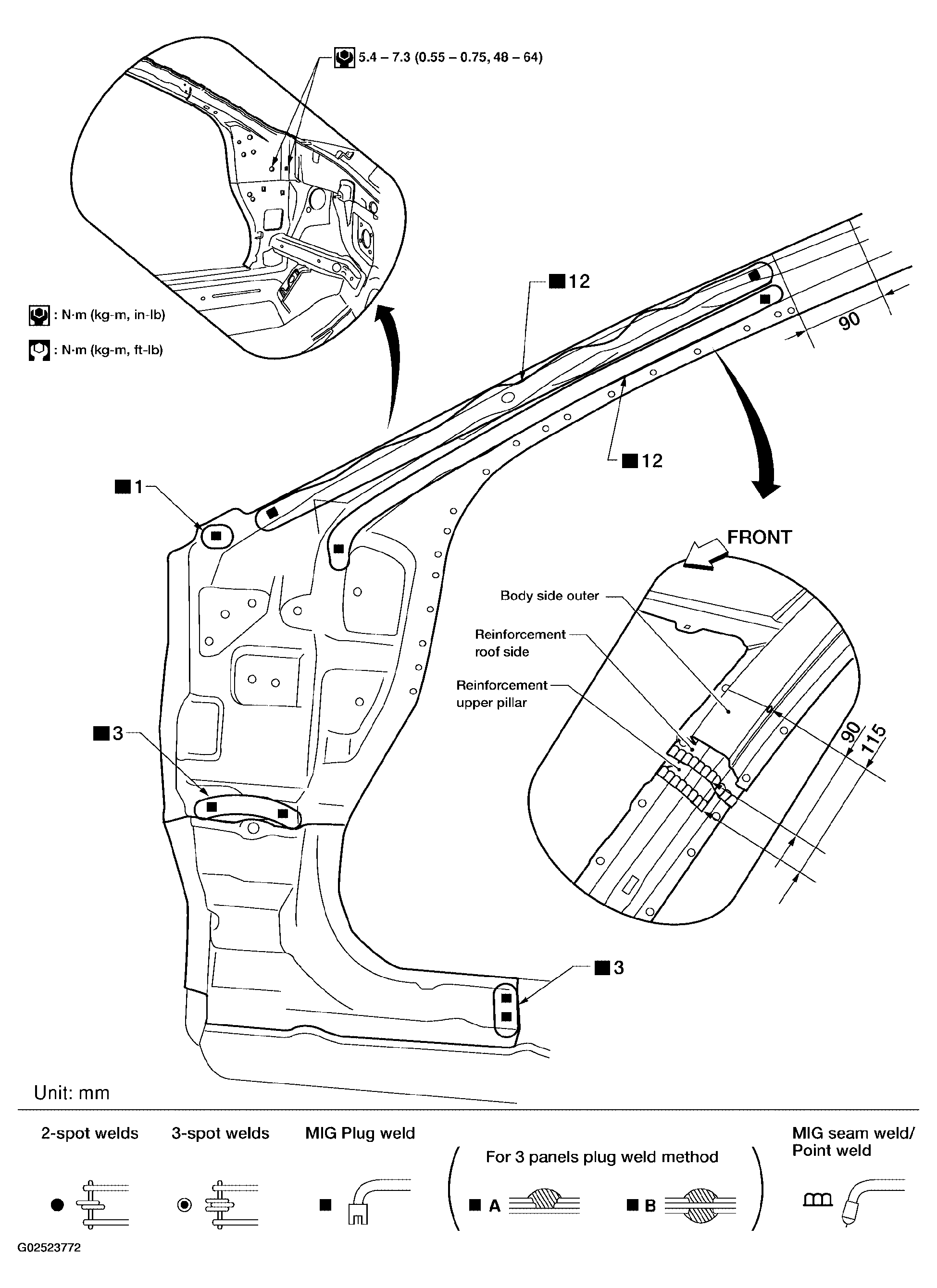

Fig 3: Identifying Front Pillar Service Joints (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
