Service Data And Specifications (SDS): Generator

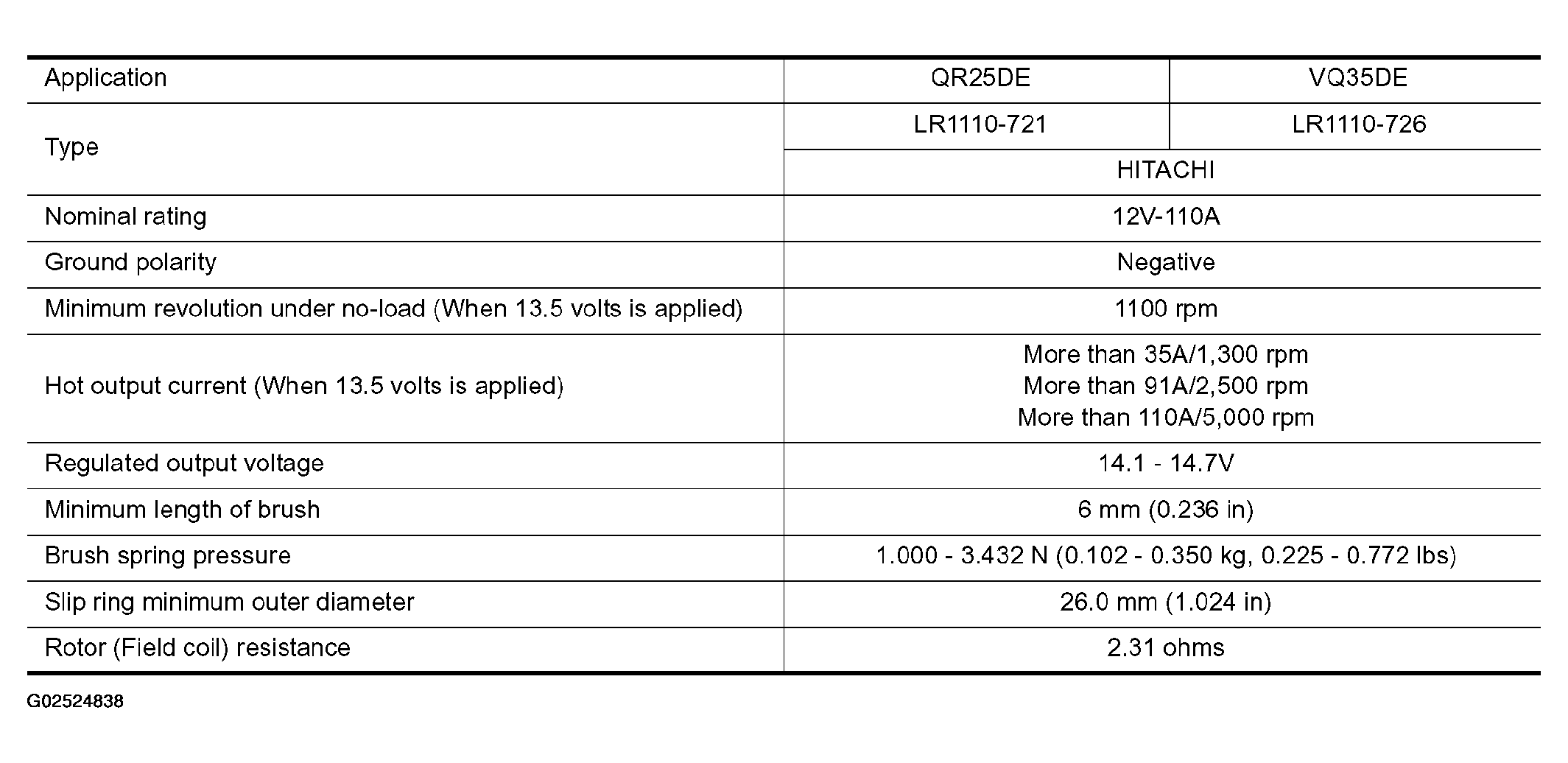

Fig 1: Generator Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
