Stop Lamp Switch

  1. Disconnect stop lamp switch harness connector.

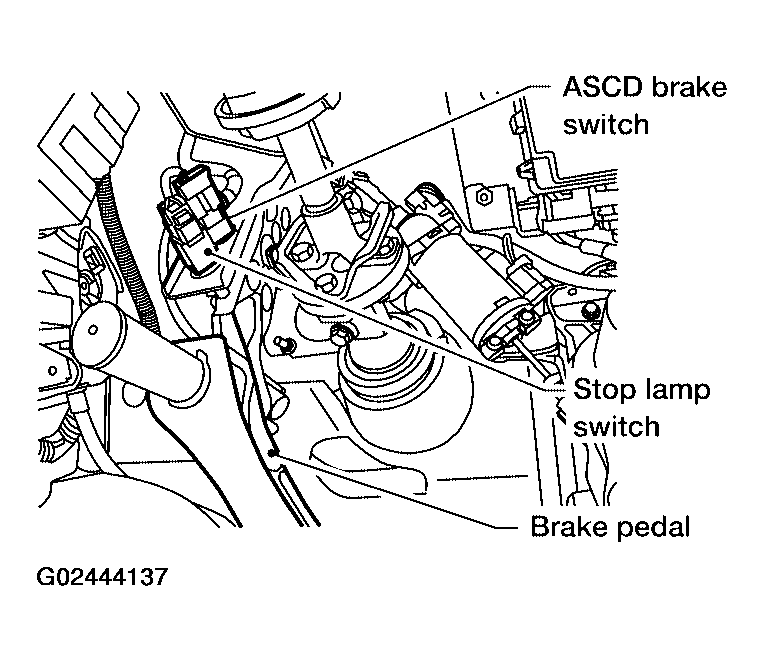

    Fig 1: Disconnecting Stop Lamp Switch Harness Connector
    G02444137Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONTINUITY

    Conditions Continuity
    Brake pedal: Fully released Should not exist.
    Brake pedal: Slightly depressed Should exist.
  3. If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL , and perform step  2 again.

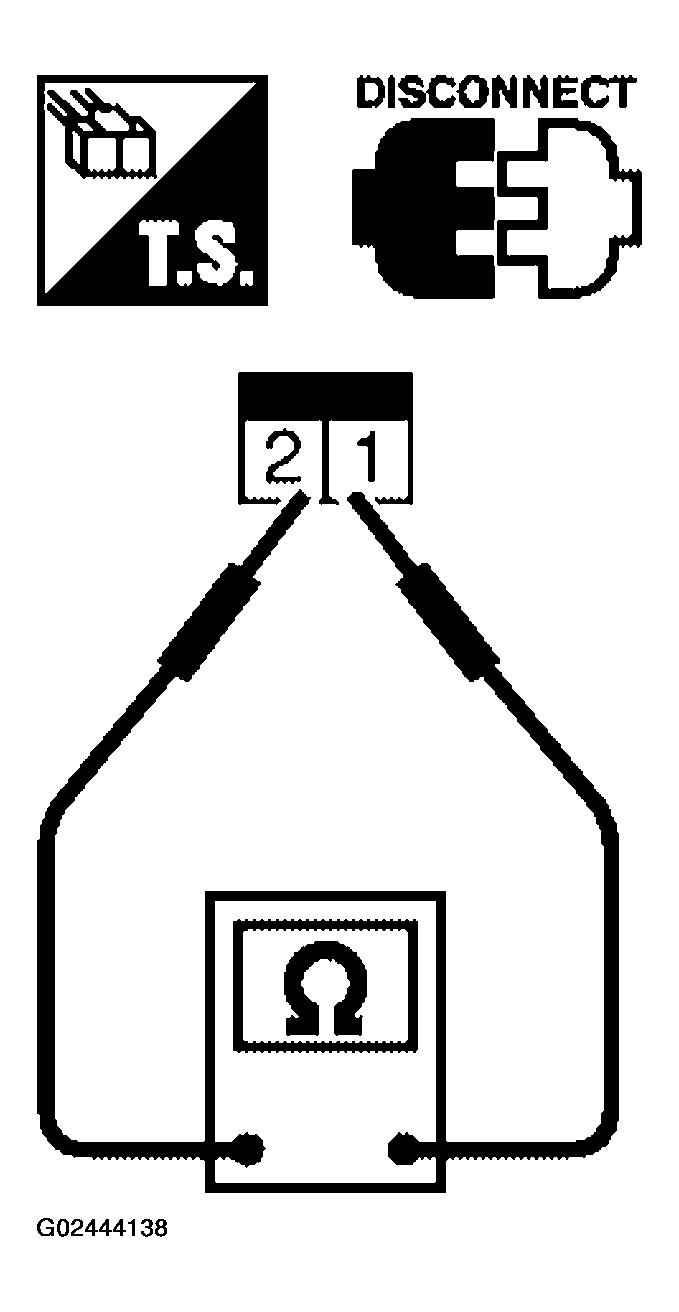

    Fig 2: Checking Continuity Between Stop Lamp Switch Terminals
    G02444138Courtesy of NISSAN MOTOR CO., U.S.A.
