Home
>>
Nissan-Datsun
>>
2005
>>
Armada LE, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Work Support Mode
>>
Work Item
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Work Item

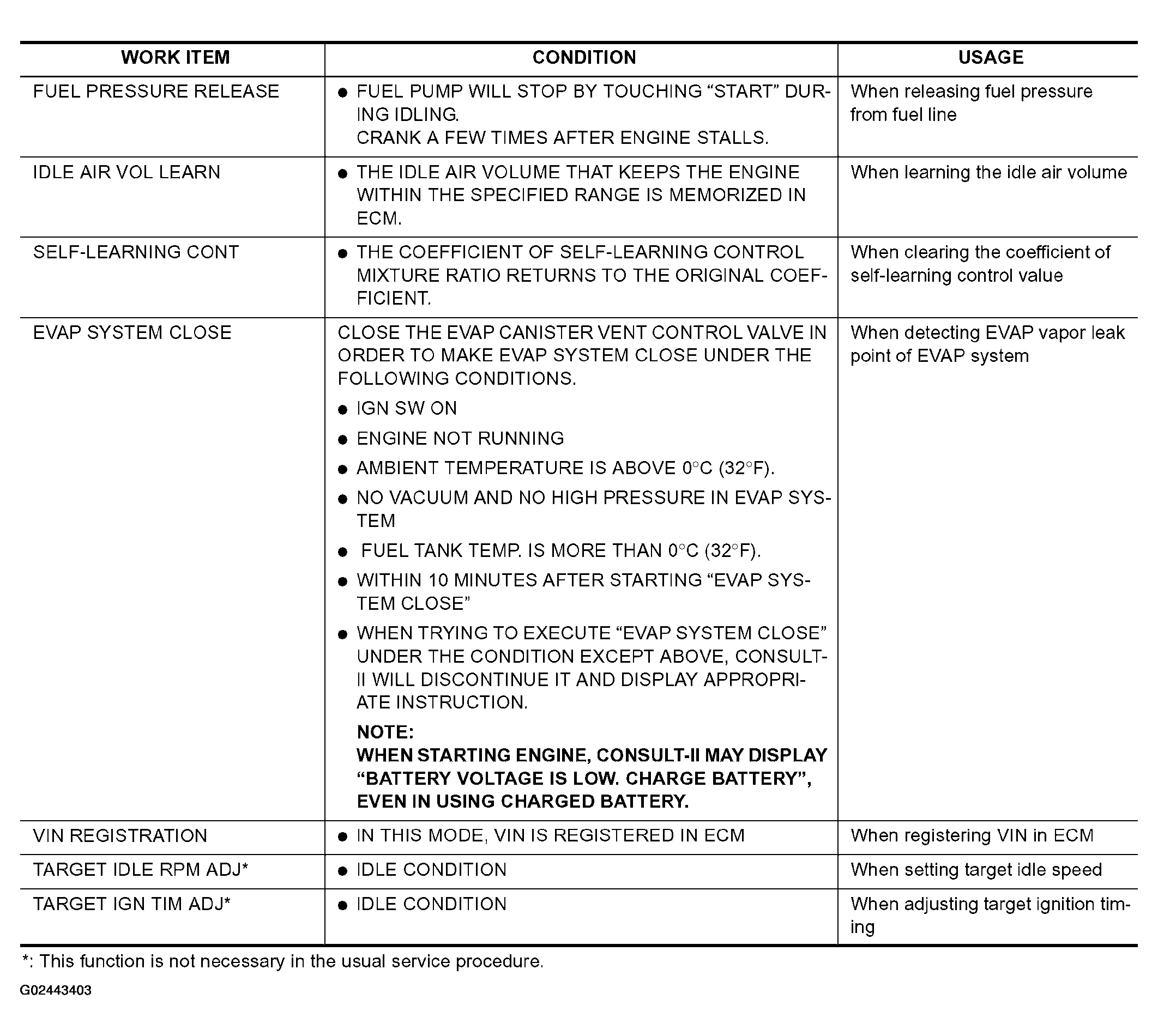

Fig 1: Troubleshooting Work Item Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
