Nissan-Datsun
>>
2005
>>
Maxima SE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Bank 2

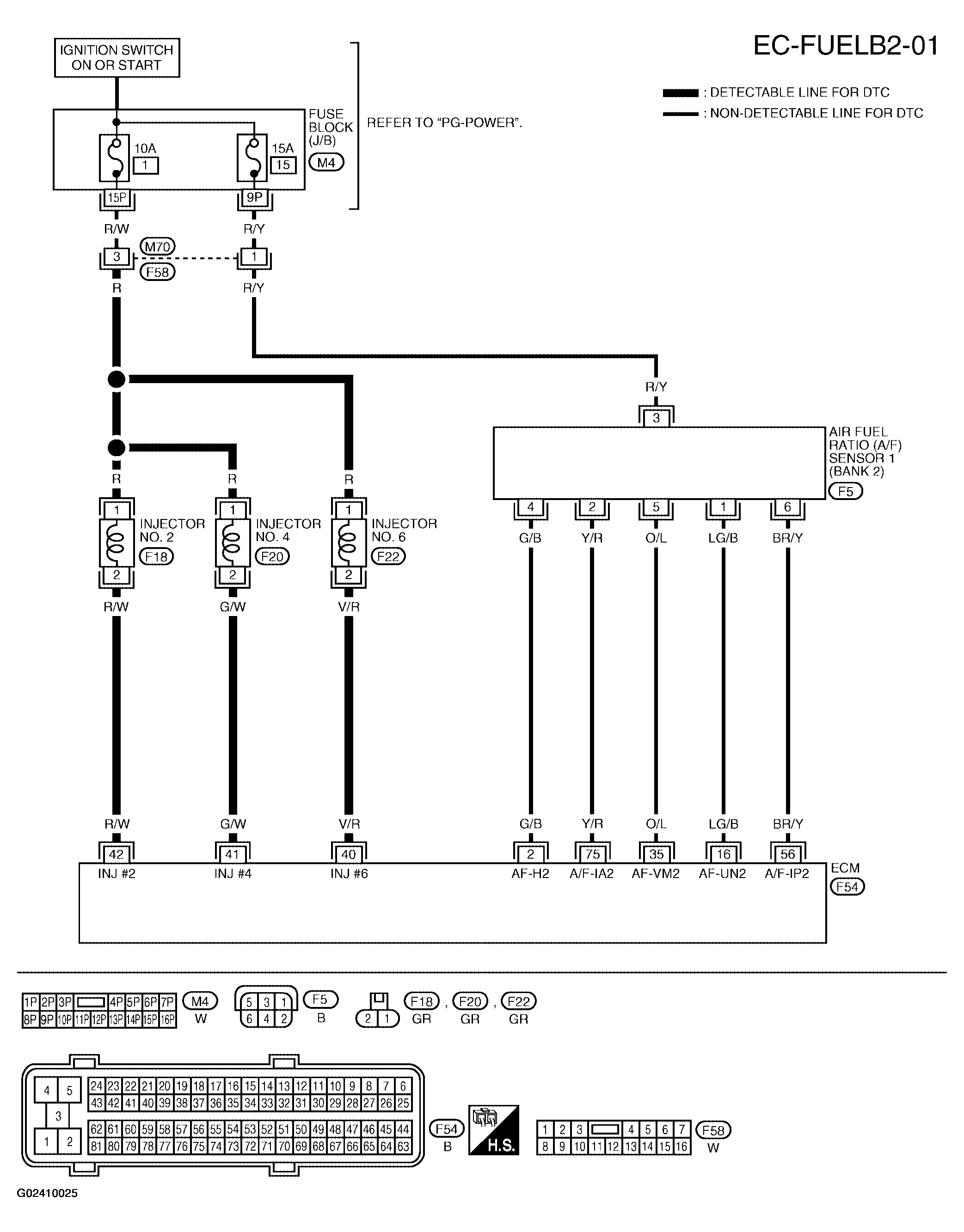

Fig 1: Wiring Diagram (EC-FUELB2-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
