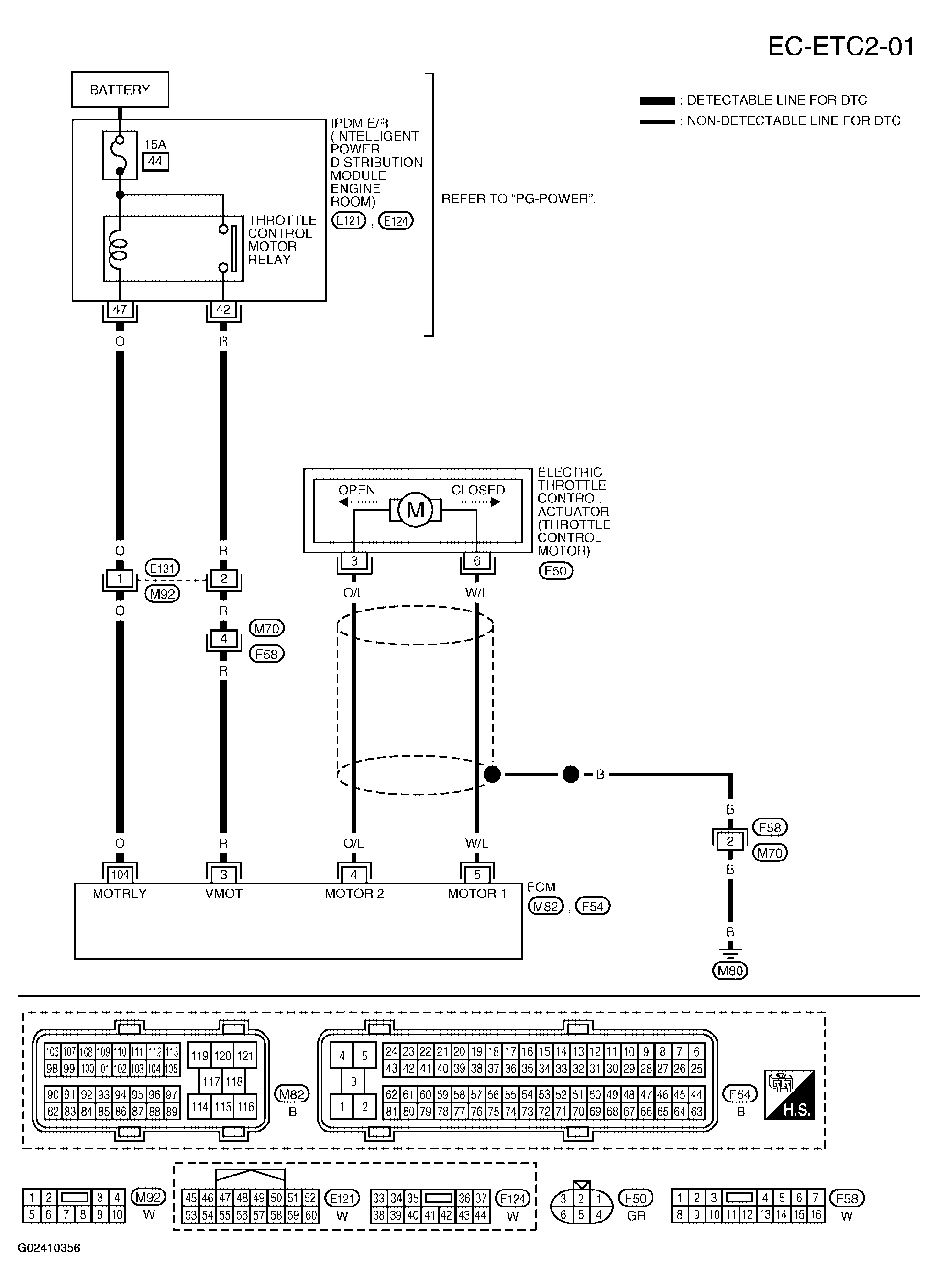

DTC P1124, P1126: Throttle Control Motor Relay: Wiring Diagram
For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ECM TERMINAL AND GROUND SPECIFICATION DATA AND REFERENCE VALUE
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 3 | R | Throttle control motor relay power supply | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) |
| 104 | O | Throttle control motor relay | [Ignition switch: OFF] | BATTERY VOLTAGE (11 -14V) |
| 104 | O | Throttle control motor relay | [Ignition switch: ON] | 0 - 1.0V |
