Function Of Clutch And Brake

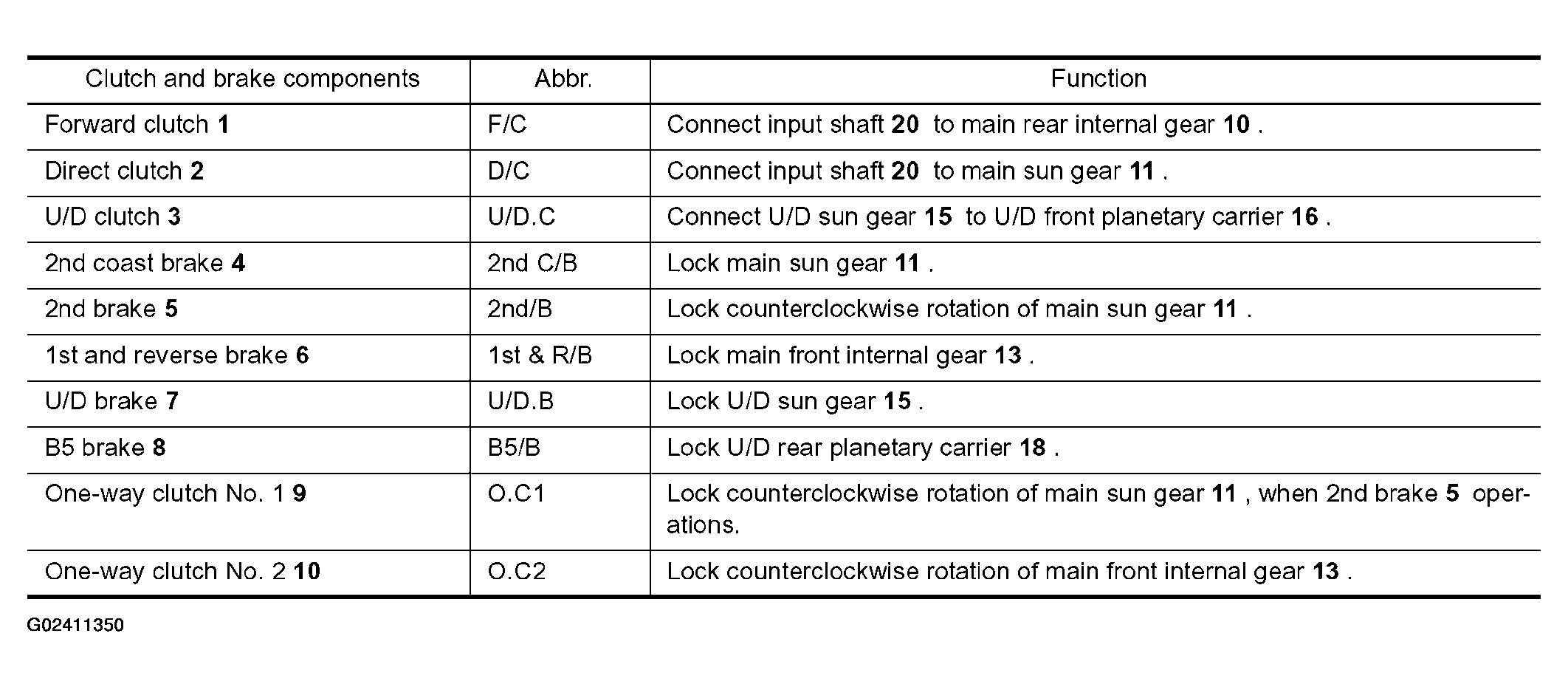

Fig 1: Clutch & Brake Specification Chart

G02411350

Courtesy of NISSAN MOTOR CO., U.S.A.
