Revolution Sensor Replacement

  1. Remove intake air duct. Refer to REMOVAL .
  2. Disconnect electrical connector.
  3. Remove revolution sensor from A/T.
  4. Reinstall any part removed.
    NOTE:
    • Do not reuse seal bolt.

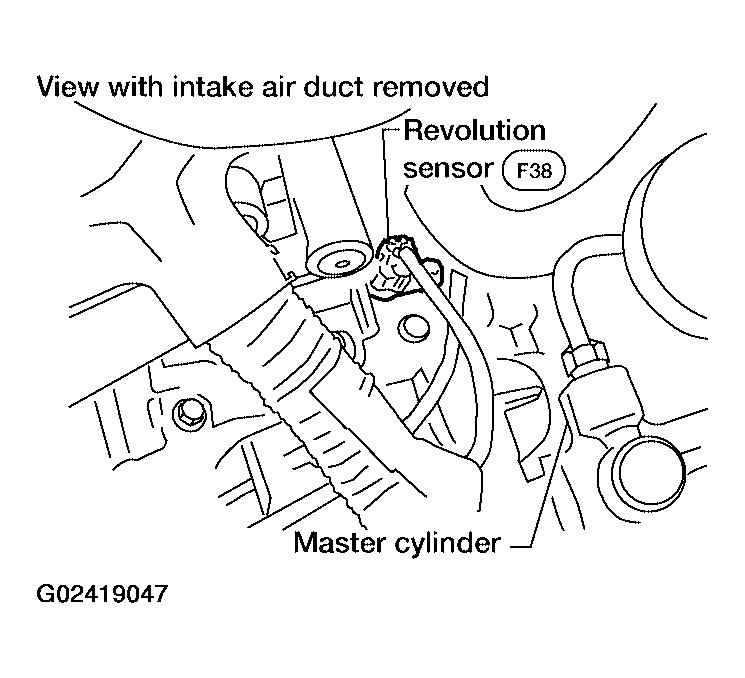

      Fig 1: Removing Revolution Sensor From A/T
      G02419047Courtesy of NISSAN MOTOR CO., U.S.A.
