DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0171, P0174: Fuel Injection System Function: Wiring Diagram

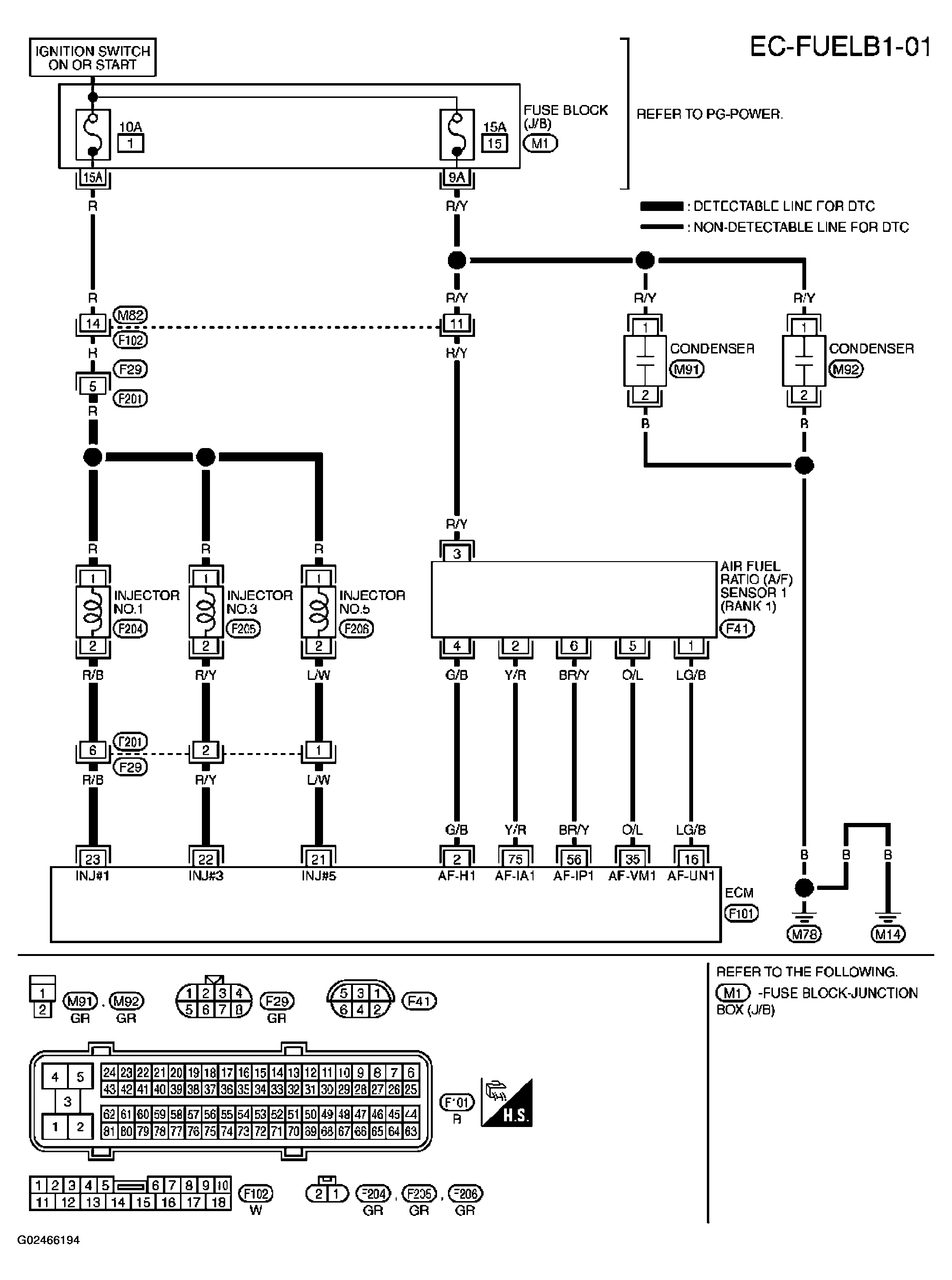

Fig 1: Wiring Diagram (EC-FUELB1-01)
Courtesy of NISSAN MOTOR CO., U.S.A.

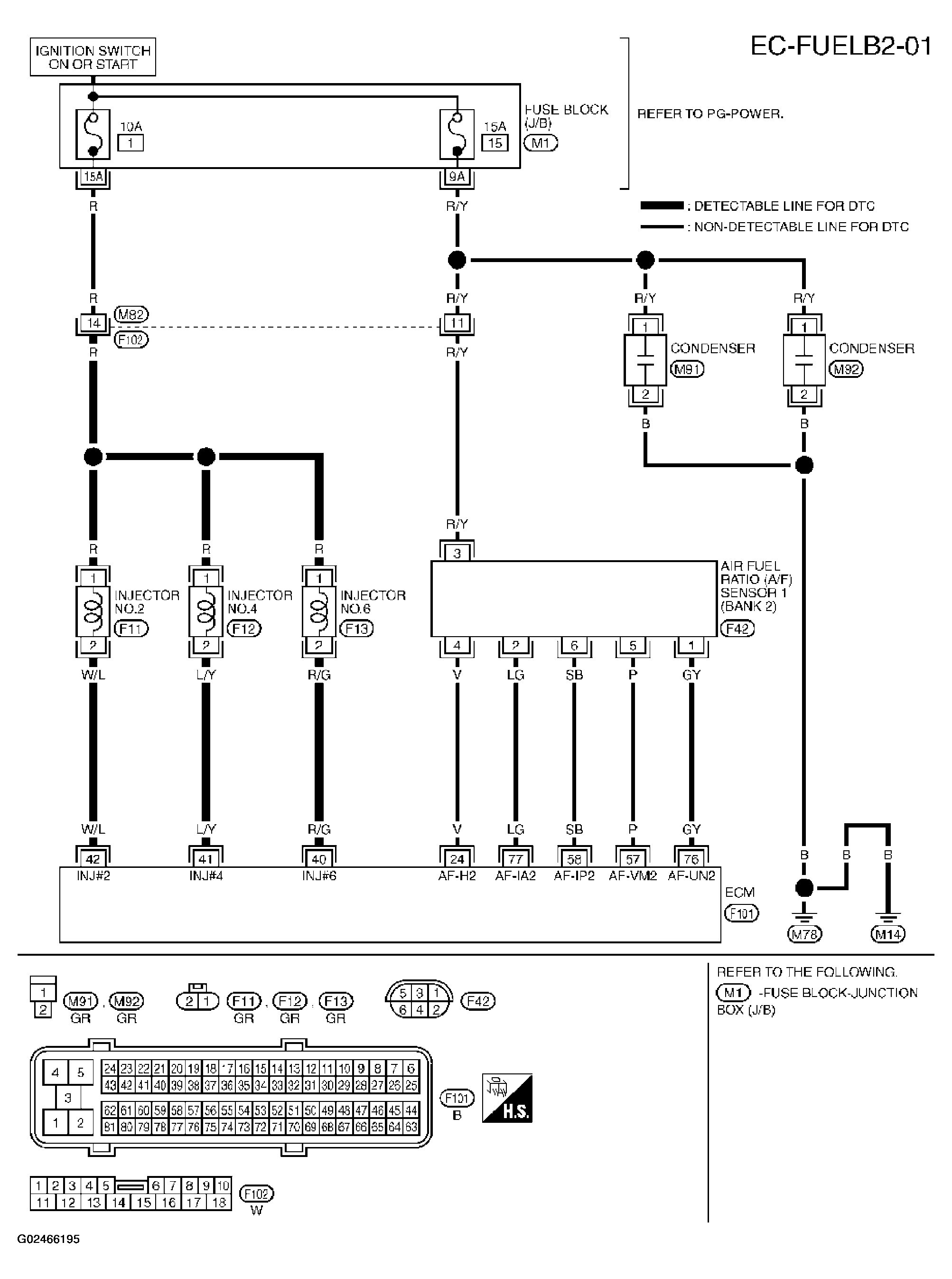

Fig 2: Wiring Diagram (EC-FUELB2-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
