ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

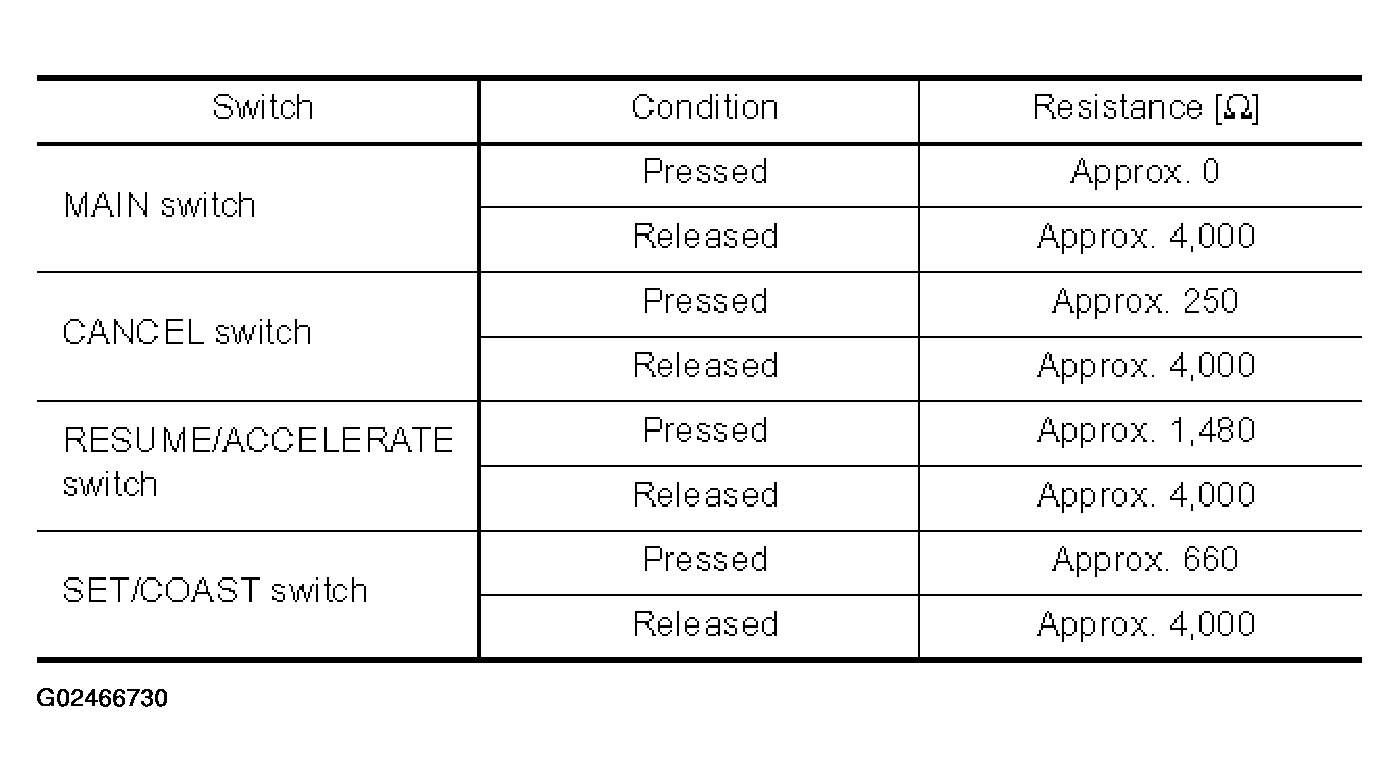

Fig 1: Switch Resistance Description Chart
G02466730Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals
G02466731Courtesy of NISSAN MOTOR CO., U.S.A.
