On Board Diagnosis Logic

NOTE:
  • If DTC P1715 is displayed with DTC U1000 or U1001 first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .
  • If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM .
  • If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335. Refer to DTC P0335 CKP SENSOR (POS) .
  • If DTC P1715 is displayed with DTC P0340, P0345, first perform the trouble diagnosis for DTC P0340, P0345. Refer to DTC P0340, P0345 CMP SENSOR (PHASE) .

The MIL will not light up for this diagnosis.

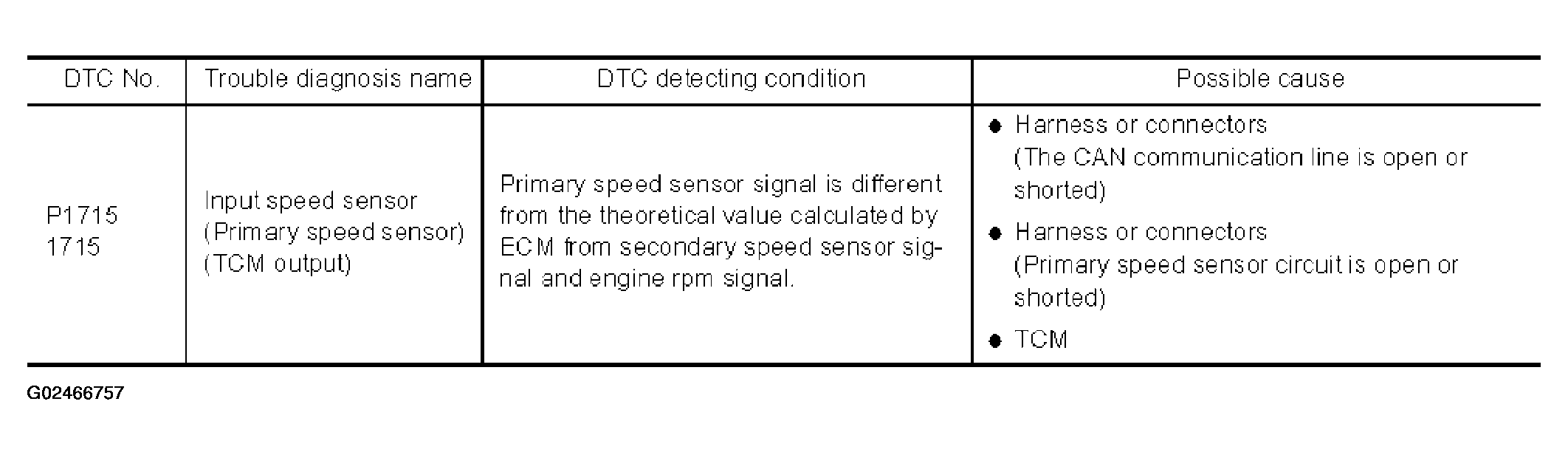

Fig 1: DTC Detecting Condition - Possible Cause Chart
G02466757Courtesy of NISSAN MOTOR CO., U.S.A.
