ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

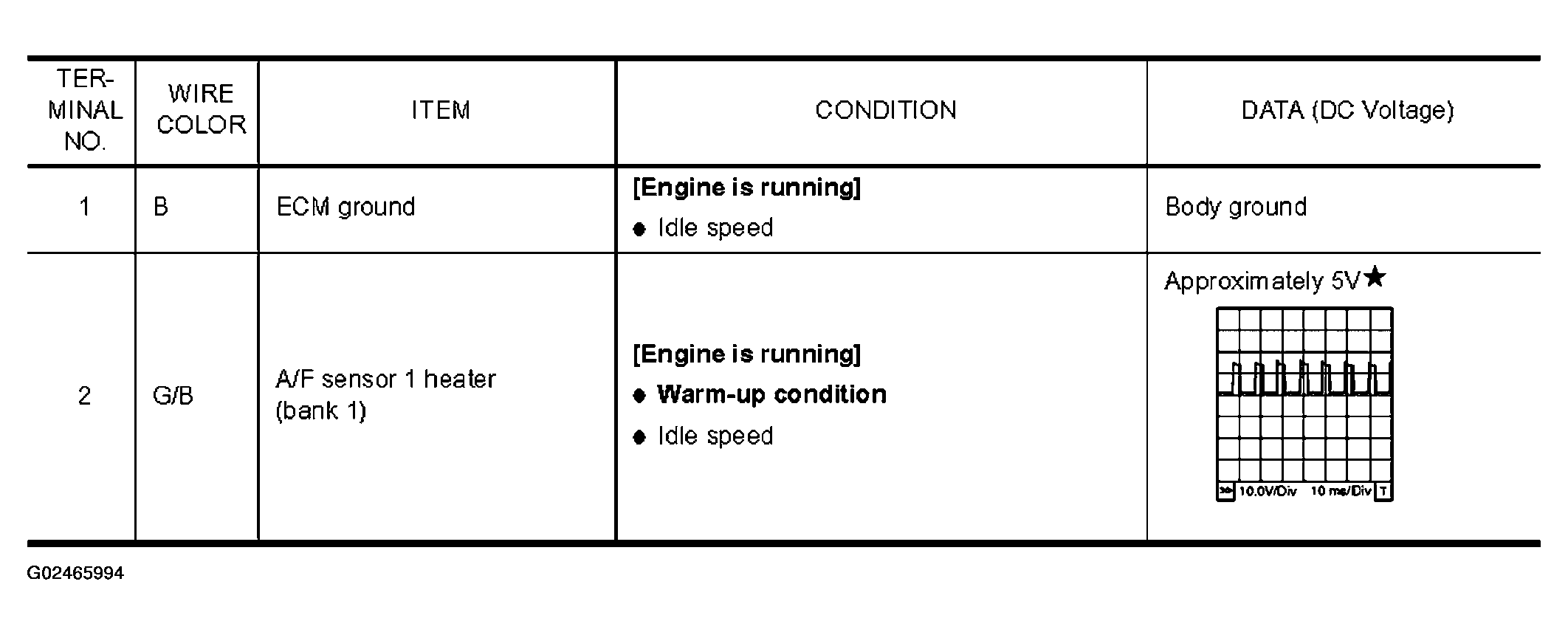

Fig 1: ECM Connector Terminal Signal Specification Chart (1 Of 10)

G02465994

Courtesy of NISSAN MOTOR CO., U.S.A.

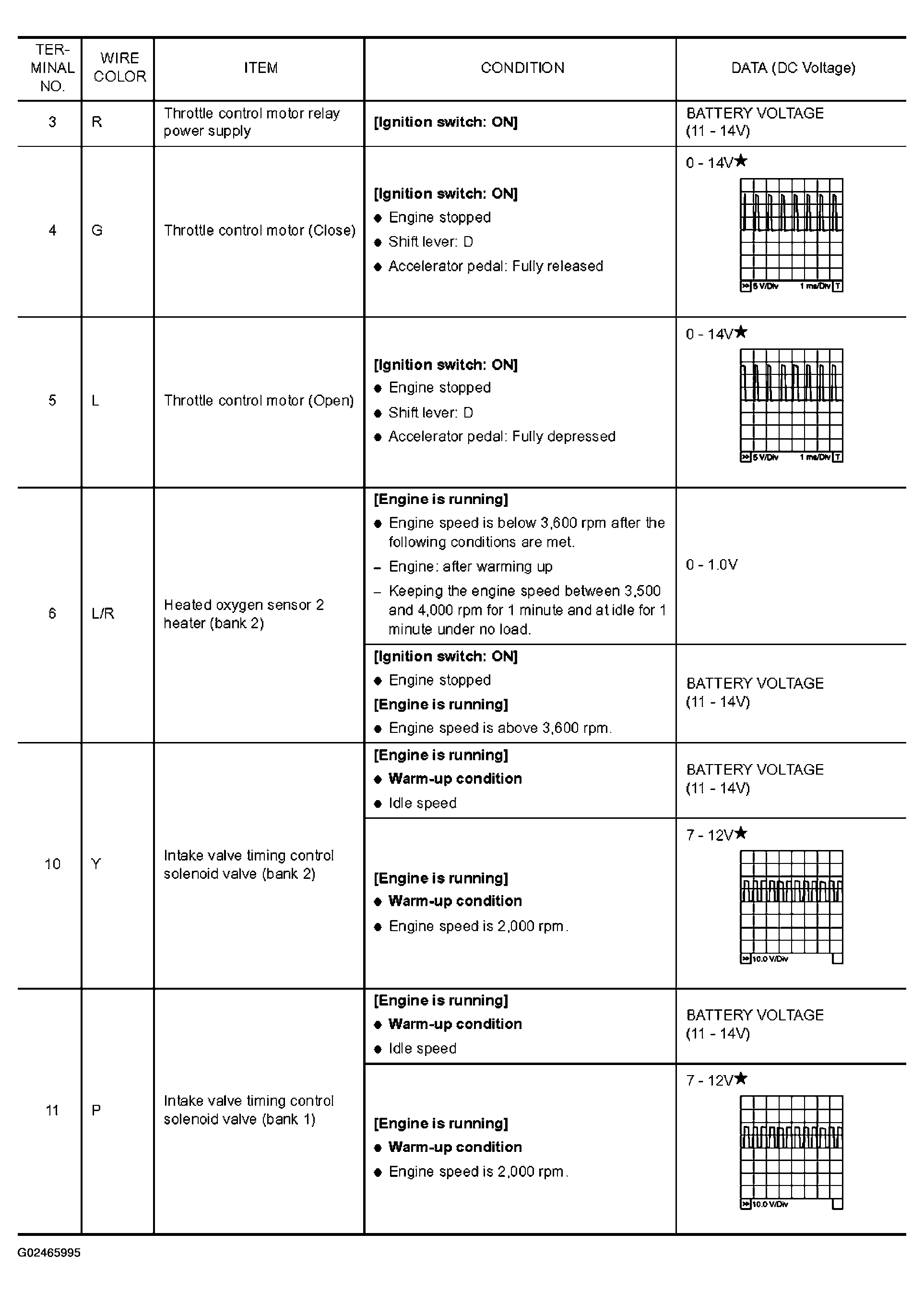

Fig 2: ECM Connector Terminal Signal Specification Chart (2 Of 10)

G02465995

Courtesy of NISSAN MOTOR CO., U.S.A.

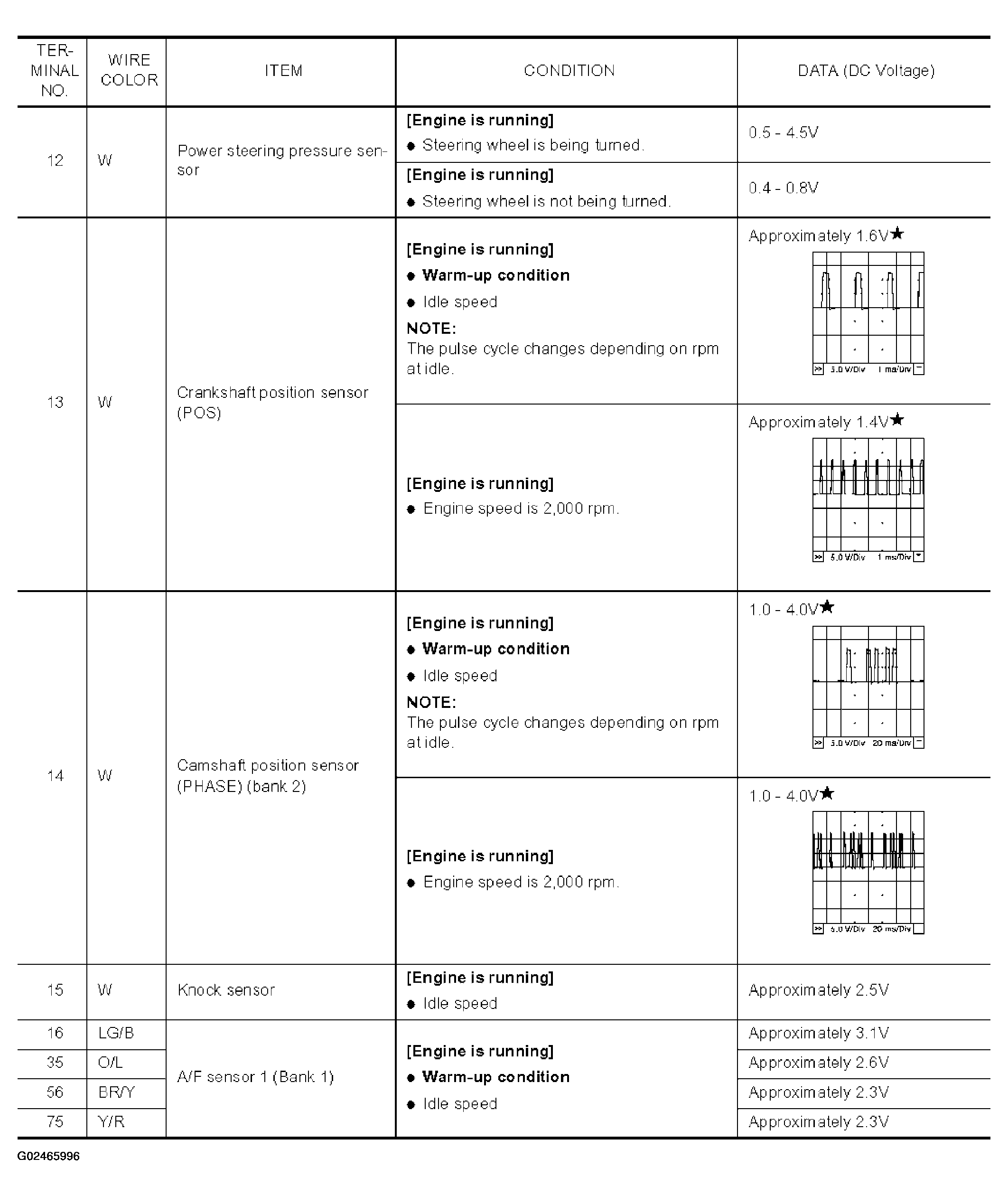

Fig 3: ECM Connector Terminal Signal Specification Chart (3 Of 10)

G02465996

Courtesy of NISSAN MOTOR CO., U.S.A.

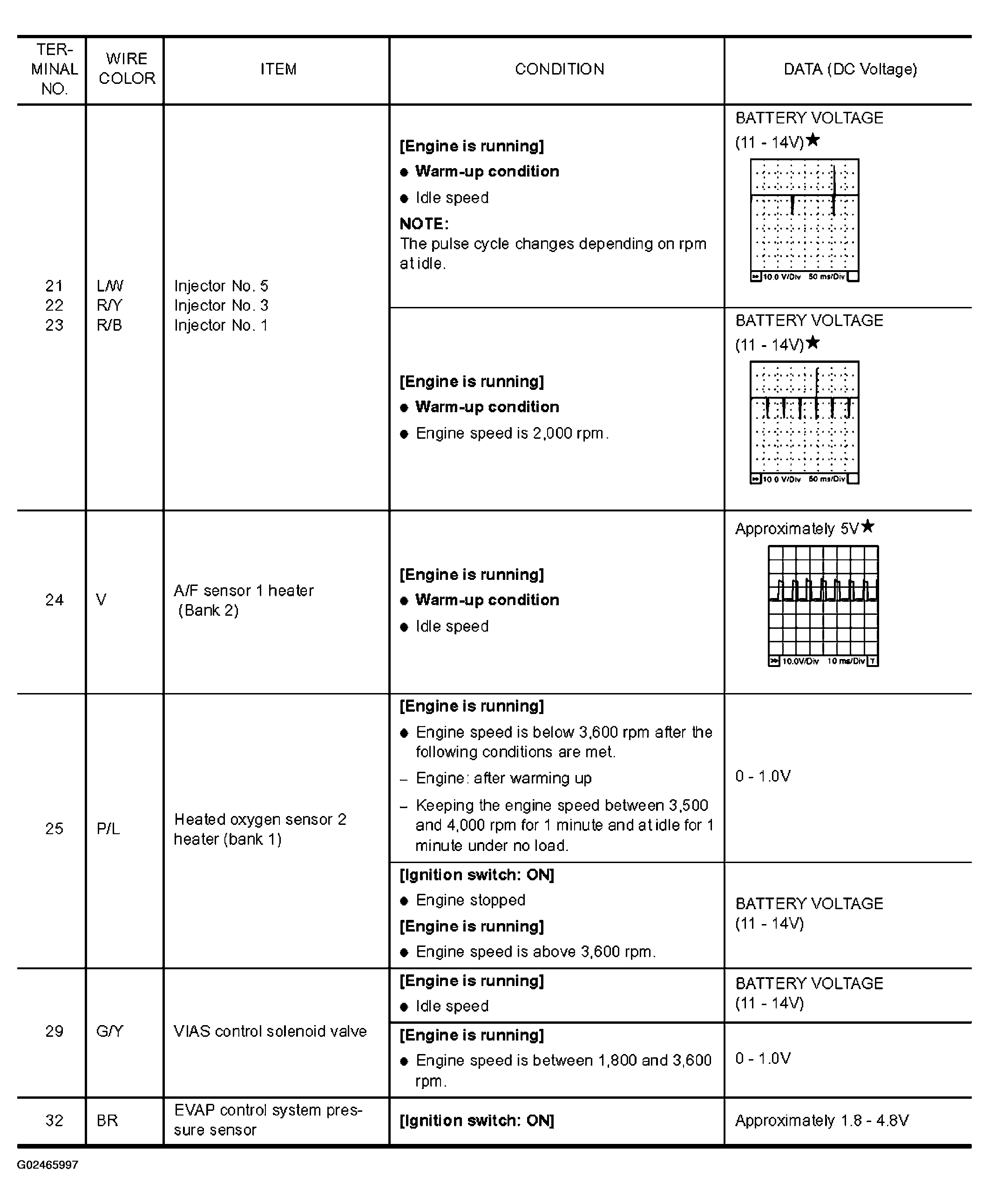

Fig 4: ECM Connector Terminal Signal Specification Chart (4 Of 10)

G02465997

Courtesy of NISSAN MOTOR CO., U.S.A.

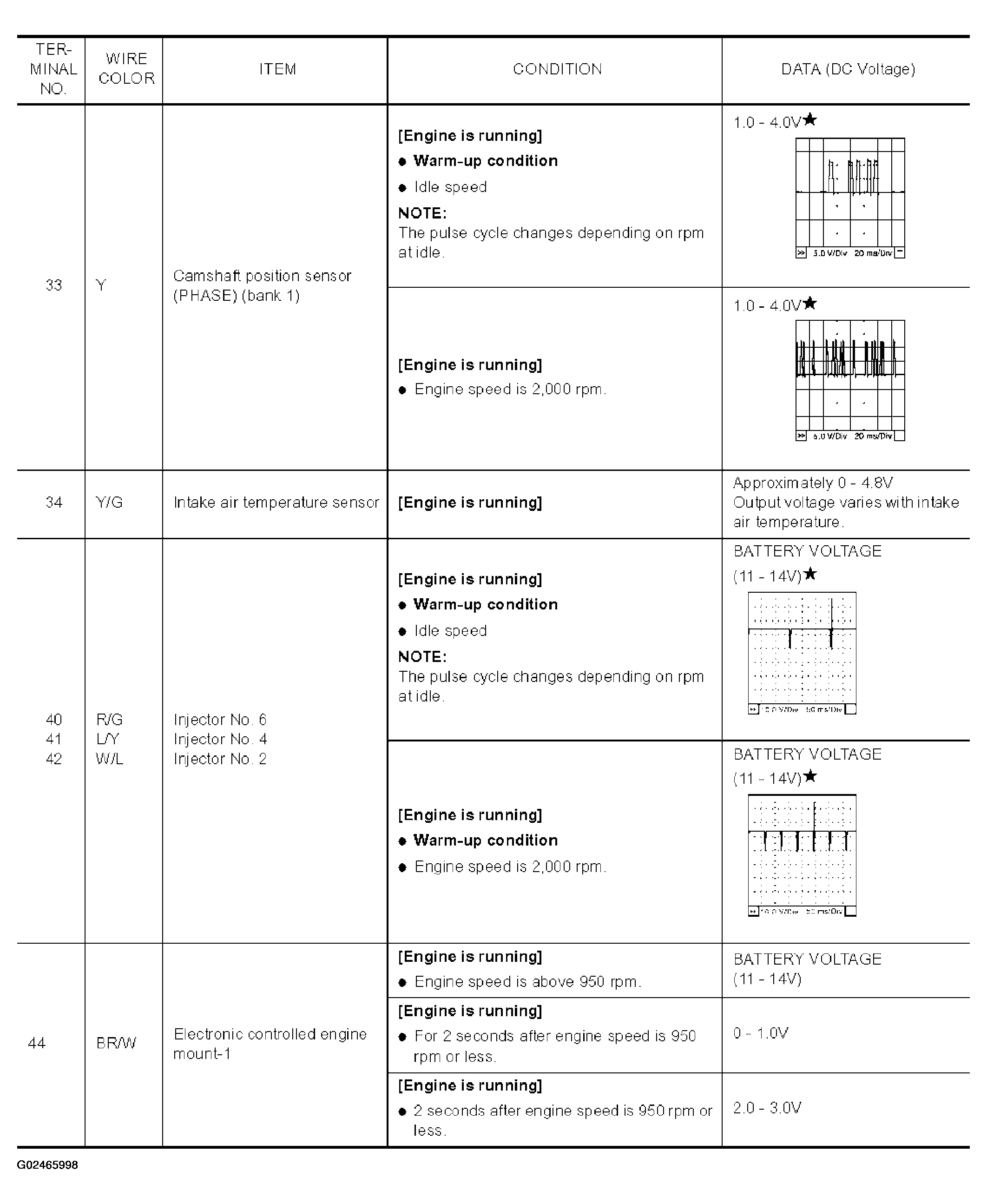

Fig 5: ECM Connector Terminal Signal Specification Chart (5 Of 10)

G02465998

Courtesy of NISSAN MOTOR CO., U.S.A.

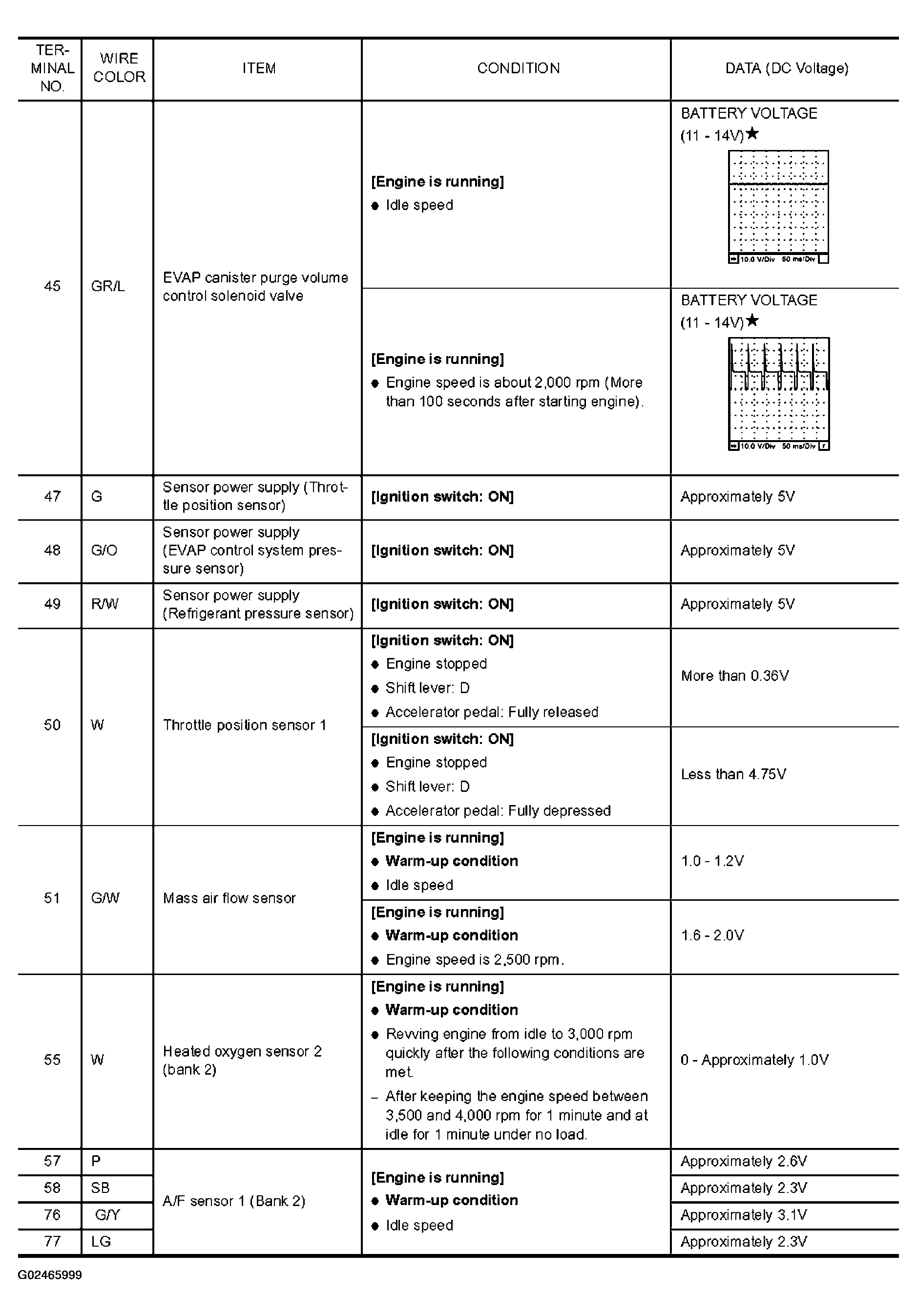

Fig 6: ECM Connector Terminal Signal Specification Chart (6 Of 10)

G02465999

Courtesy of NISSAN MOTOR CO., U.S.A.

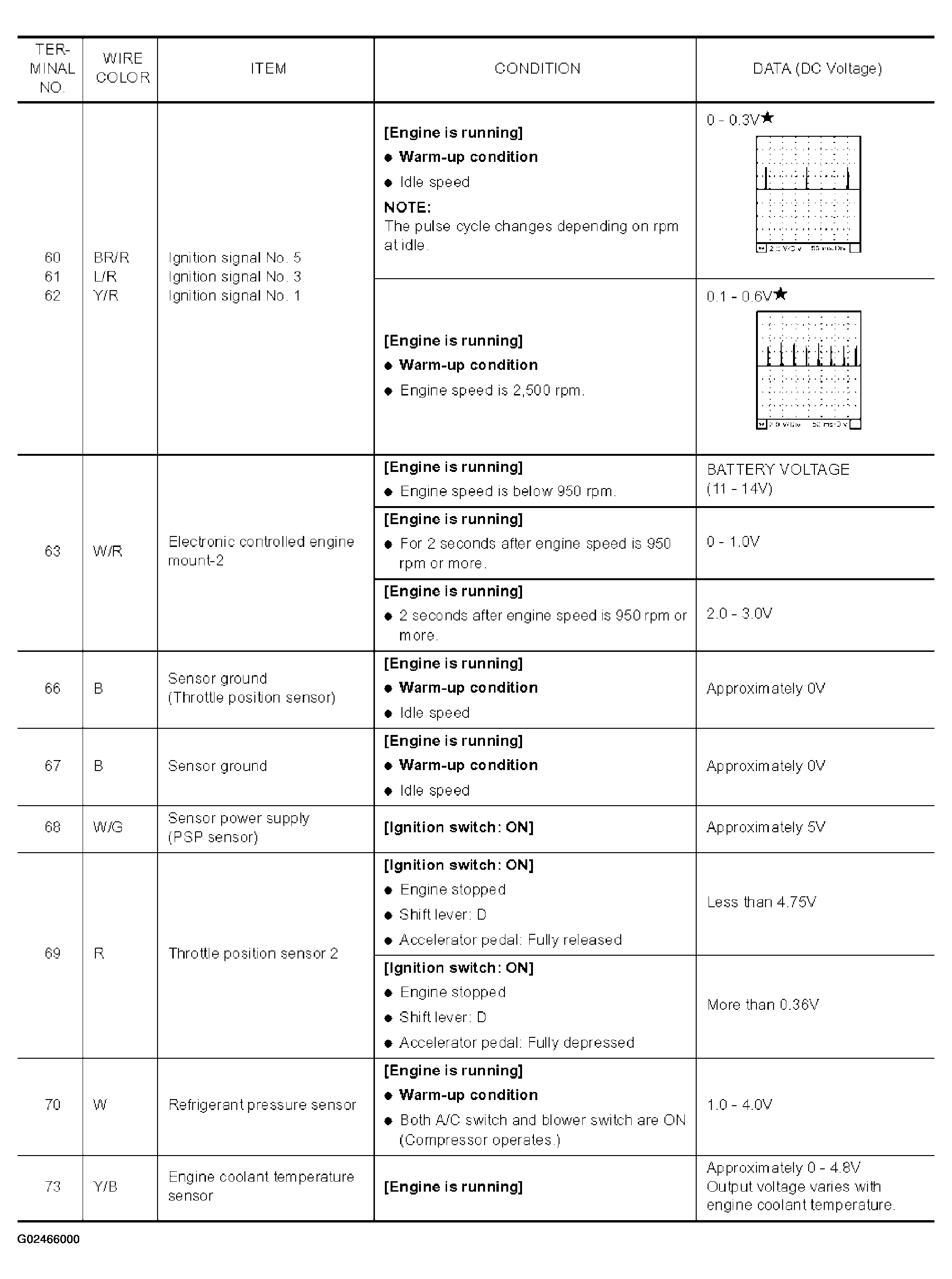

Fig 7: ECM Connector Terminal Signal Specification Chart (7 Of 10)

G02466000

Courtesy of NISSAN MOTOR CO., U.S.A.

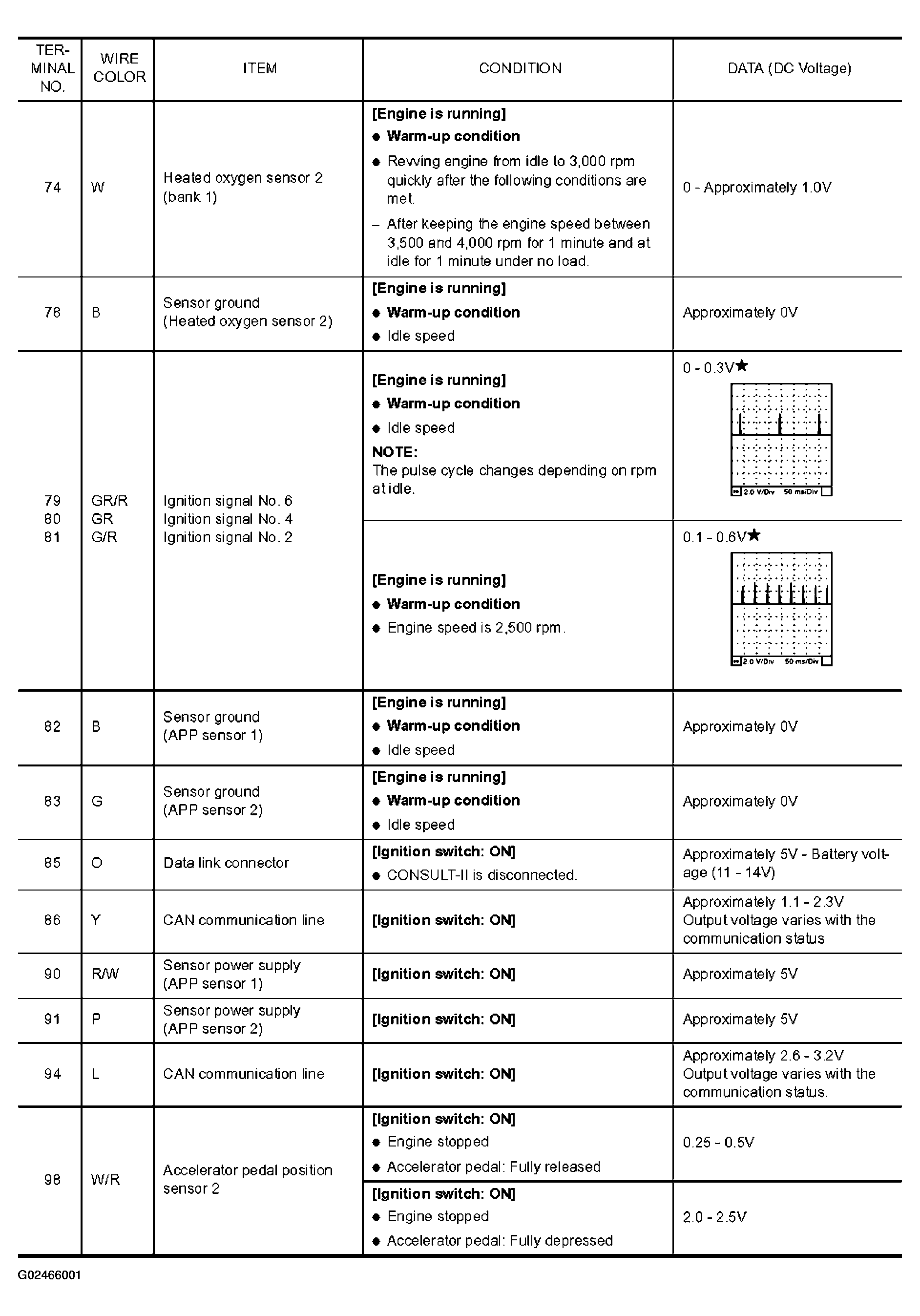

Fig 8: ECM Connector Terminal Signal Specification Chart (8 Of 10)

G02466001

Courtesy of NISSAN MOTOR CO., U.S.A.

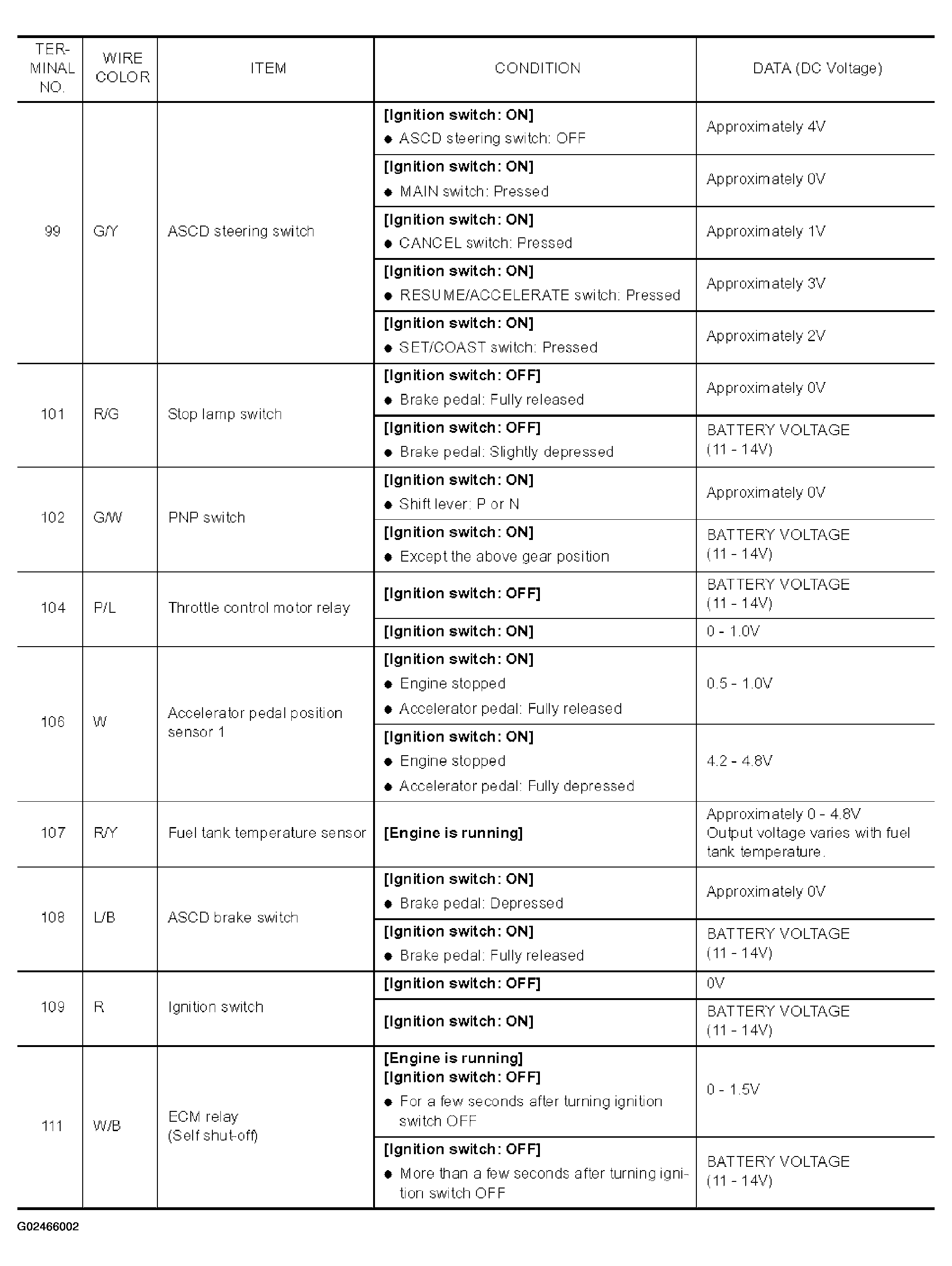

Fig 9: ECM Connector Terminal Signal Specification Chart (9 Of 10)

G02466002

Courtesy of NISSAN MOTOR CO., U.S.A.

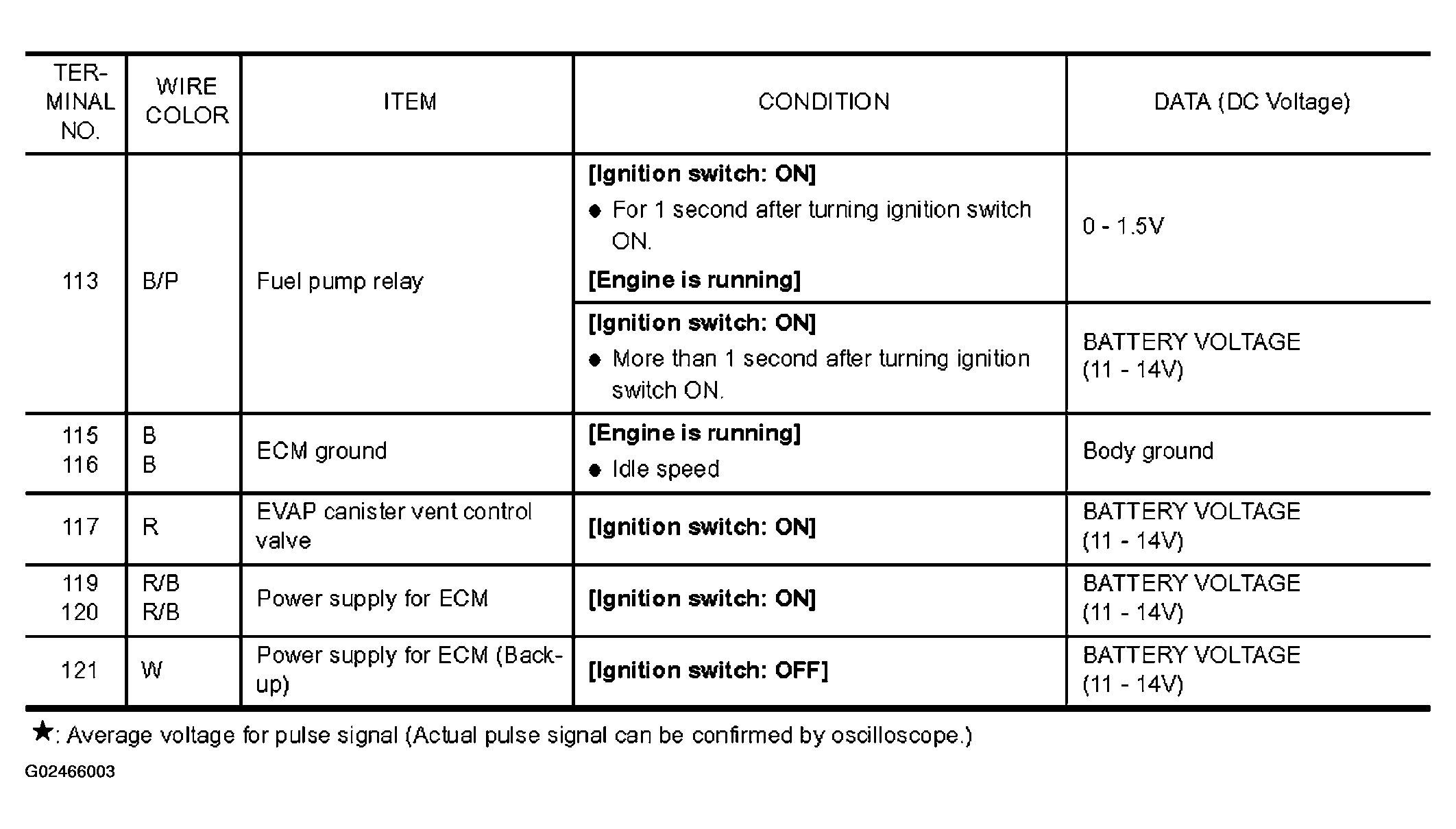

Fig 10: ECM Connector Terminal Signal Specification Chart (10 Of 10)

G02466003

Courtesy of NISSAN MOTOR CO., U.S.A.
