DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Bank 2

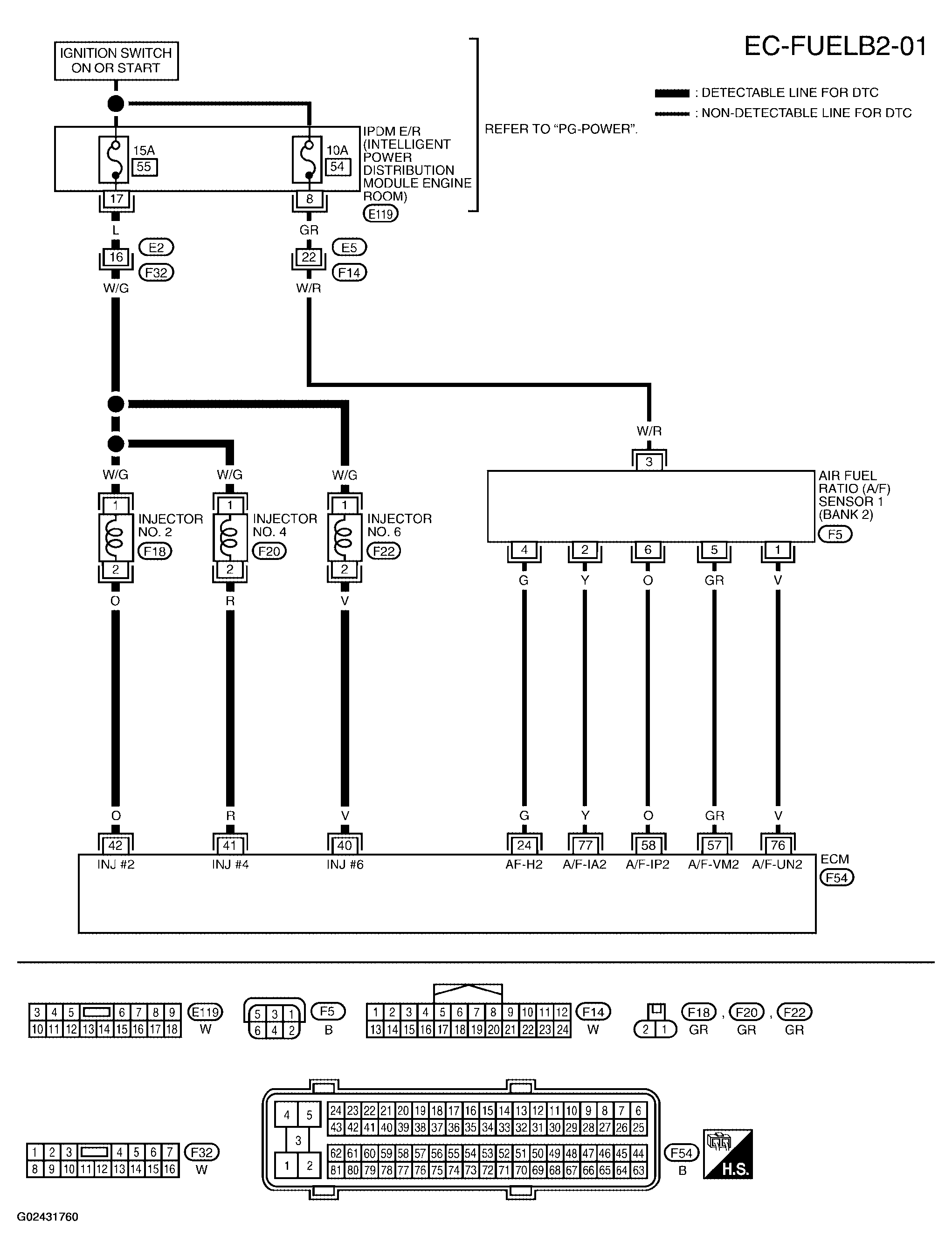

Fig 1: Wiring Diagram - Fuel Injection System, Bank 2 (EC-FUELB2-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
