Stop Lamp Switch

Disconnect stop lamp switch harness connector.

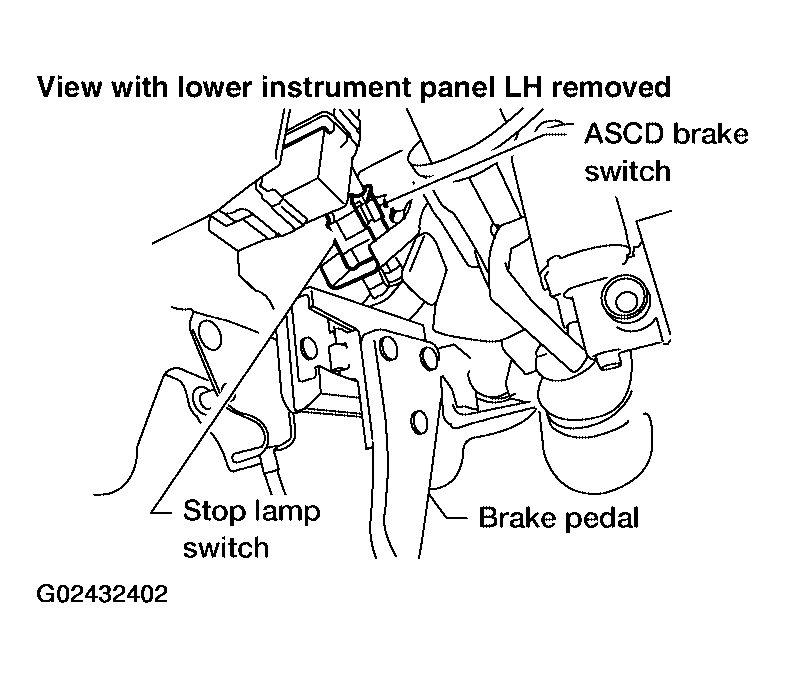

Fig 1: Identifying ASCD Brake Switch And Stop Lamp Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between stop lamp switch terminals 1 and 2 under the conditions listed in STOP LAMP SWITCH TESTING CONDITIONS AND CONTINUITY REFERENCE .

STOP LAMP SWITCH TESTING CONDITIONS AND CONTINUITY REFERENCE

Conditions	Continuity
Brake pedal fully released	Should not exist.
Brake pedal slightly depressed	Should exist.

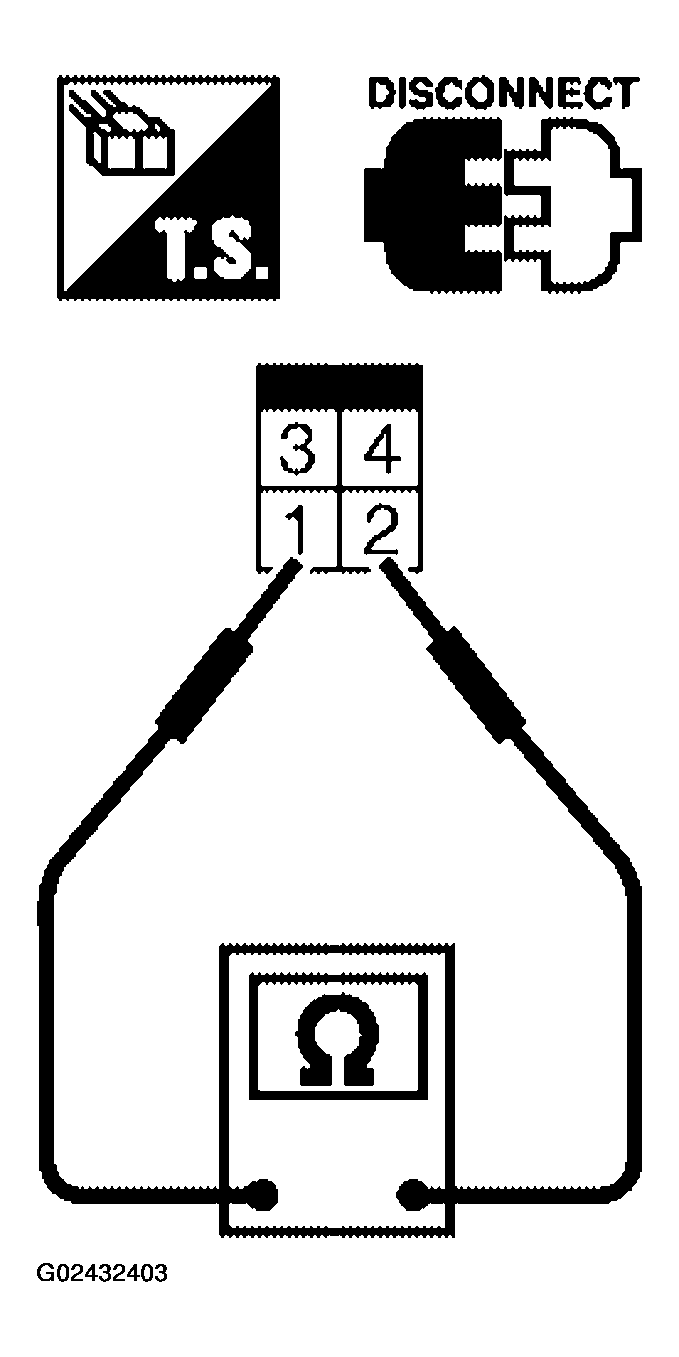

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL , and perform step 2 again.
