Summary Chart

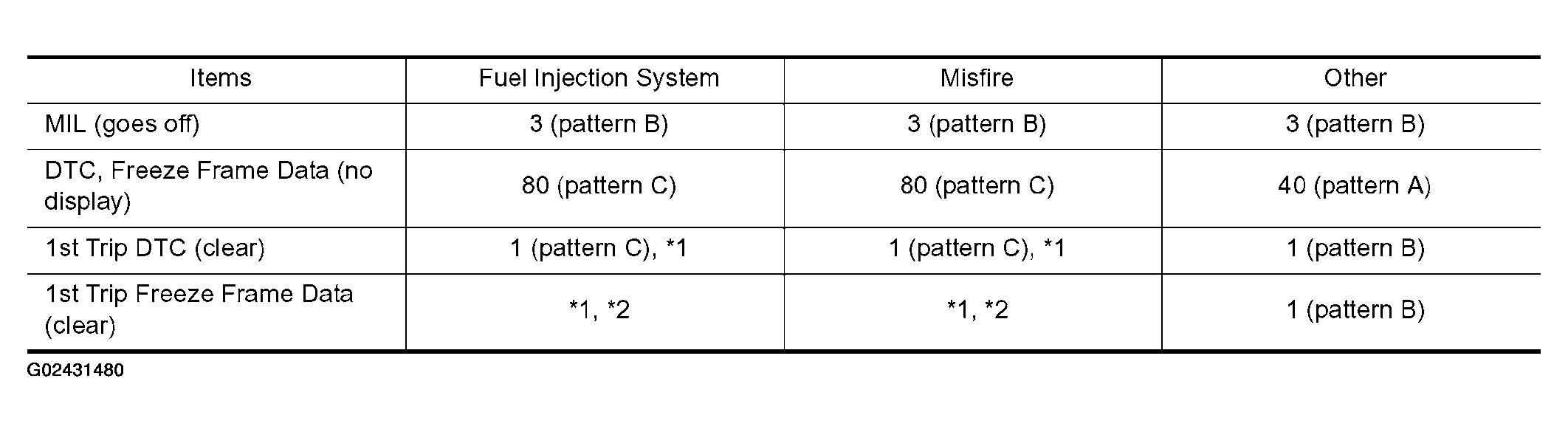

Fig 1: On-Board Diagnostic Summary Chart

G02431480

Courtesy of NISSAN MOTOR CO., U.S.A.

For details about patterns B and C under "Fuel Injection System" and "Misfire", see EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE (EXHAUST QUALITY DETERIORATION)", "FUEL INJECTION SYSTEM" .

For details about patterns A and B under Other, see EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR "MISFIRE (EXHAUST QUALITY DETERIORATION)", "FUEL INJECTION SYSTEM" .

NOTE: The following 2 footnotes refer to items in Fig 1.

^* 1: Clear timing is at the moment OK is detected.

^* 2: Clear timing is when the same malfunction is detected in the 2nd trip.
