Test Item

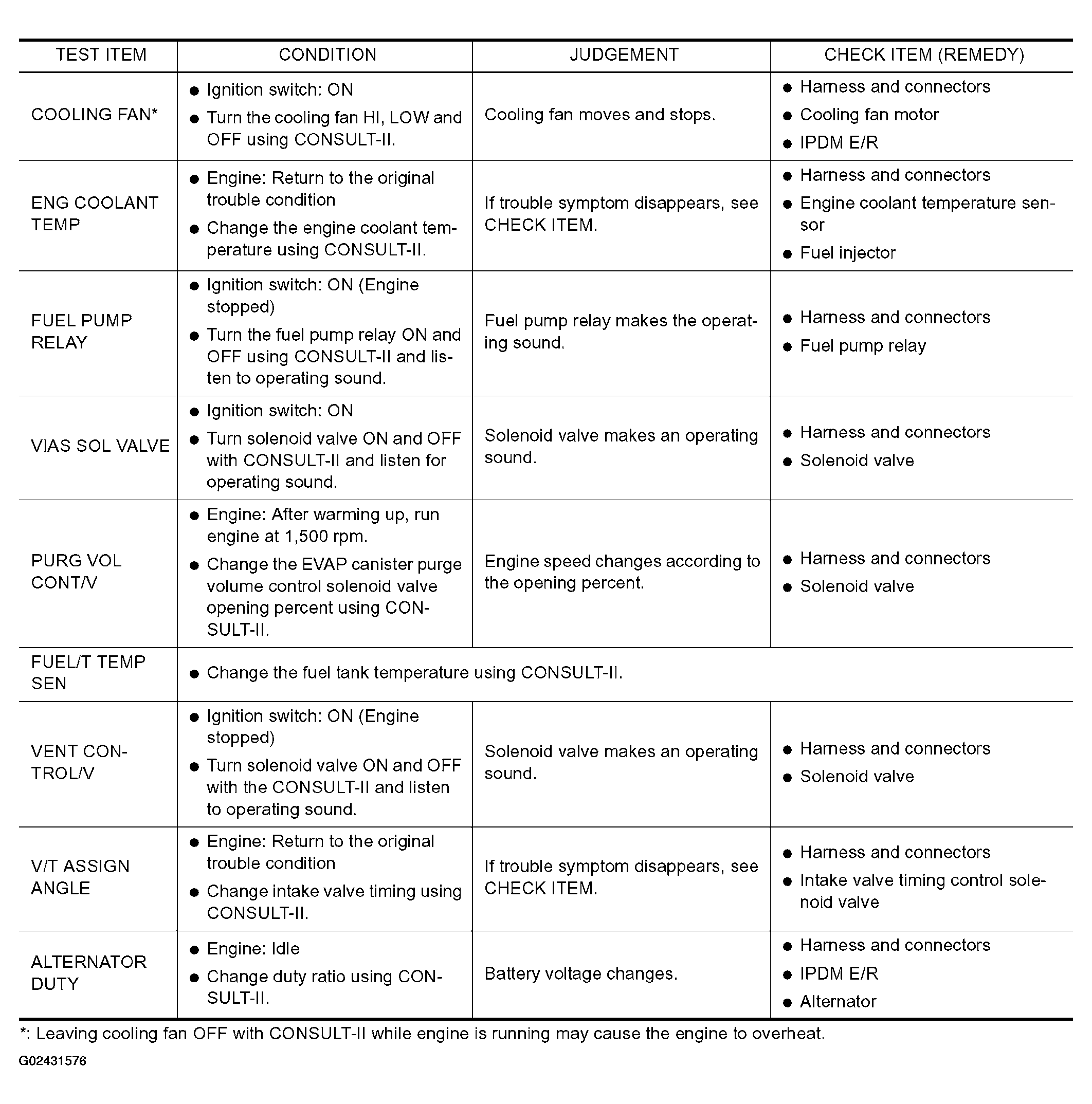

Fig 1: Test Item And Condition Chart - Active Test Mode (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

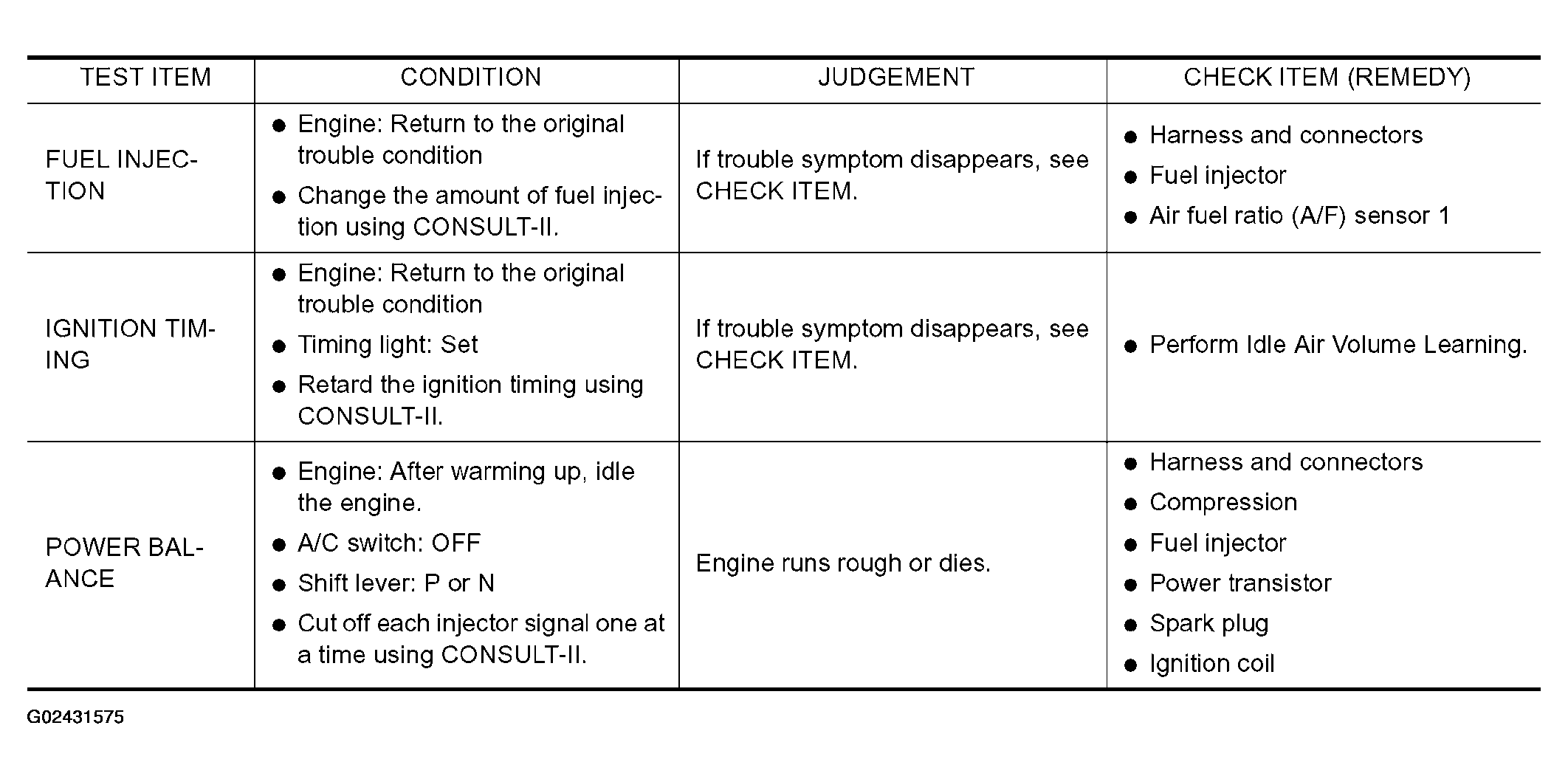

Fig 2: Test Item And Condition Chart - Active Test Mode (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
