Monitored Item

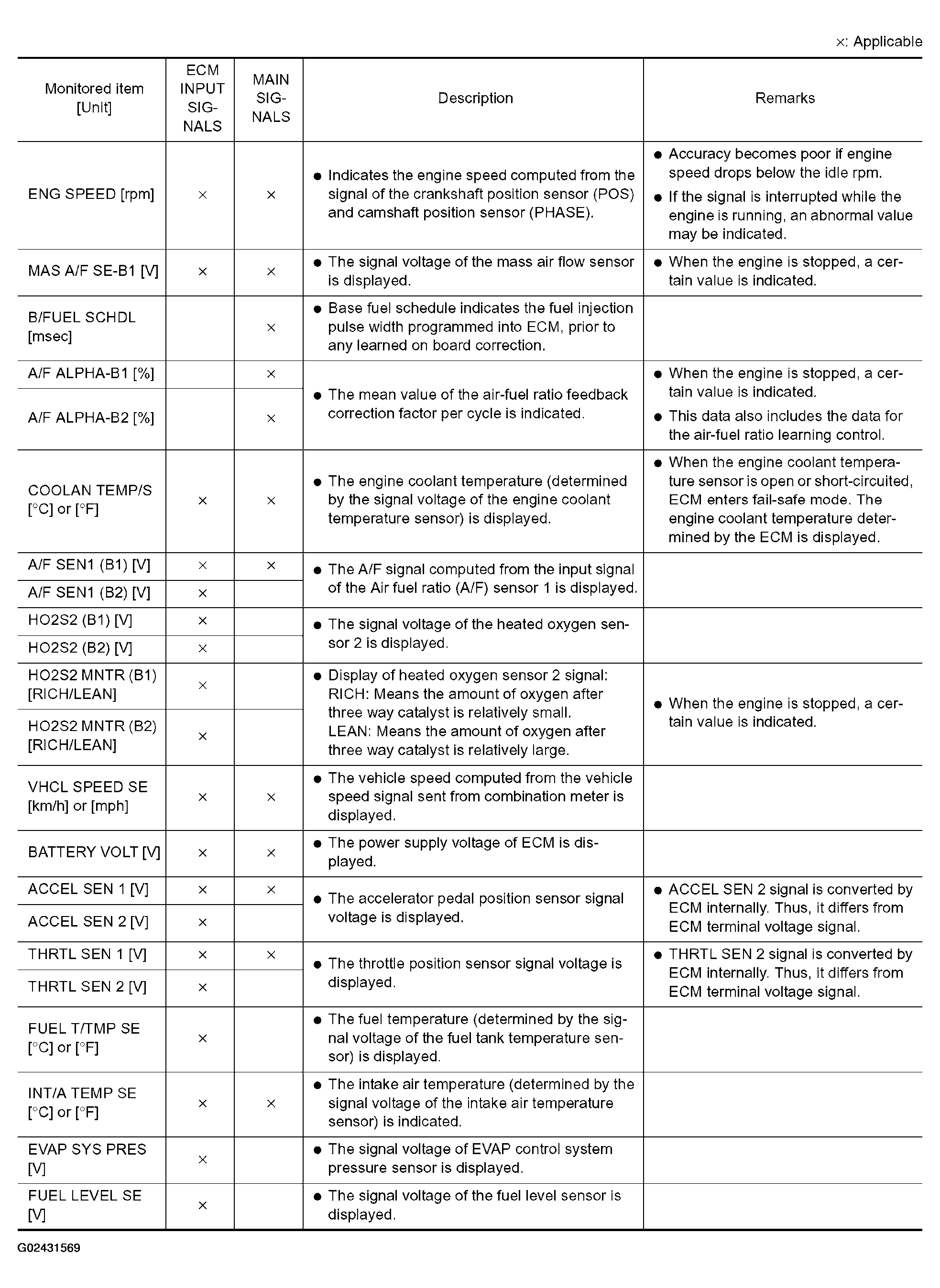

Fig 1: Monitored Item Description Chart (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

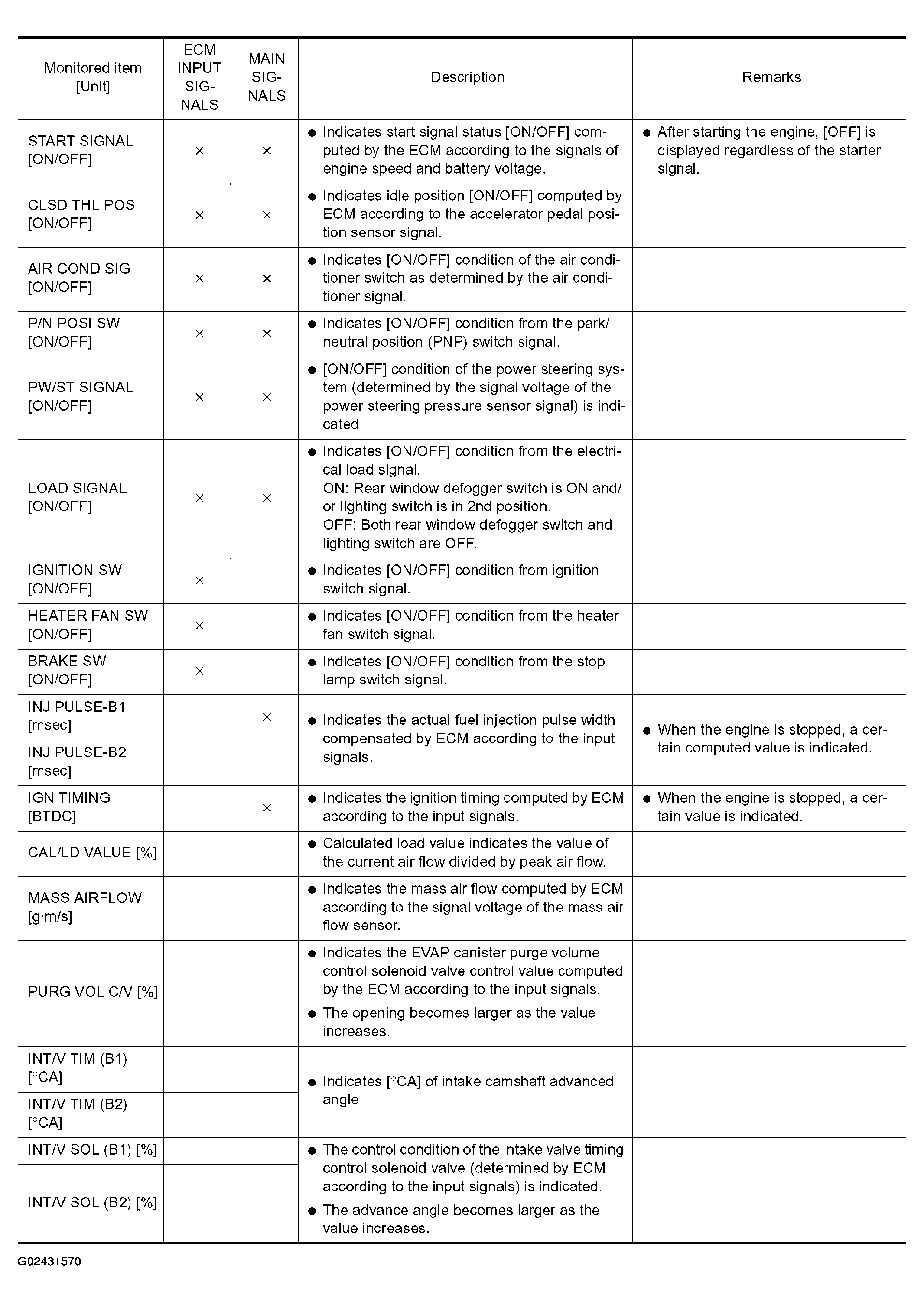

Fig 2: Monitored Item Description Chart (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

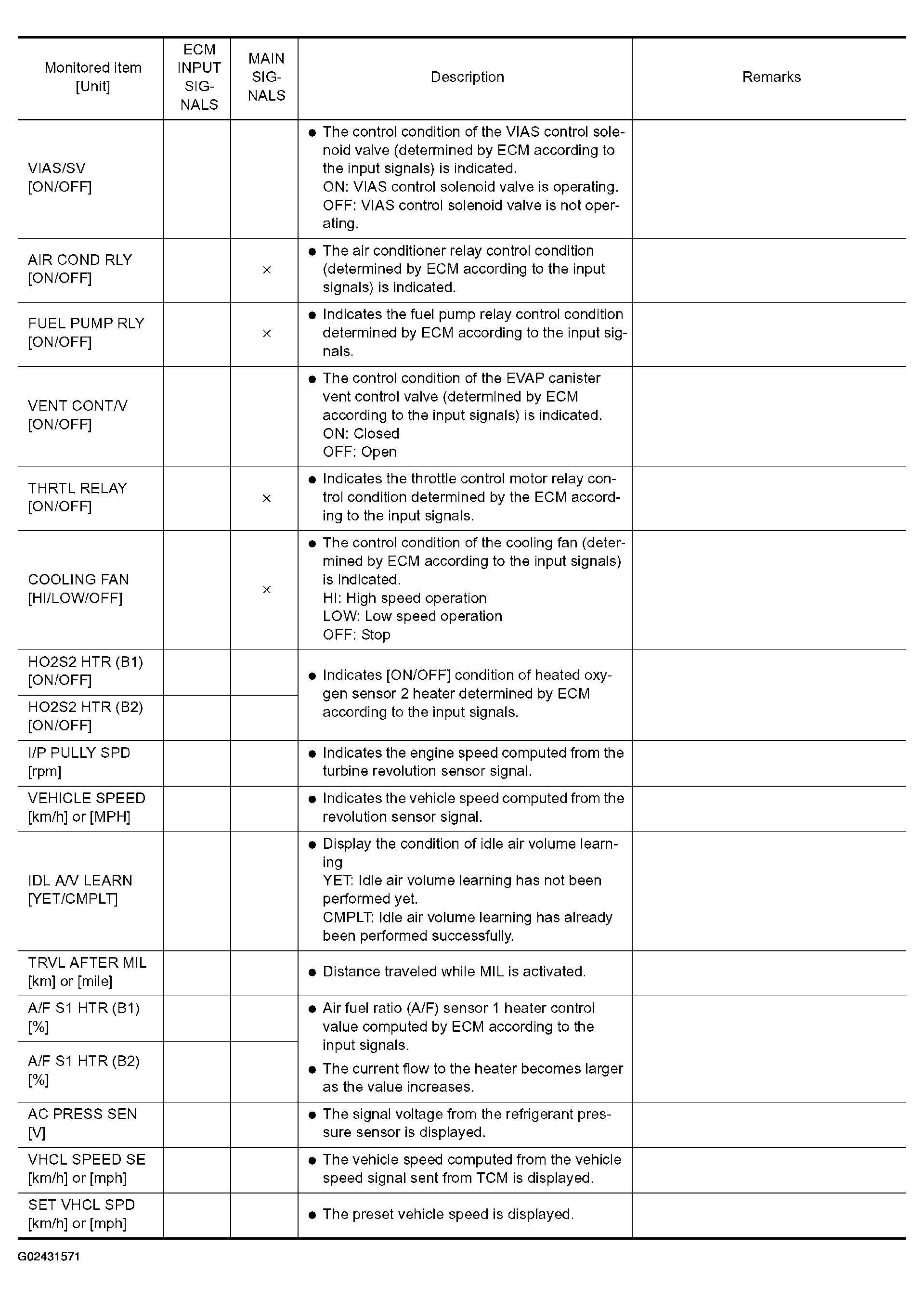

Fig 3: Monitored Item Description Chart (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

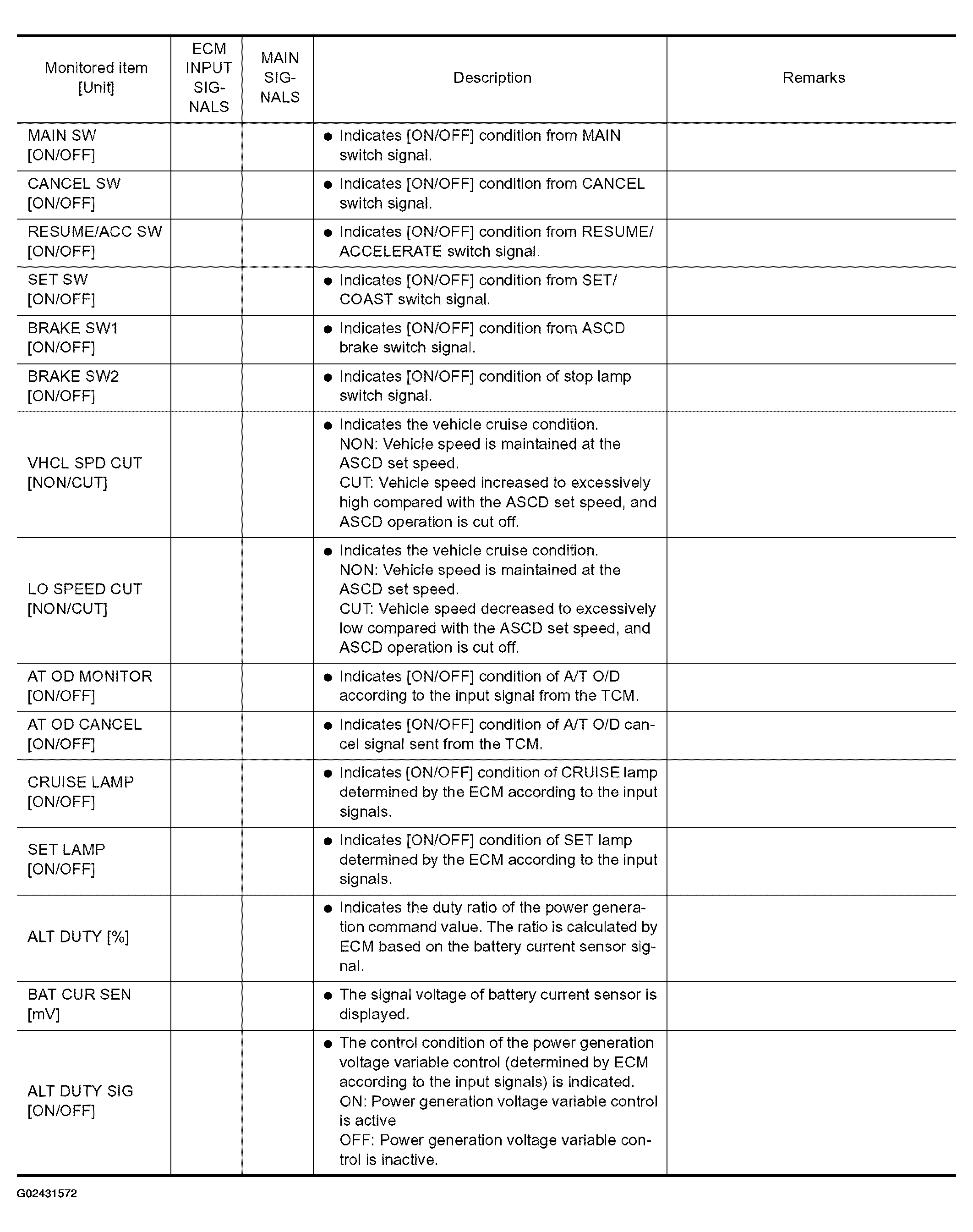

Fig 4: Monitored Item Description Chart (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

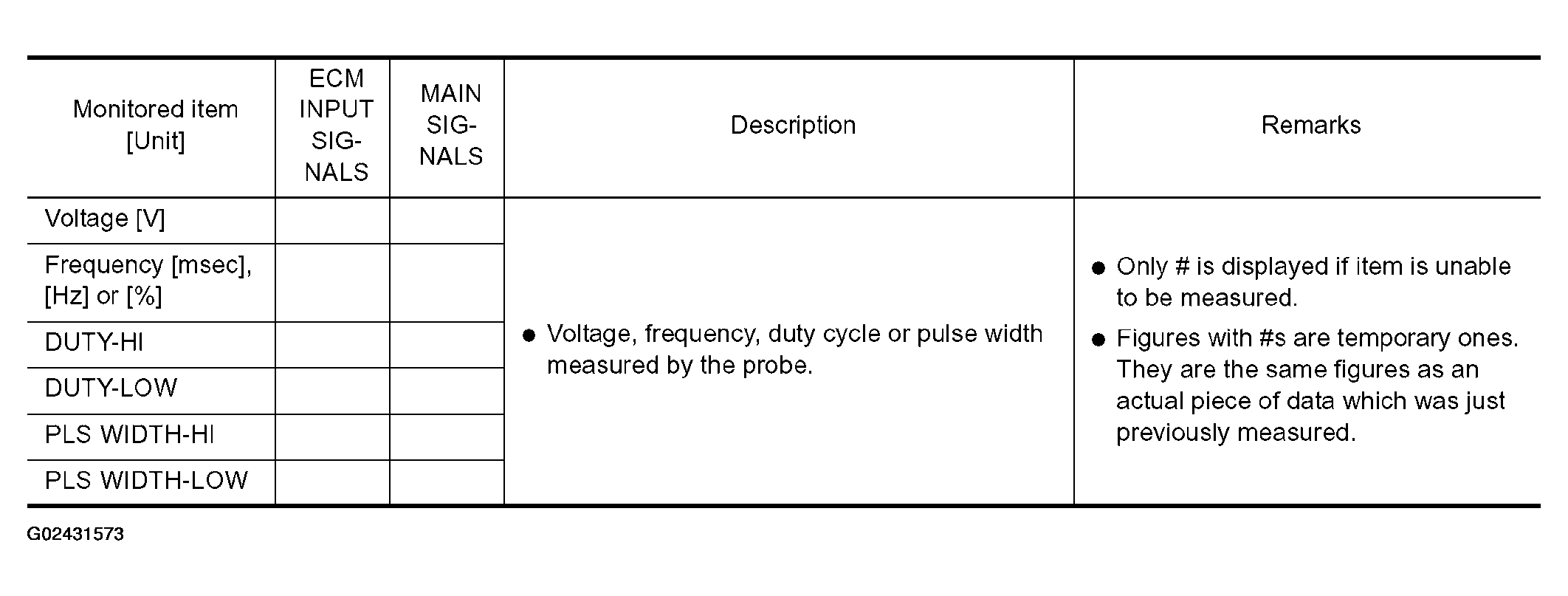

Fig 5: Monitored Item Description Chart (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
