ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

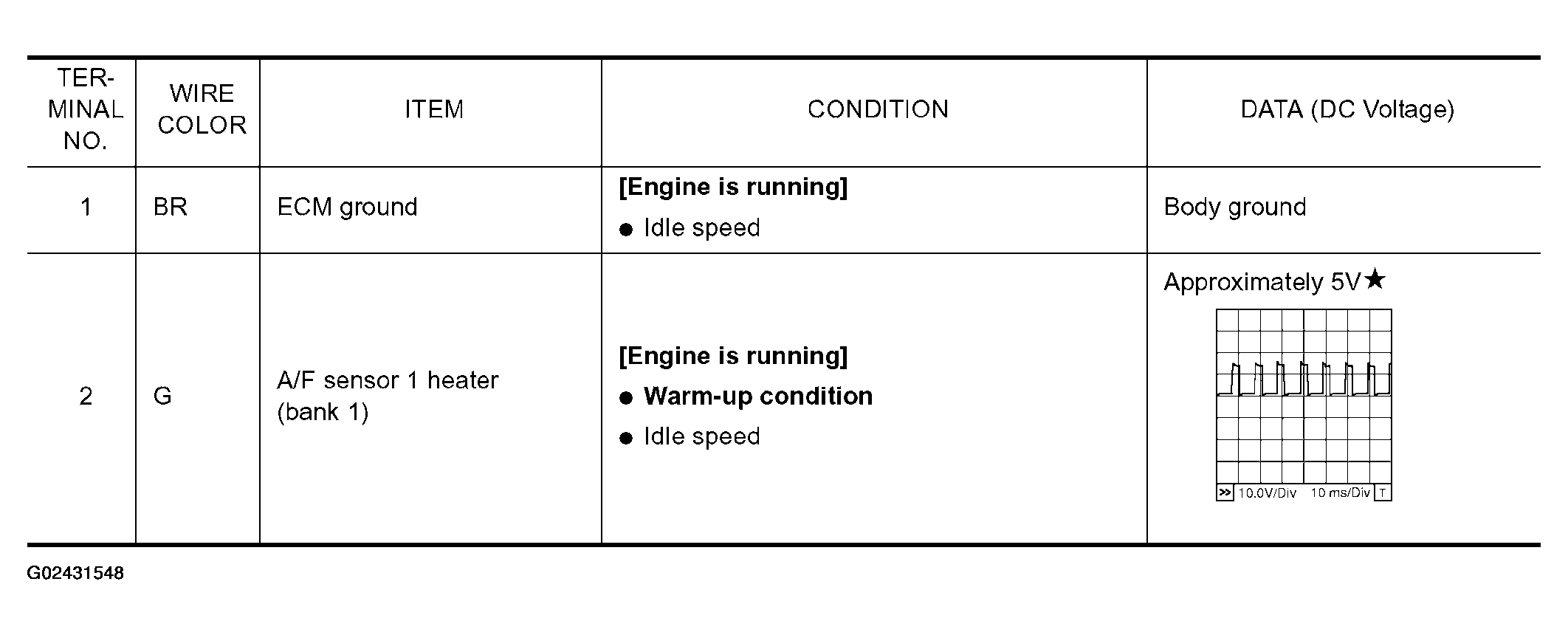

Fig 1: ECM Pin Out Inspection Chart (1 Of 10)

G02431548

Courtesy of NISSAN MOTOR CO., U.S.A.

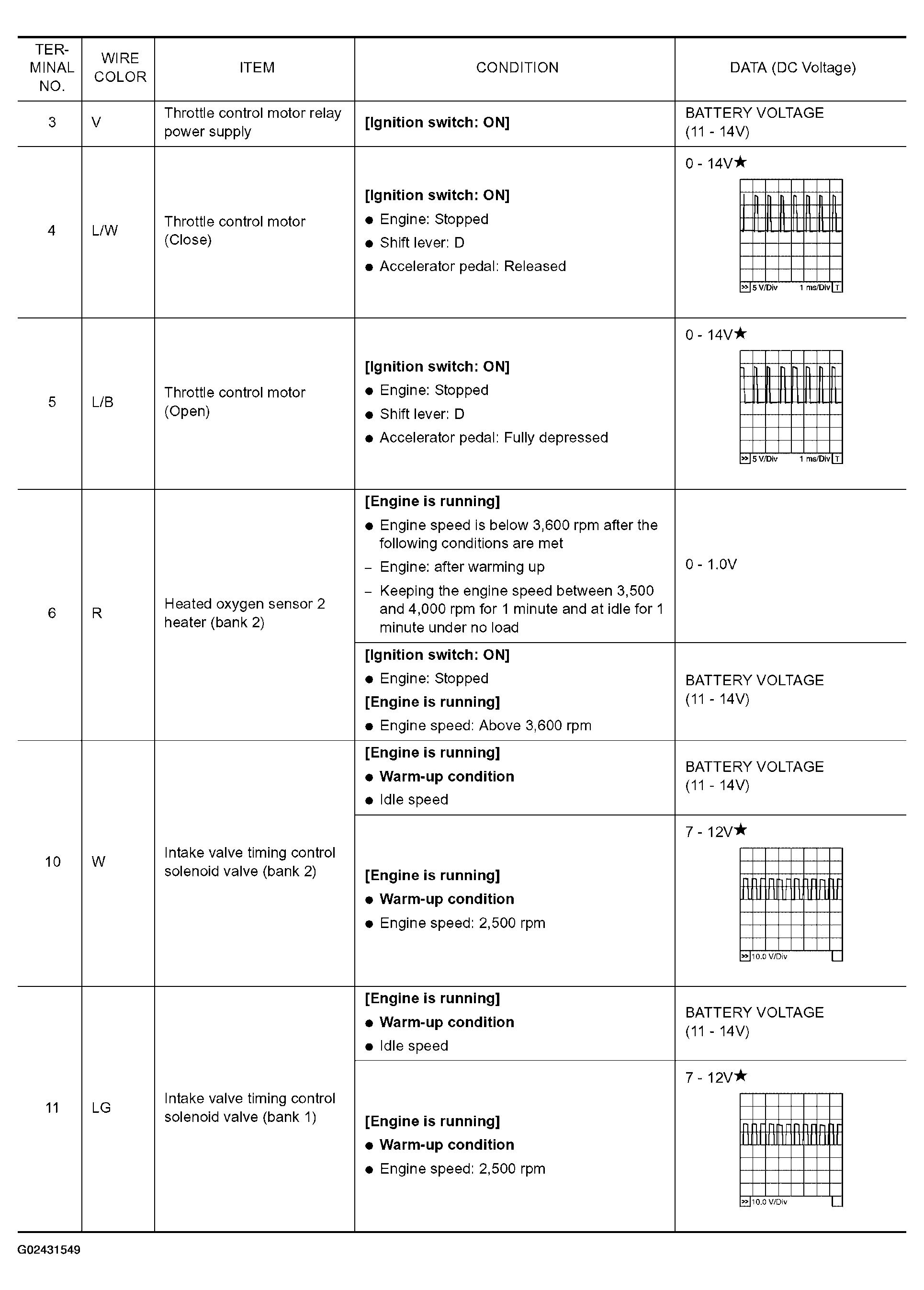

Fig 2: ECM Pin Out Inspection Chart (2 Of 10)

G02431549

Courtesy of NISSAN MOTOR CO., U.S.A.

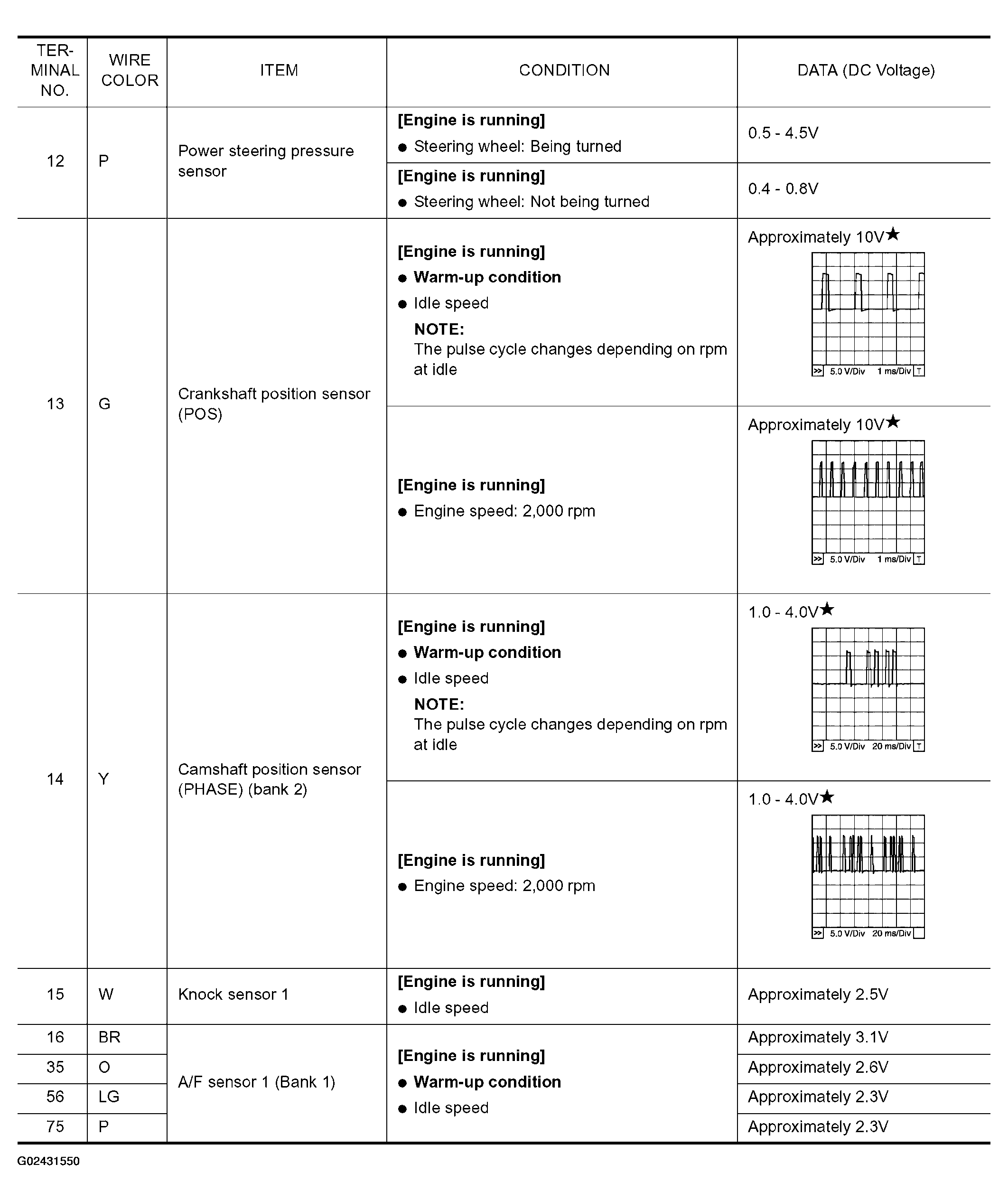

Fig 3: ECM Pin Out Inspection Chart (3 Of 10)

G02431550

Courtesy of NISSAN MOTOR CO., U.S.A.

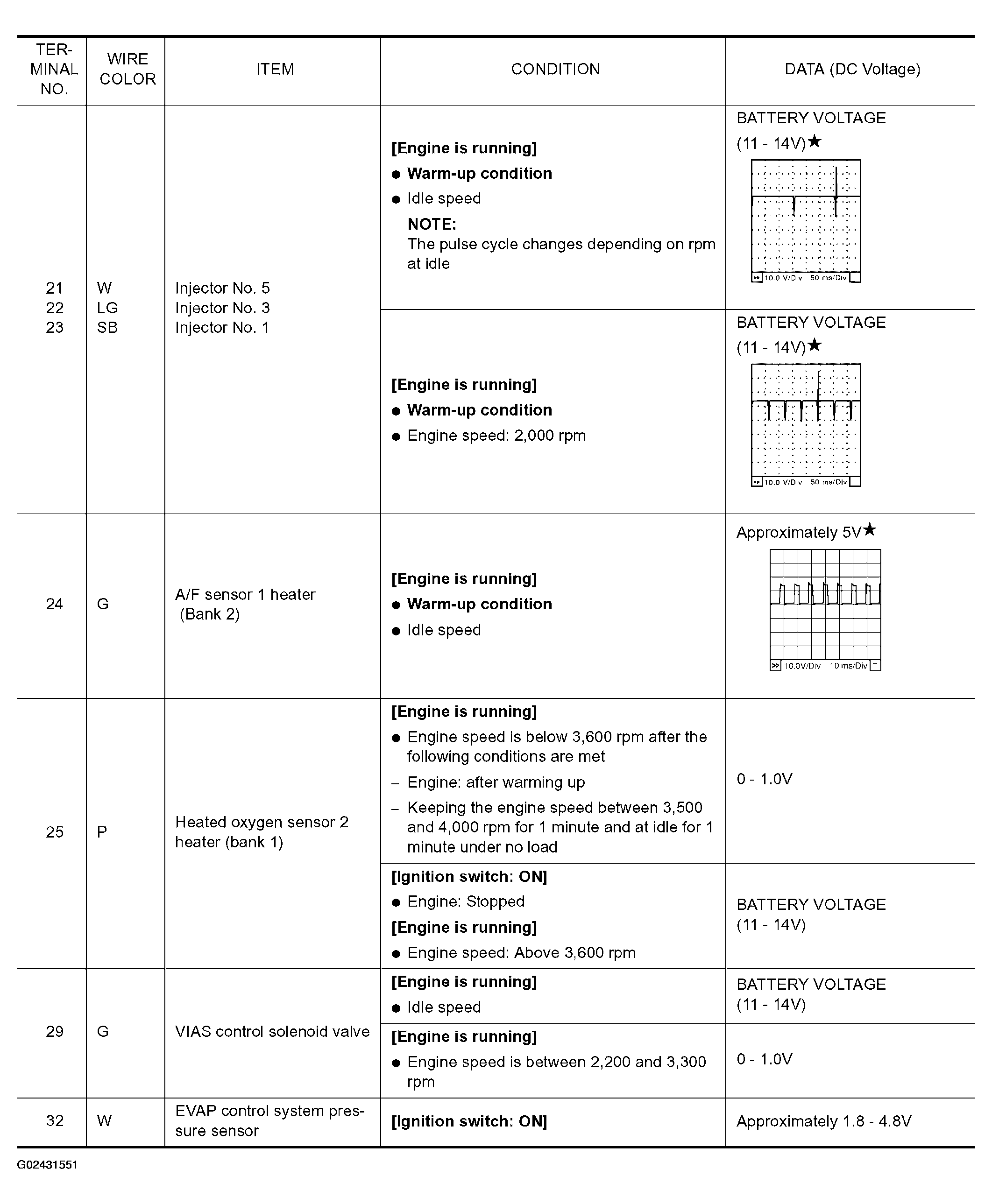

Fig 4: ECM Pin Out Inspection Chart (4 Of 10)

G02431551

Courtesy of NISSAN MOTOR CO., U.S.A.

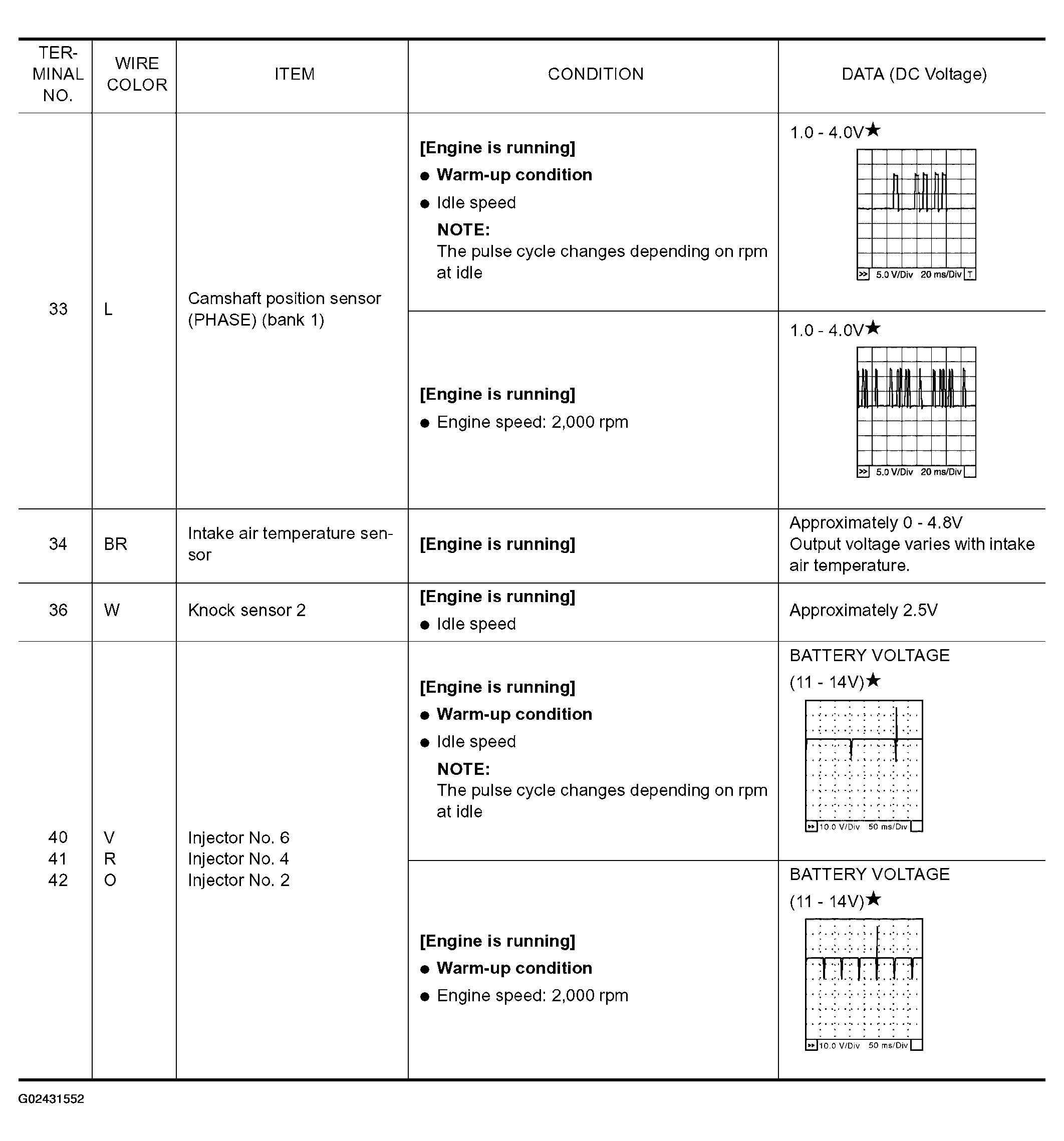

Fig 5: ECM Pin Out Inspection Chart (5 Of 10)

G02431552

Courtesy of NISSAN MOTOR CO., U.S.A.

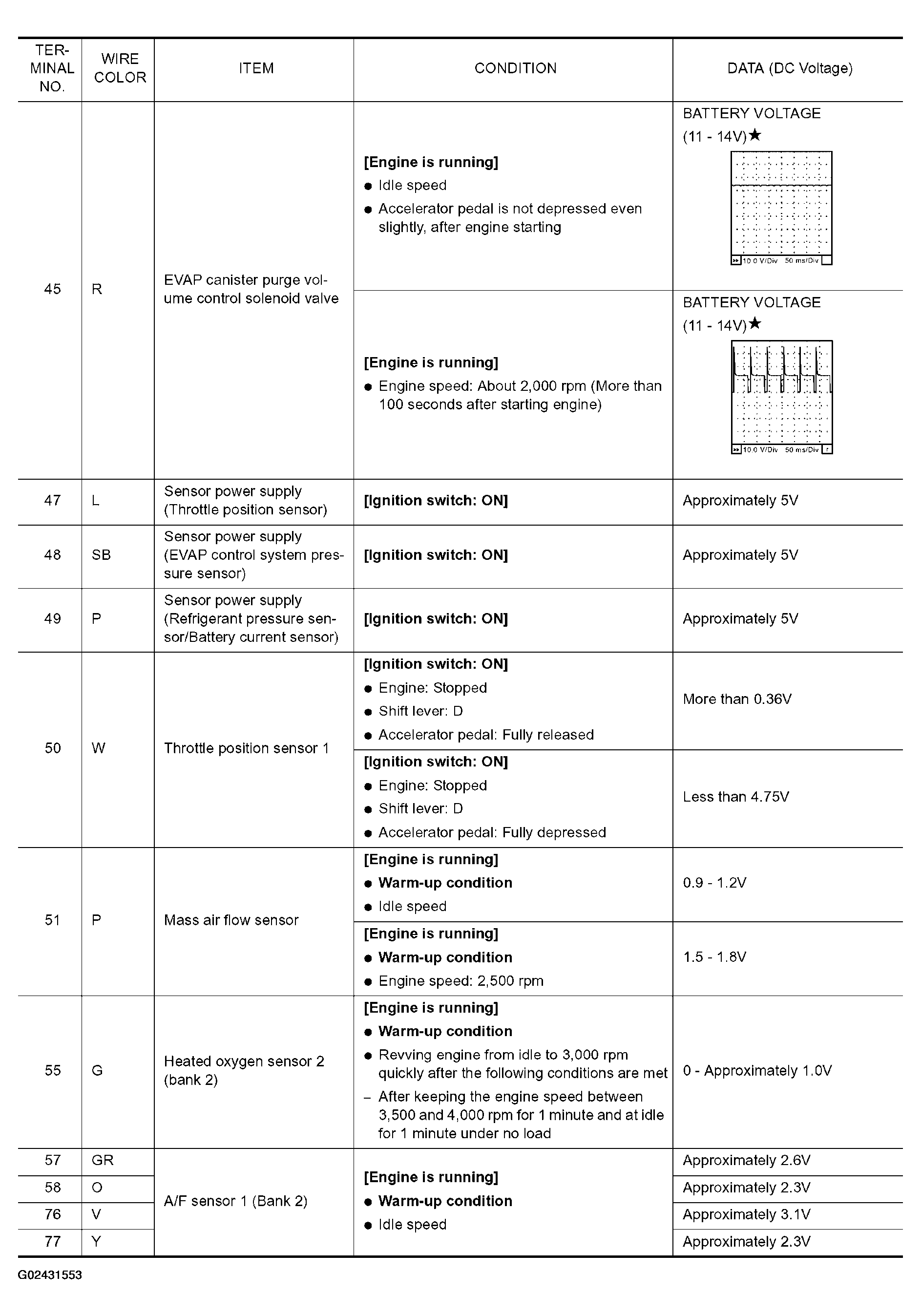

Fig 6: ECM Pin Out Inspection Chart (6 Of 10)

G02431553

Courtesy of NISSAN MOTOR CO., U.S.A.

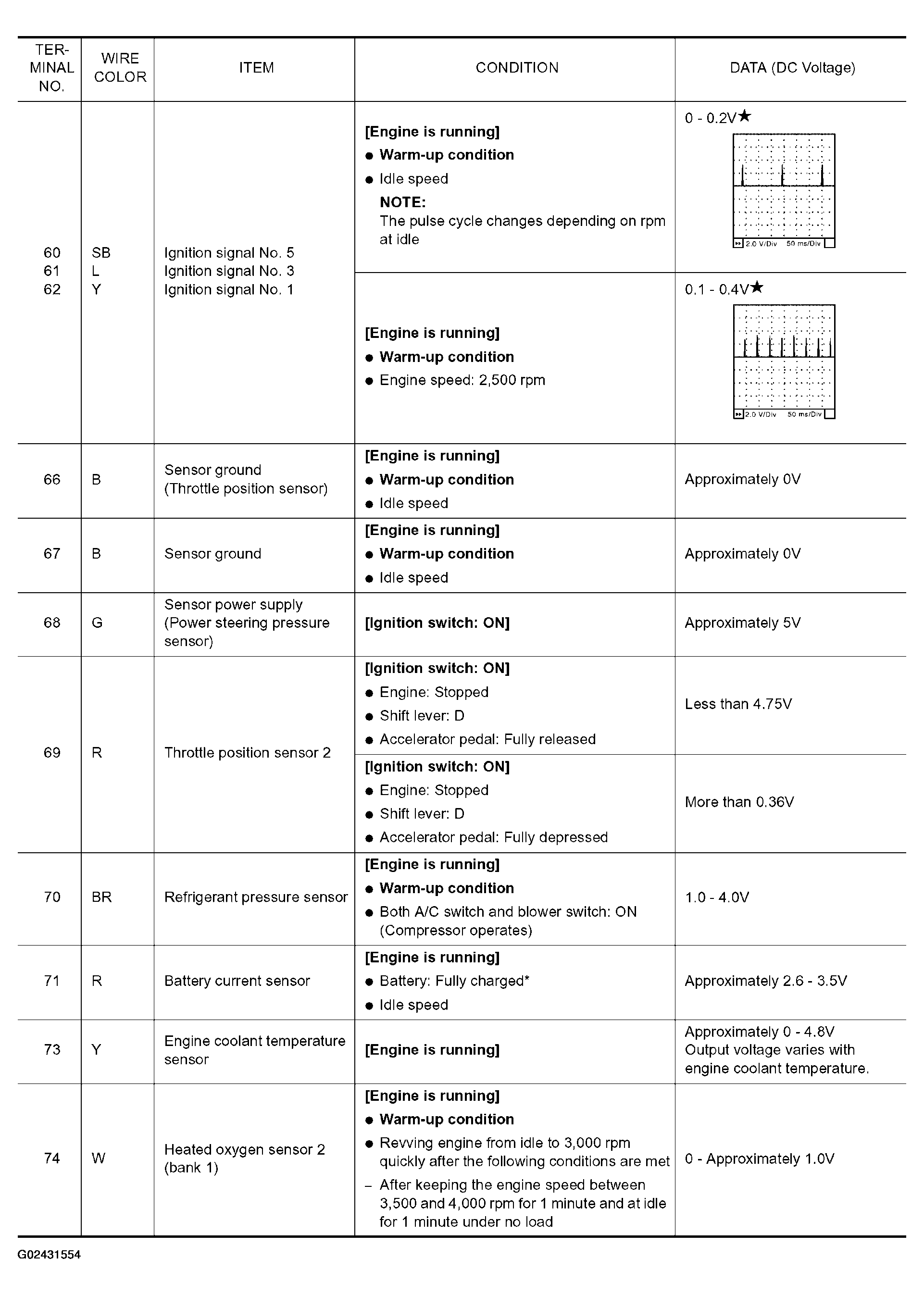

Fig 7: ECM Pin Out Inspection Chart (7 Of 10)

G02431554

Courtesy of NISSAN MOTOR CO., U.S.A.

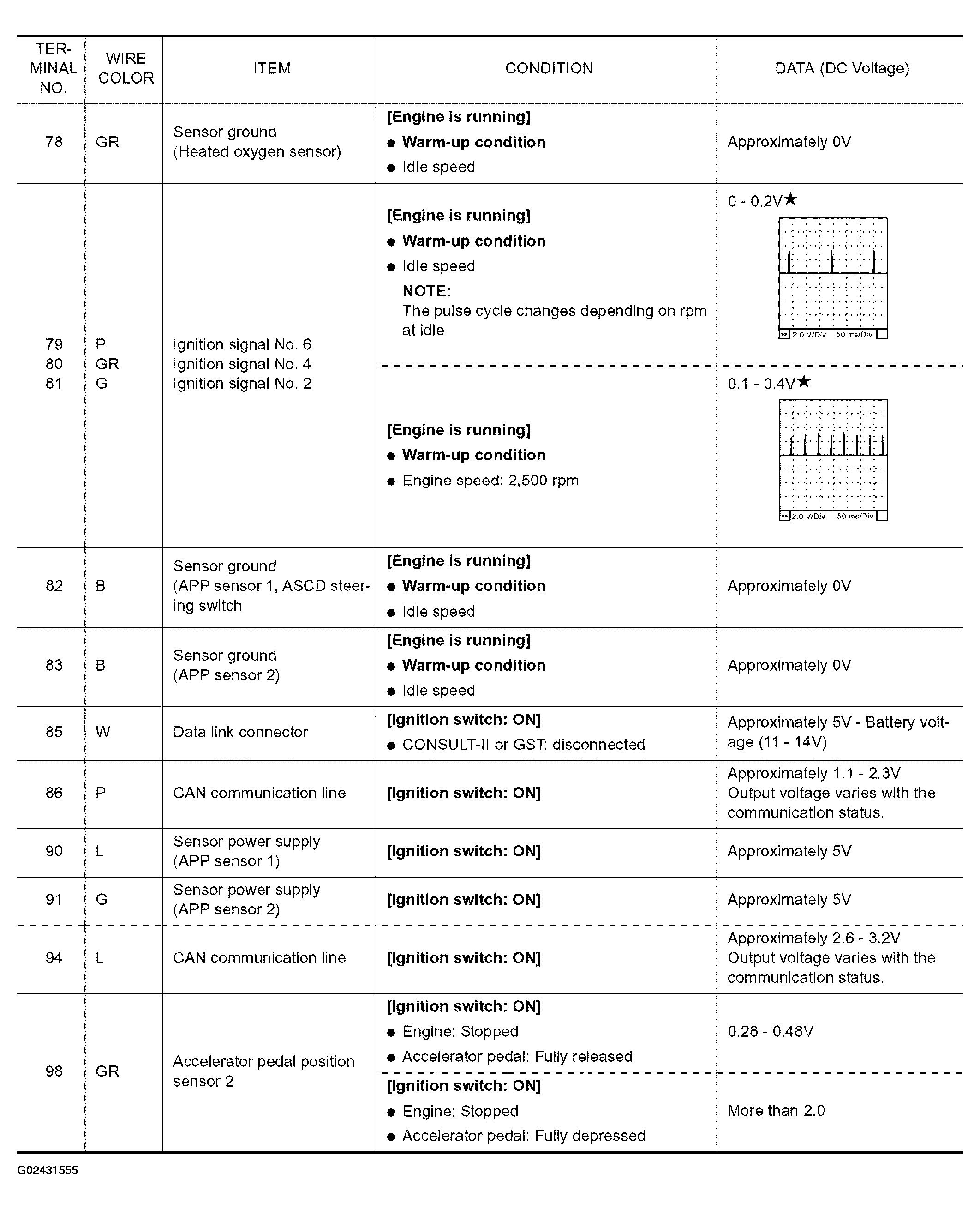

Fig 8: ECM Pin Out Inspection Chart (8 Of 10)

G02431555

Courtesy of NISSAN MOTOR CO., U.S.A.

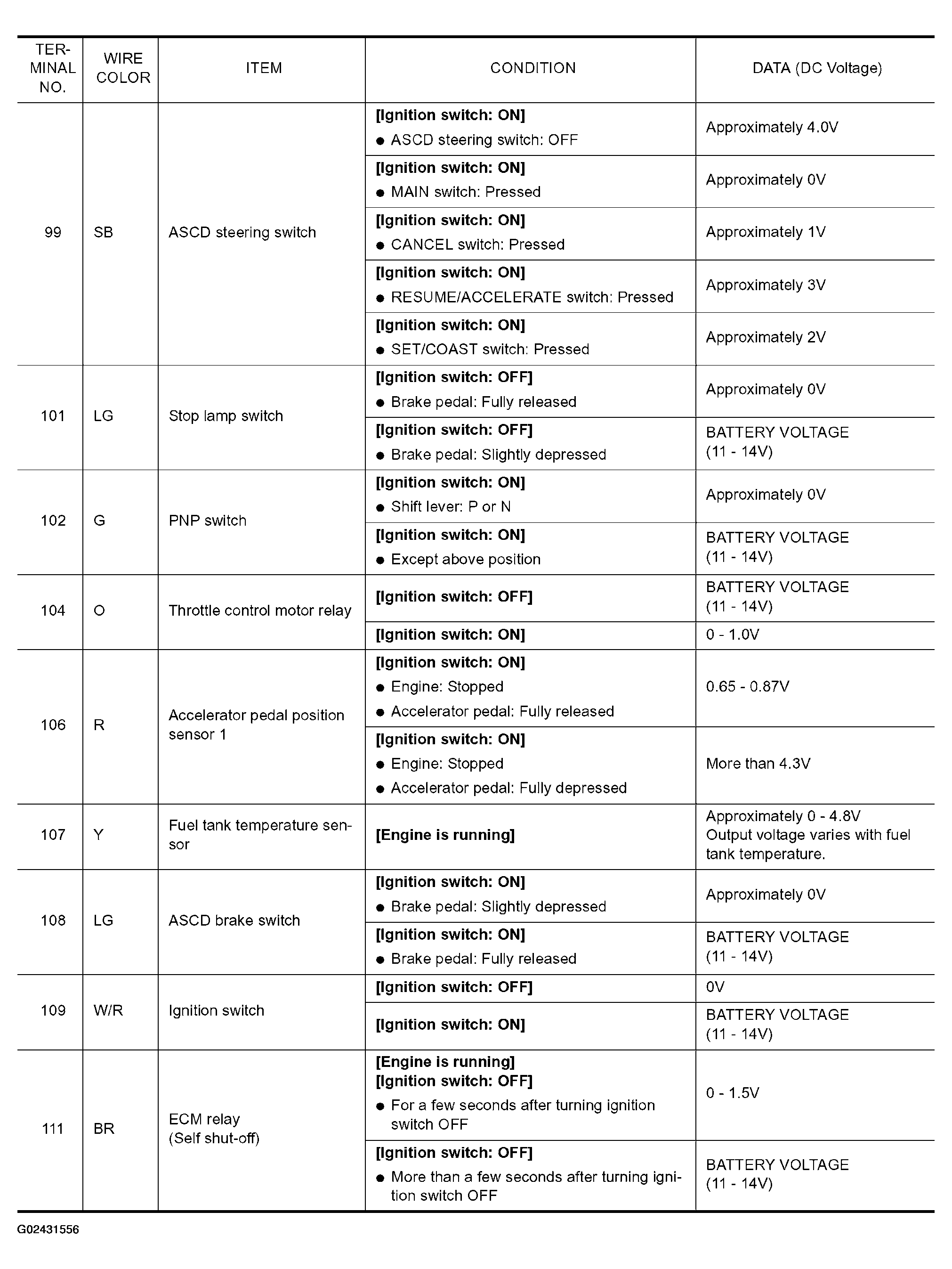

Fig 9: ECM Pin Out Inspection Chart (9 Of 10)

G02431556

Courtesy of NISSAN MOTOR CO., U.S.A.

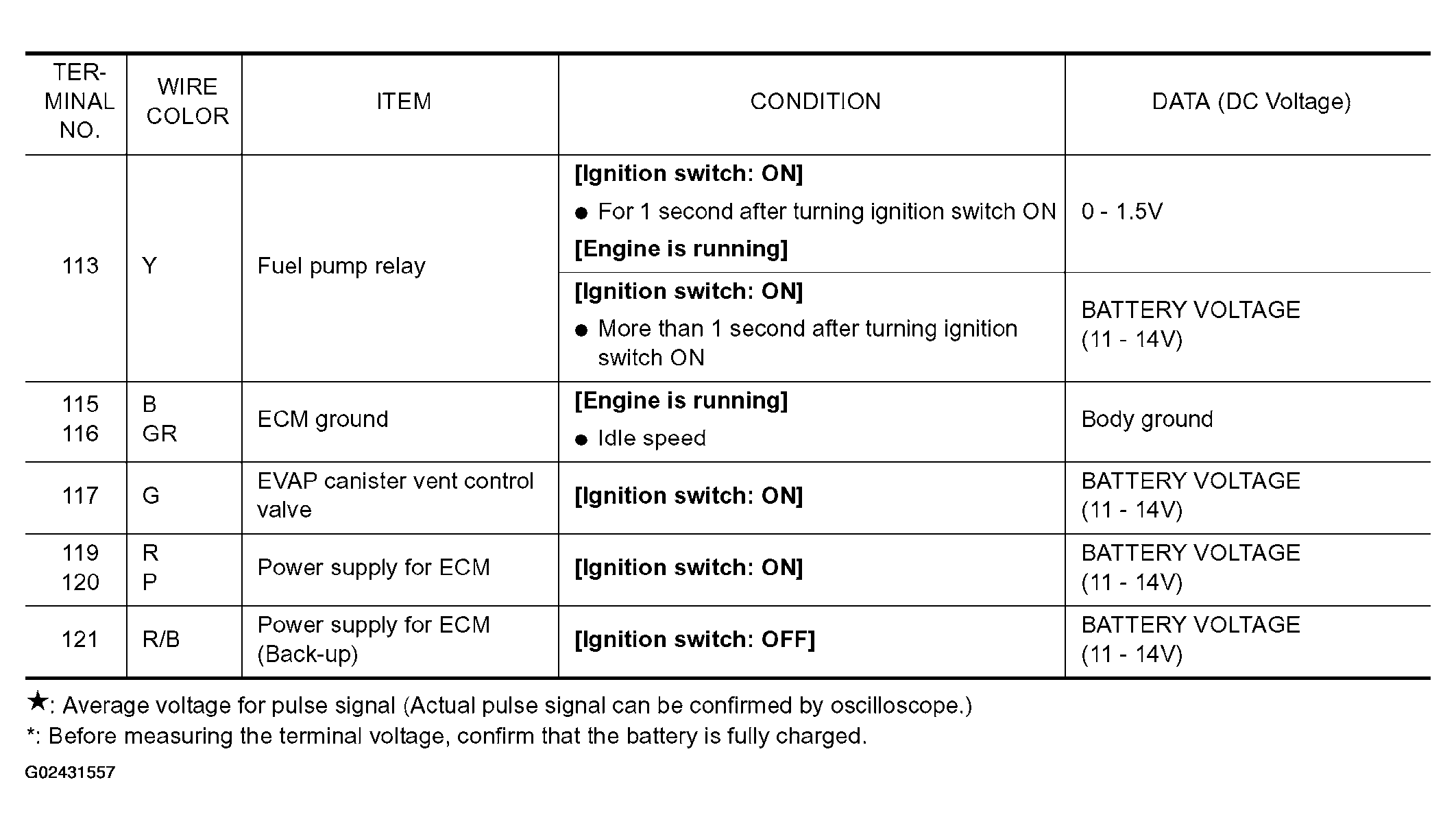

Fig 10: ECM Pin Out Inspection Chart (10 Of 10)

G02431557

Courtesy of NISSAN MOTOR CO., U.S.A.
