DTC P0405, P0406: EGRT Sensor: Wiring Diagram

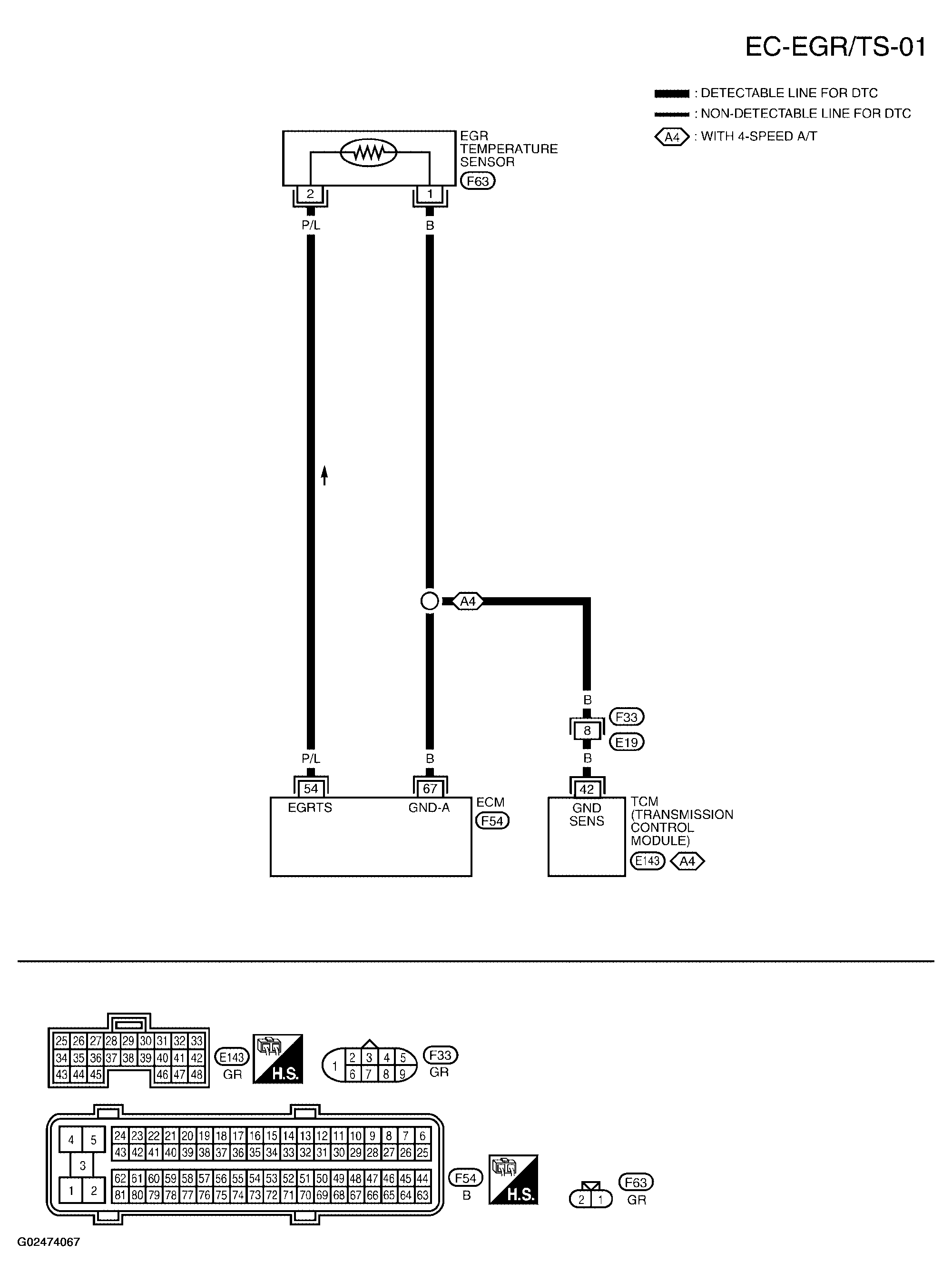

Fig 1: Wiring Diagram - EGRT Sensor - EC-EGR/TS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
