On Board Diagnosis Logic: Notes

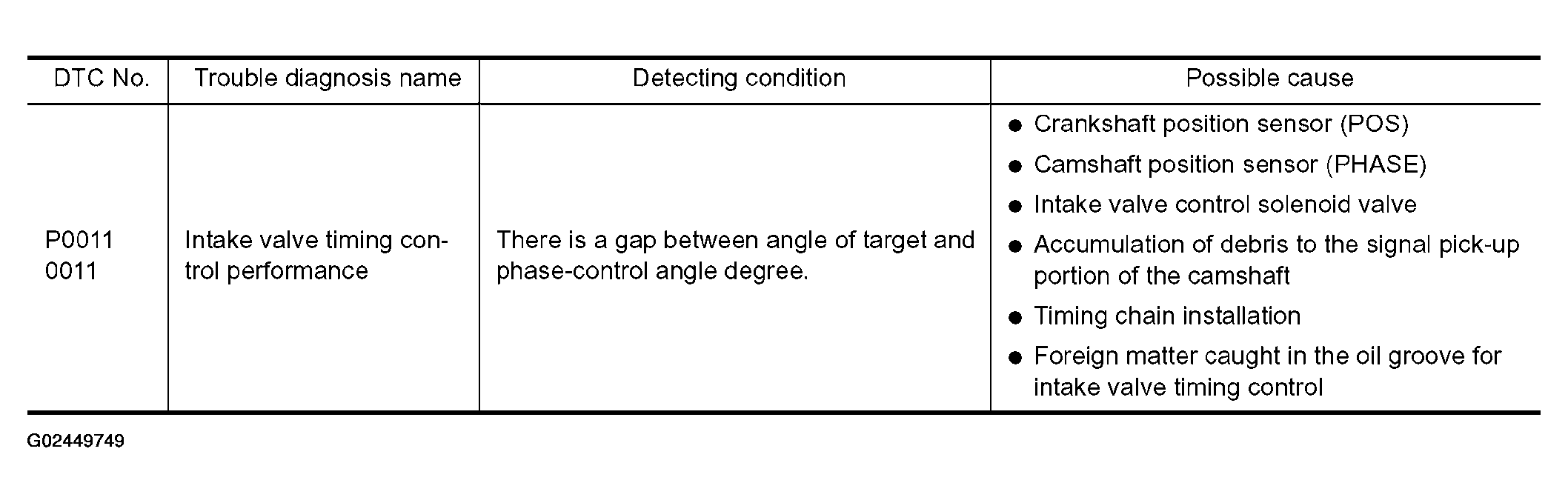

Fig 1: DTC P0011: On Board Diagnosis Logic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
