Special Service Tools

The actual shape of Kent-Moore tools may differ from those of special service tools illustrated here.

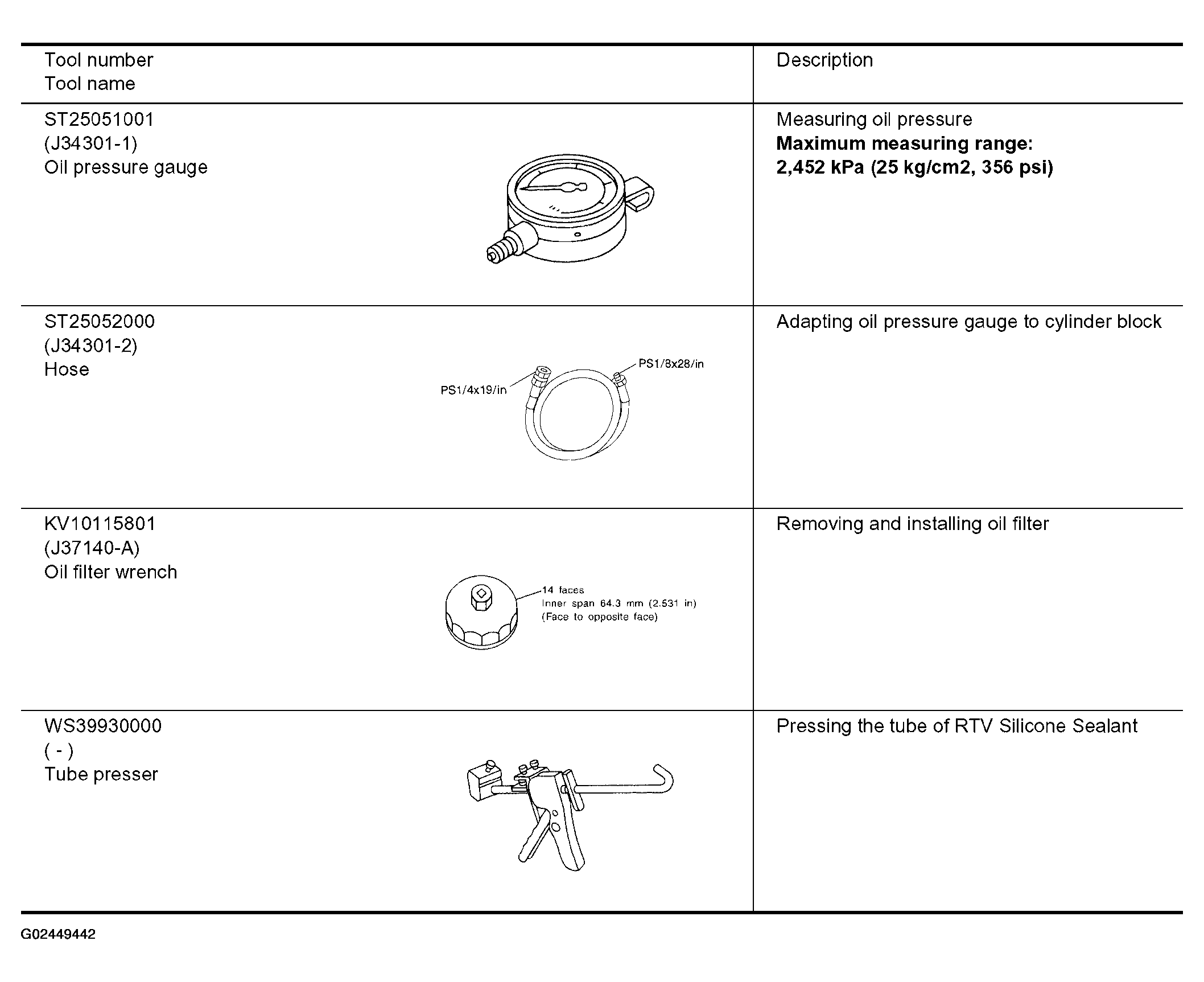

Fig 1: Identifying Special Tools
G02449442Courtesy of NISSAN MOTOR CO., U.S.A.
