Main 12 Causes of Overheating

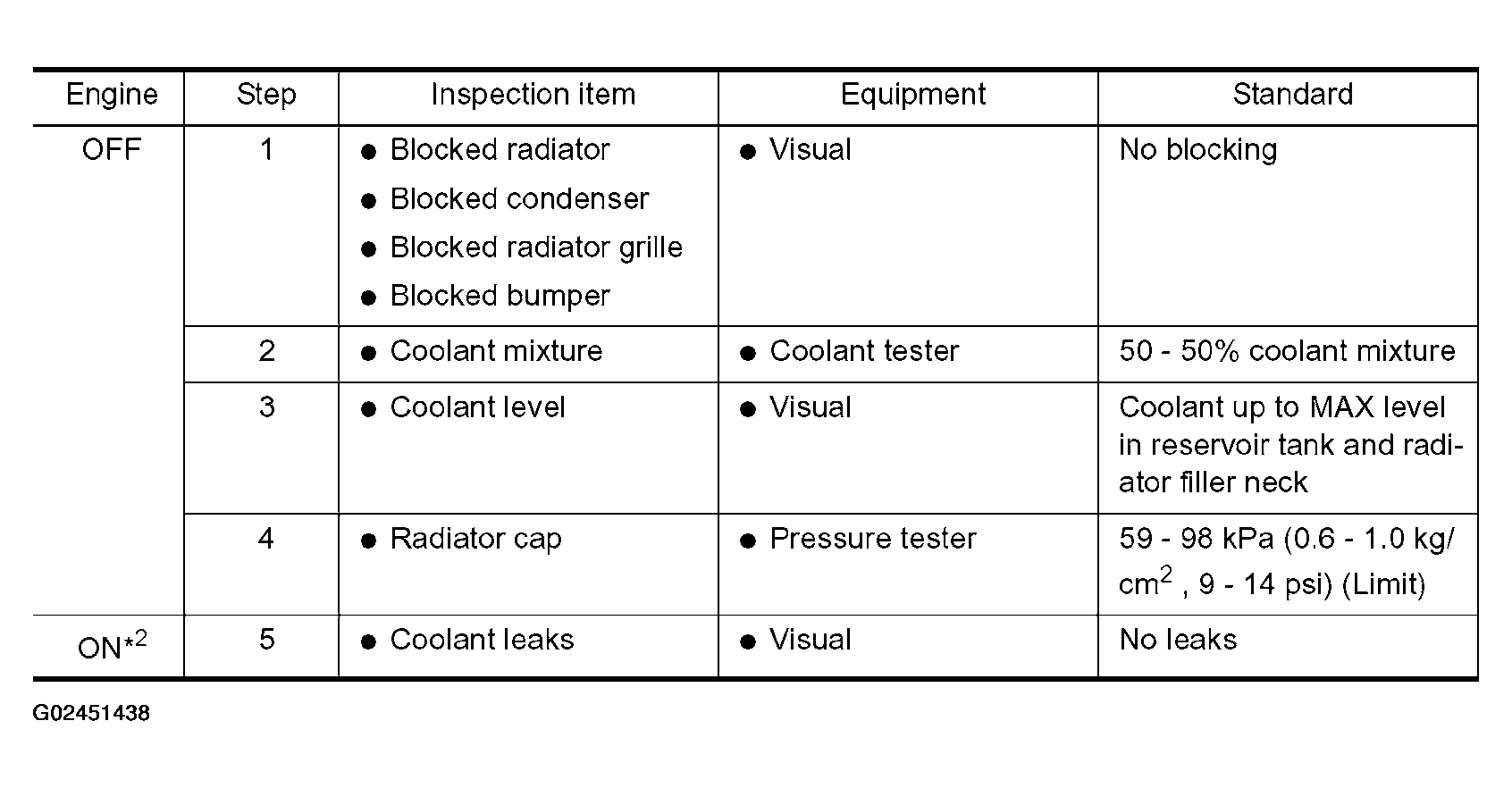

Fig 1: Main Causes Of Overheating Chart (1 Of 2)

G02451438

Courtesy of NISSAN MOTOR CO., U.S.A.

For checking coolant mixture, refer to ANTI-FREEZE COOLANT MIXTURE RATIO .
For checking coolant level, refer to REFILLING ENGINE COOLANT .
To check cylinder head warpage, refer to CYLINDER HEAD DISTORTION .
To check cylinder block and pistons, refer to INSPECTION AFTER DISASSEMBLY .

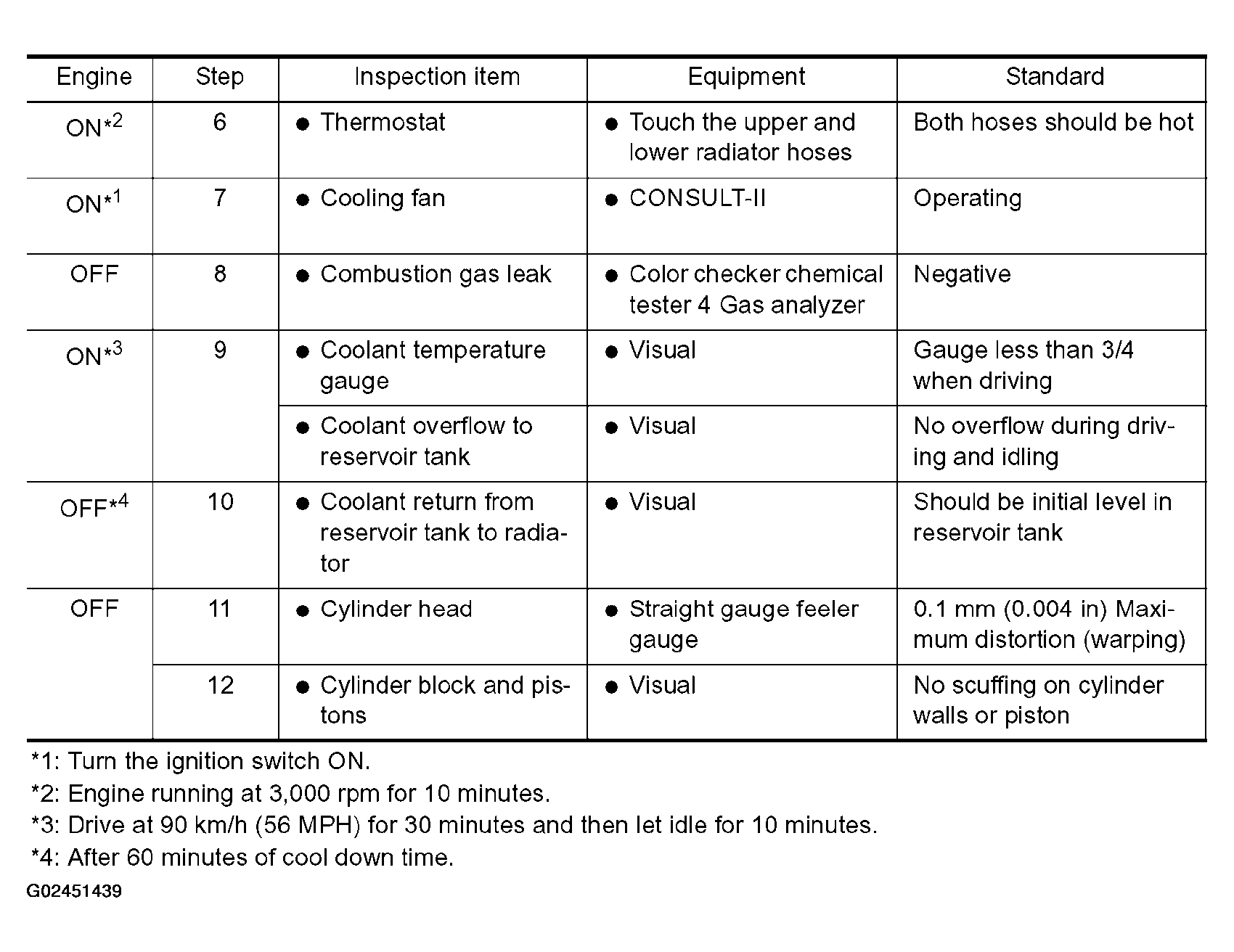

Fig 2: Main Causes Of Overheating Chart (2 Of 2)

G02451439

Courtesy of NISSAN MOTOR CO., U.S.A.
