Control Valve Upper Body: Components

WARNING: This page is about a different variant/trim than selected.

Numbers preceding valve springs correspond with those shown in CONTROL VALVE AND PLUG RETURN SPRINGS .

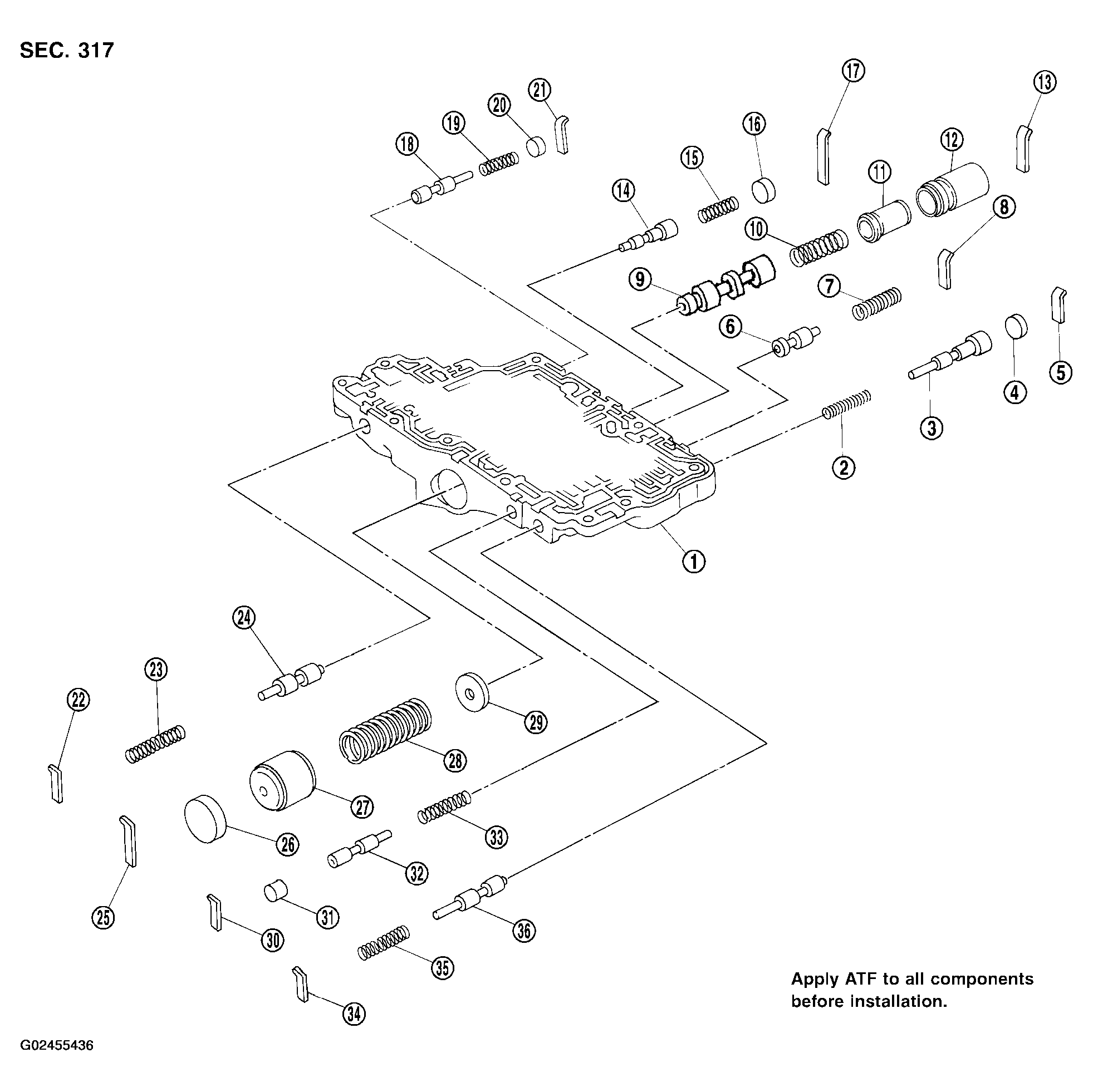

Fig 1: Exploded View Of Control Valve Upper Body

Courtesy of NISSAN MOTOR CO., U.S.A.
