Revolution Sensor Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect revolution sensor harness connector.
  2. Remove harness bracket from A/T.
  3. Remove revolution sensor from A/T.
  4. Reinstall any part removed.

    Always use new sealing parts.

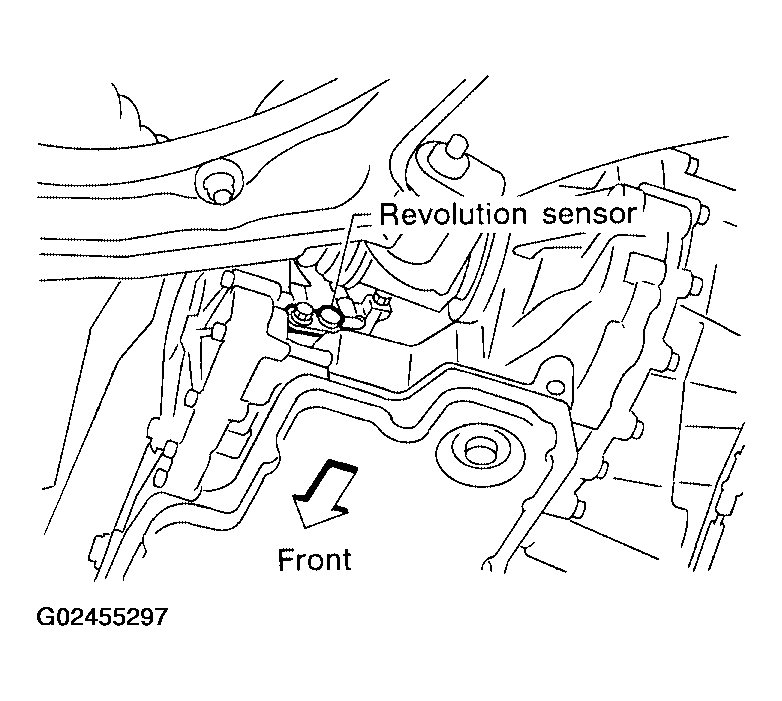

    Fig 1: Disconnecting Revolution Sensor Harness Connector
    G02455297Courtesy of NISSAN MOTOR CO., U.S.A.
