Cross-sectional View

WARNING: This page is about a different variant/trim than selected.

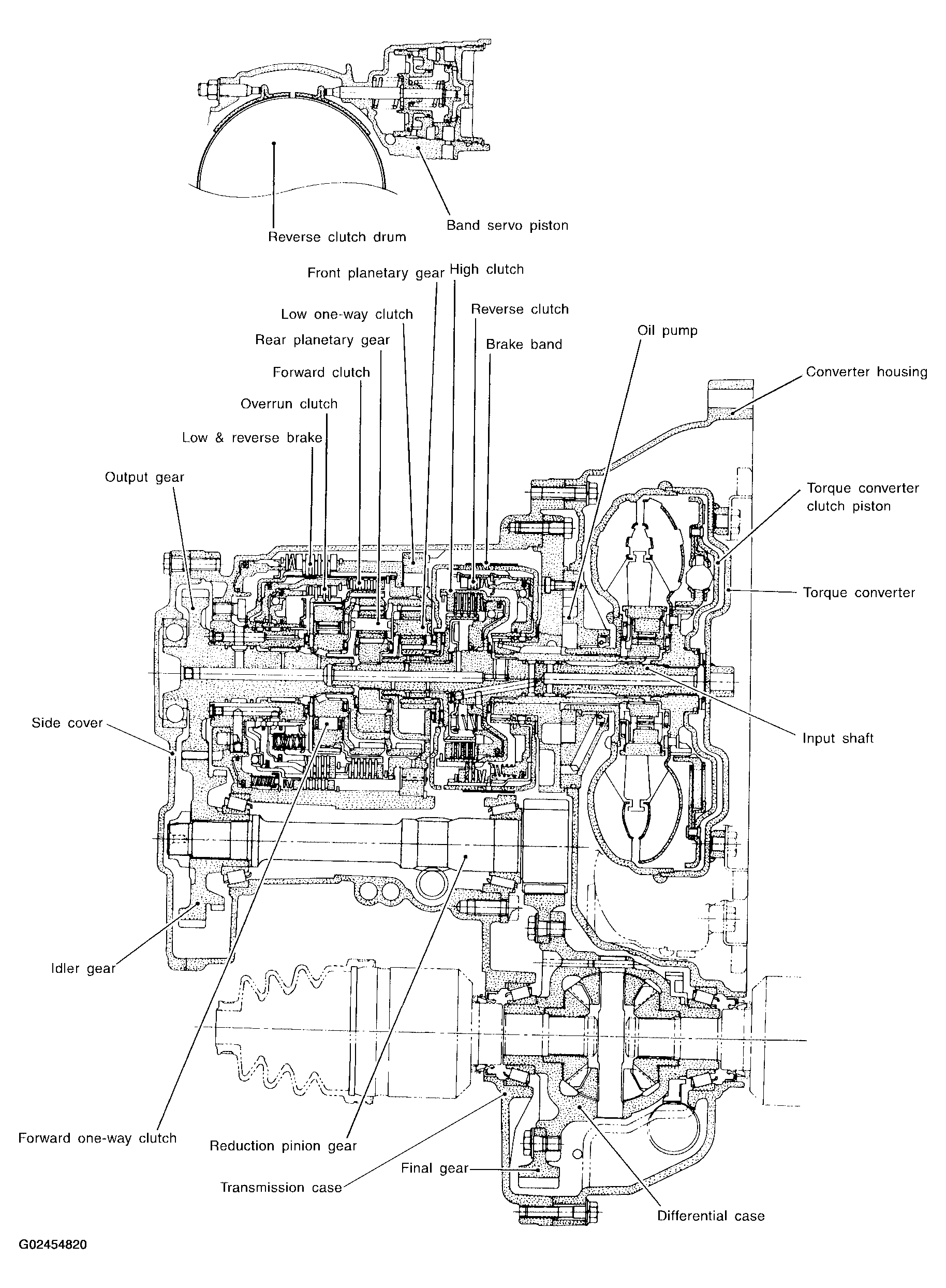

Fig 1: Cross-Sectional View - A/T
G02454820Courtesy of NISSAN MOTOR CO., U.S.A.
