Section 4 (Automatic Transmission (Re4F03B)): Overhaul: Components

WARNING: This page is about a different variant/trim than selected.

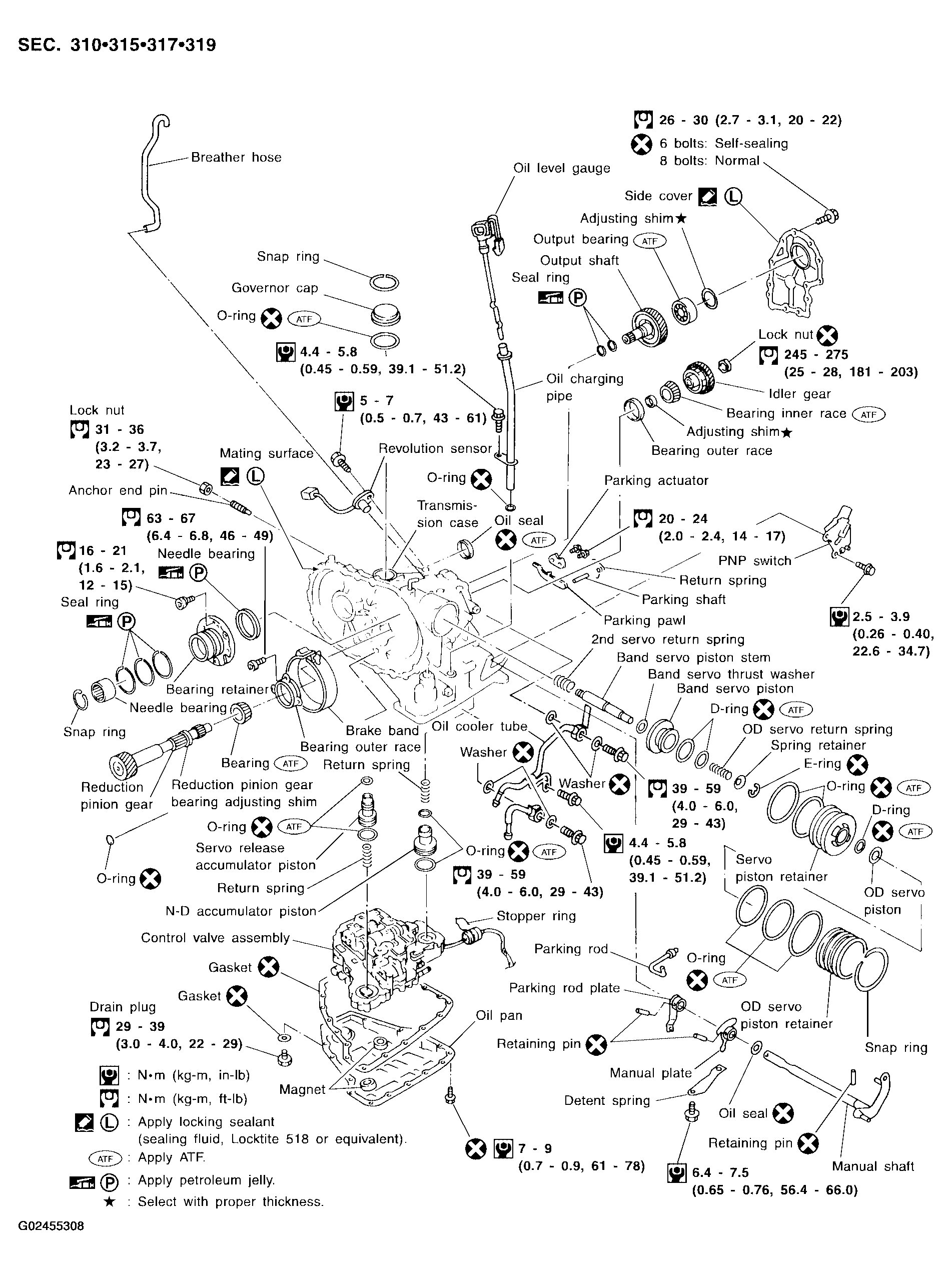

Fig 1: Identifying Overhaul Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

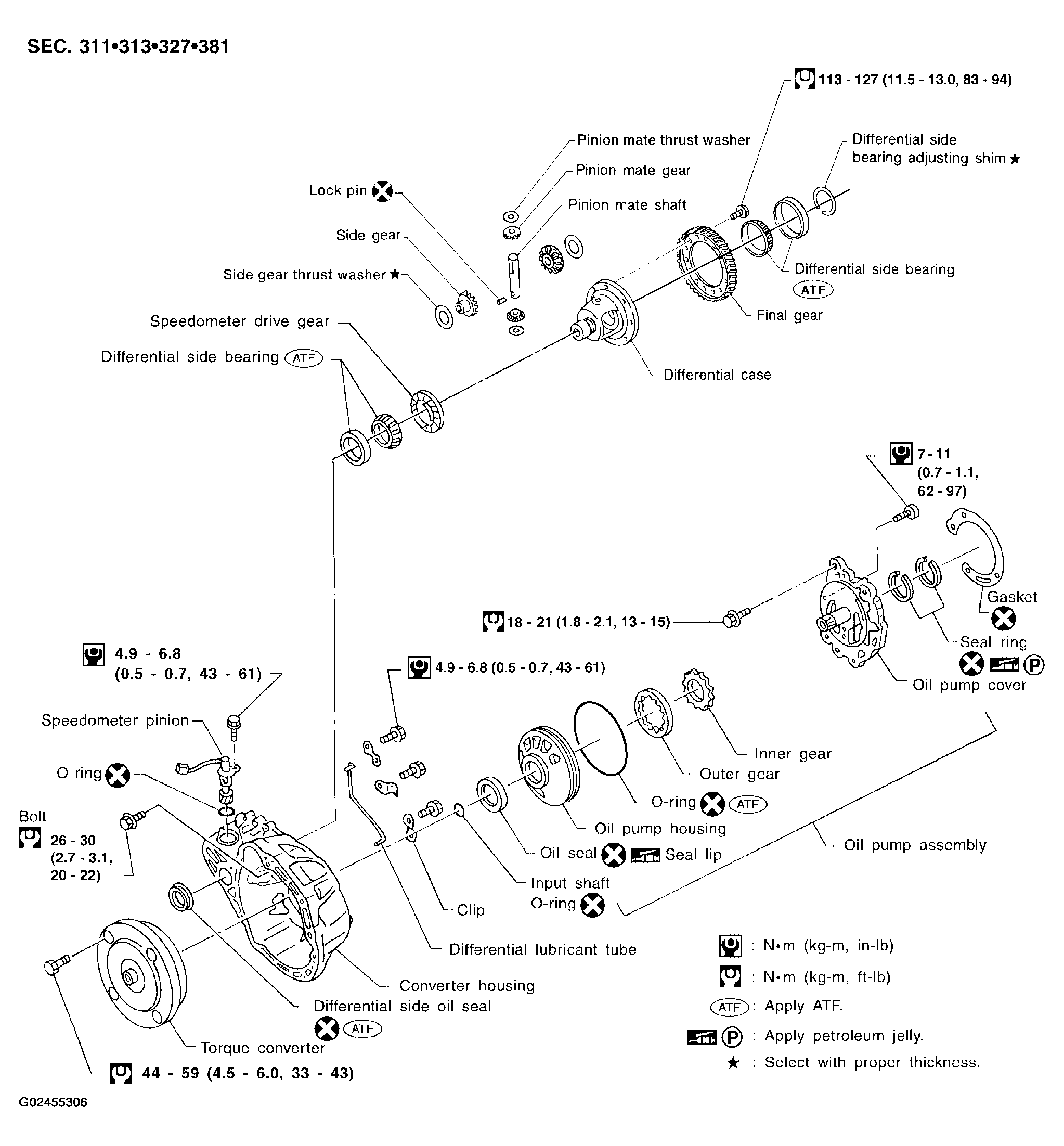

Fig 2: Identifying Overhaul Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

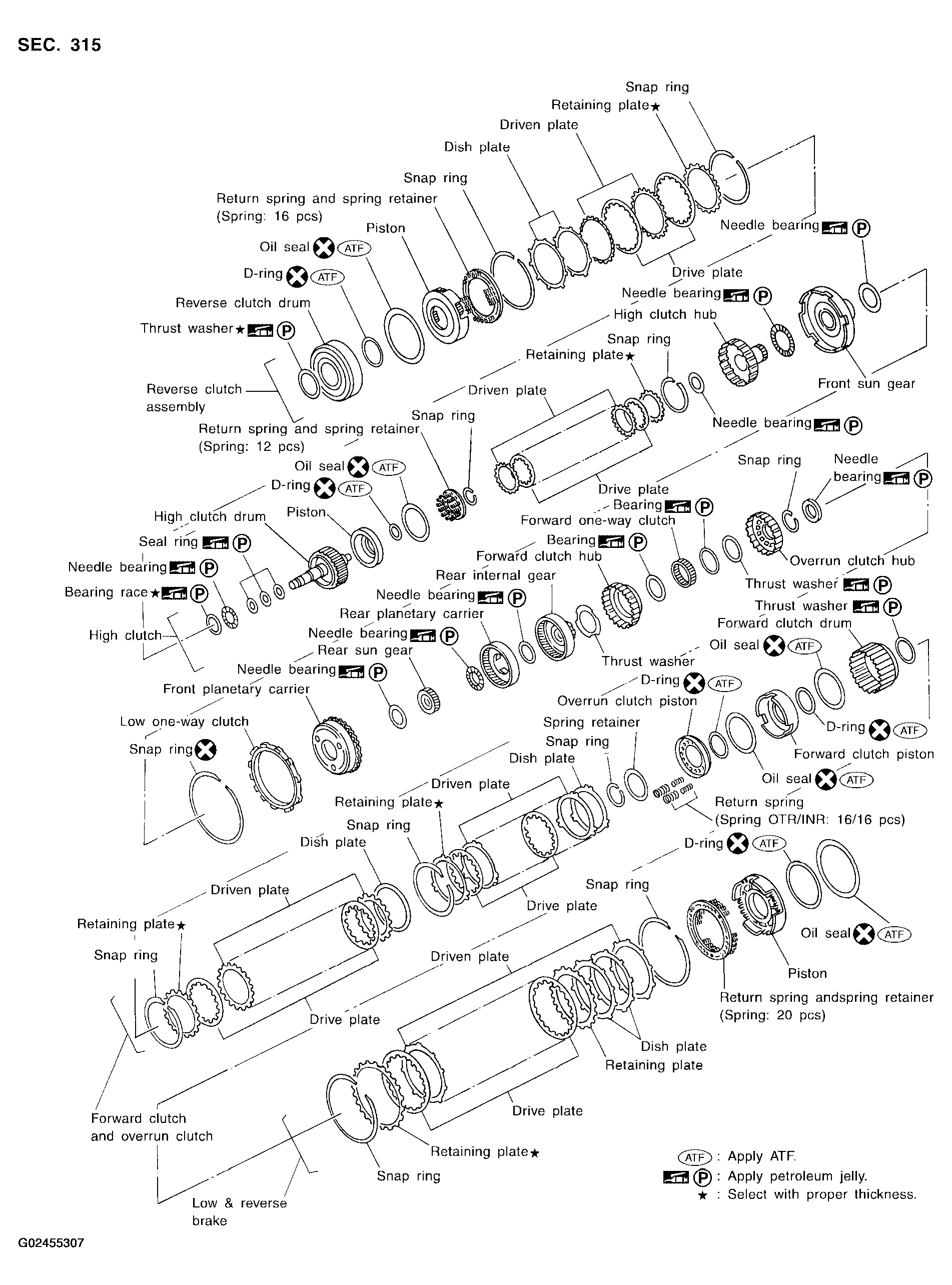

Fig 3: Identifying Overhaul Components (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
