Driver Air Bag Module: Removal

CAUTION:
  • Do not attempt to repair or replace damaged direct-connect driver air bag module connectors. If a direct-connect harness connector is damaged, the harness must be replaced.
  • Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
  • Always work from the side of driver air bag module.
  1. Remove side lids and ASCD steering switch (if equipped). Using the TAMPER RESISTANT TORX (Size T30) (if equipped), remove left and right special bolts or hex head bolts. Driver air bag module can then be removed.
  2. Disconnect the air bag harness connector and remove the air bag module.
    Fig 1: Identifying Special Bolt
    G02451844Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Always place driver air bag module with pad side facing upward.
  • Do not attempt to disassemble air bag module.
  • The bolts are coated with bonding agent. Do not use old bolts after removal; replace with new ones.
  • Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.
    Fig 2: Identifying Placing Direction Of Driver Air Bag Module
    G02451845Courtesy of NISSAN MOTOR CO., U.S.A.
  • Replace driver air bag module if it has been dropped or sustained an impact.
  • Do not expose the driver air bag module to temperatures exceeding 90°C (194°F).
  • Do not allow oil, grease or water to come in contact with the driver air bag module.

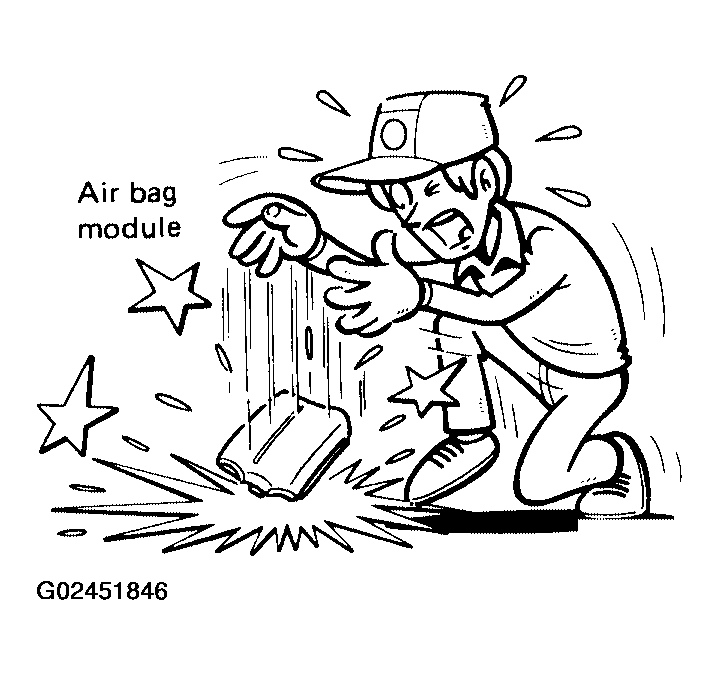

    Fig 3: Precaution While Handling Sensitive Part
    G02451846Courtesy of NISSAN MOTOR CO., U.S.A.
