R Position

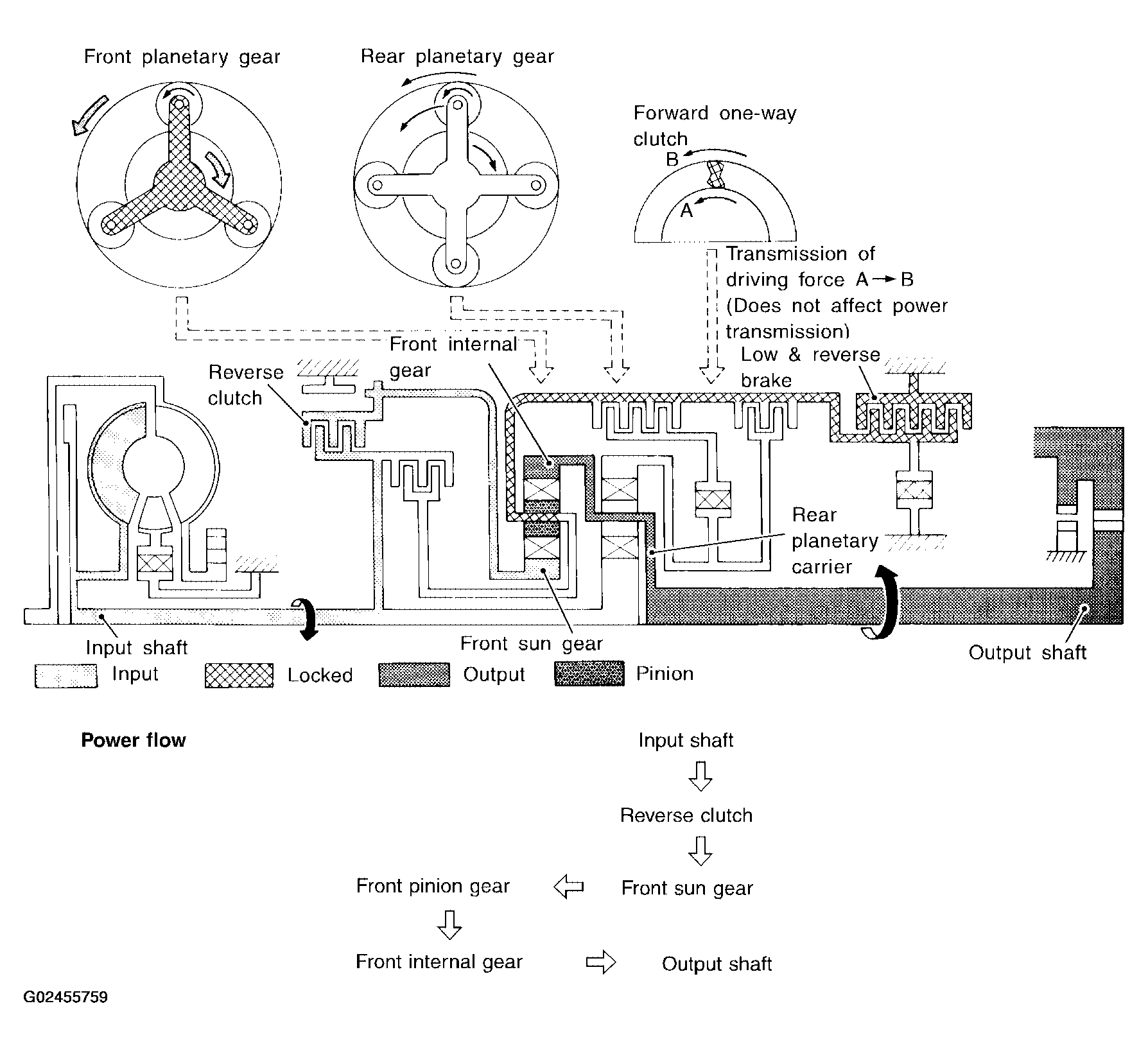

Fig 1: Power Transmission Position R
G02455759Courtesy of NISSAN MOTOR CO., U.S.A.

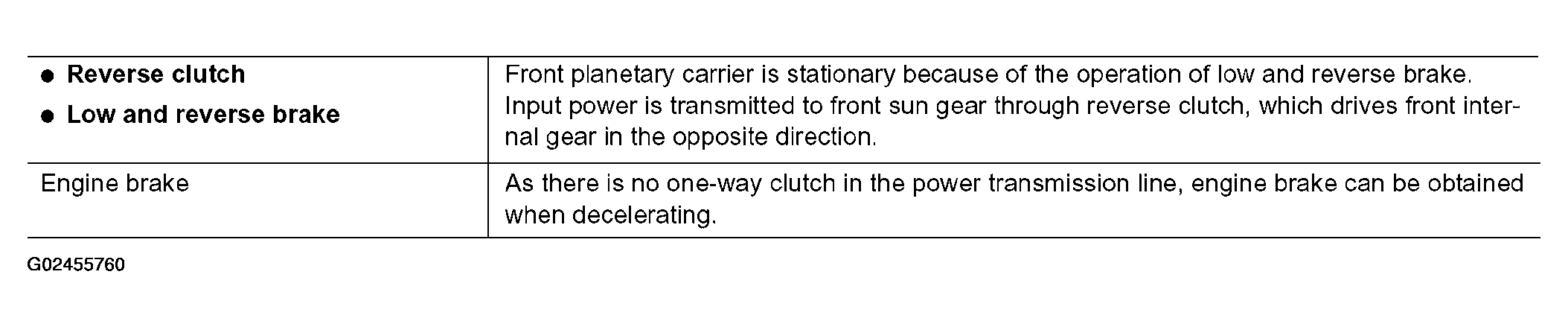

Fig 2: Clutch Engagement Reference Chart (6 Of 6)
G02455760Courtesy of NISSAN MOTOR CO., U.S.A.
