Engine Compartment: Measurement

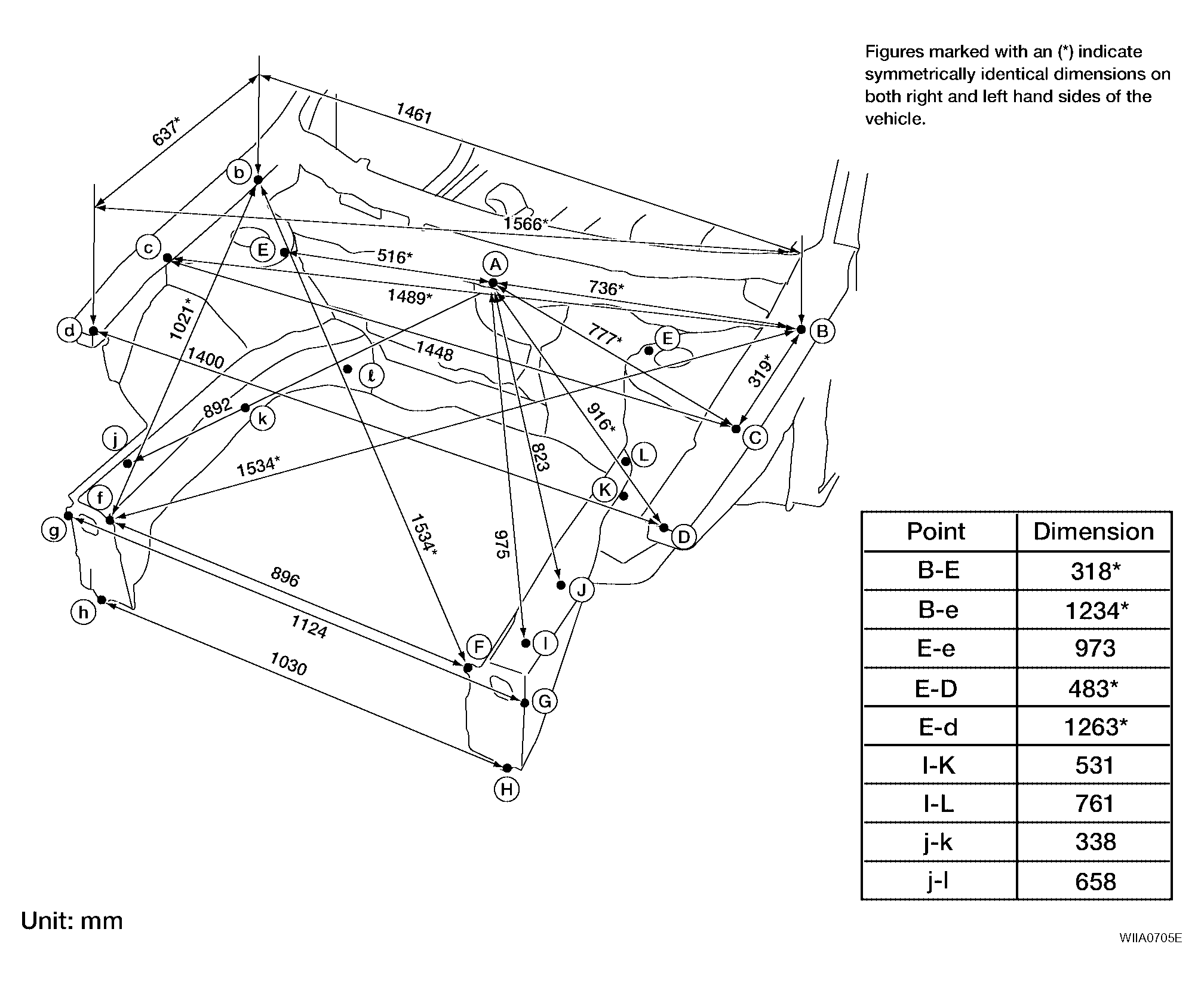

Fig 1: Measurement Of Engine Compartment
Courtesy of NISSAN MOTOR CO., U.S.A.
