Home
>>
Nissan-Datsun
>>
2006
>>
Altima SE-R, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel
>>
Instrument Panel Assembly
>>
Removal and Installation
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Removal and Installation: Notes

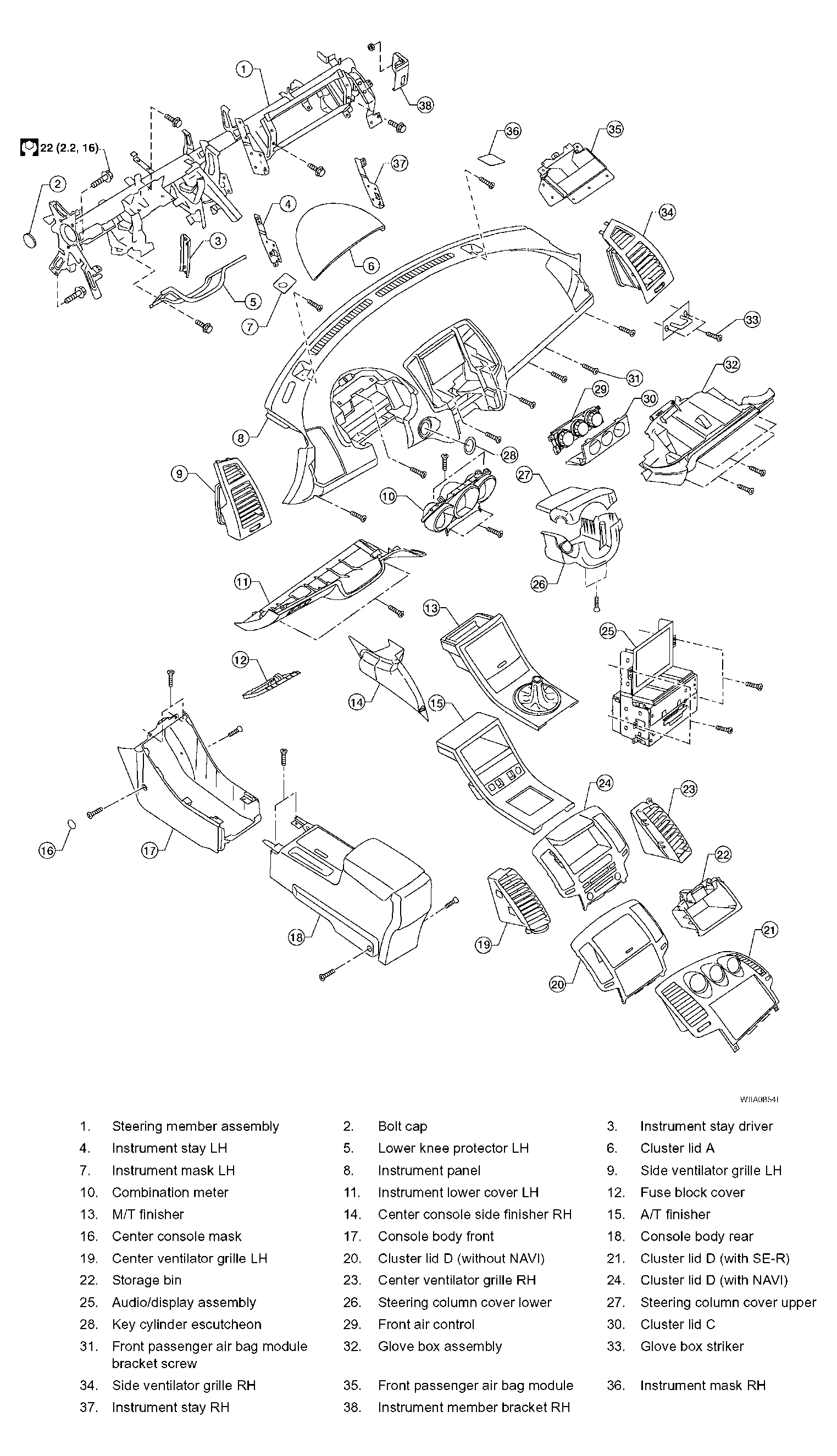

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
