Revolution Sensor Replacement

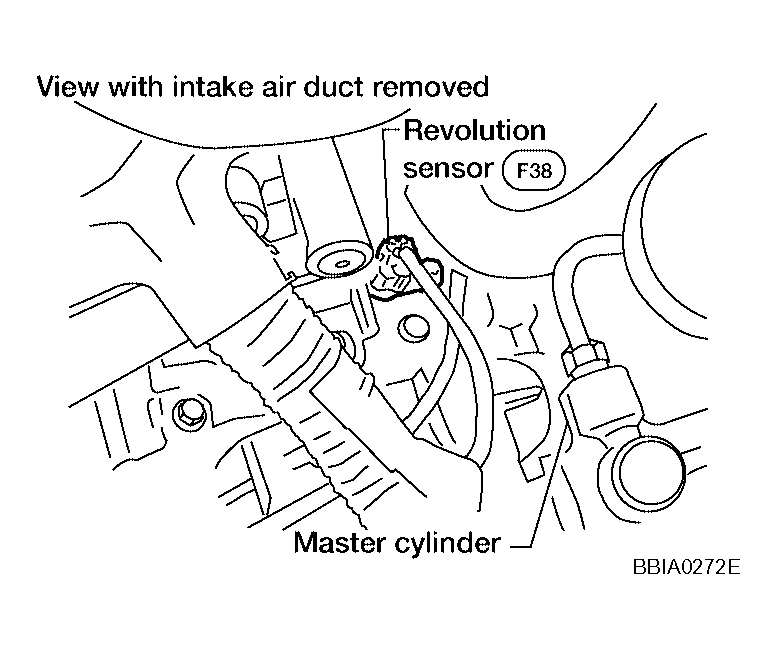

- Remove intake air duct. Refer to "REMOVAL AND INSTALLATION ".
- Disconnect electrical connector.
- Remove bolt and revolution sensor from A/T.CAUTION: Do not damage the revolution sensor or transaxle case.
- Installation is in the reverse order of removal.
- Tighten the revolution sensor bolt to the specified torque. Refer to "OVERHAUL ".
CAUTION:- Do not reuse seal bolt.
- Apply clean ATF to the revolution sensor O-ring before installation.
