Cross-sectional View: Notes

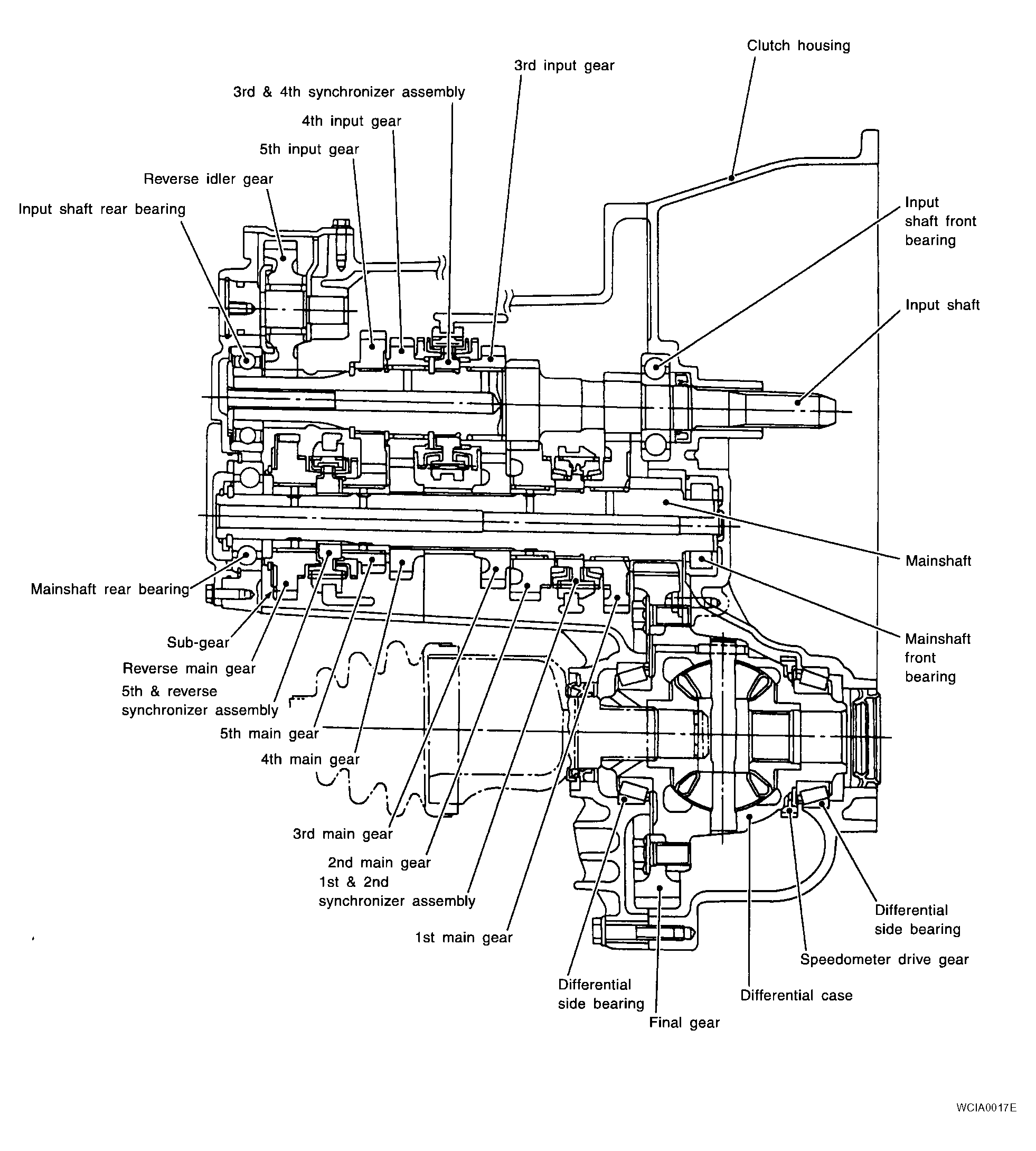

Fig 1: Cross-Sectional View - Manual Transaxle

G04192427

Courtesy of NISSAN MOTOR CO., U.S.A.
