Back-Up Lamp Switch
Check continuity.
BACK-UP LAMP SWITCH CONTINUITY SPECIFICATIONS
Gear position
Continuity
Reverse
Yes
Except reverse
No

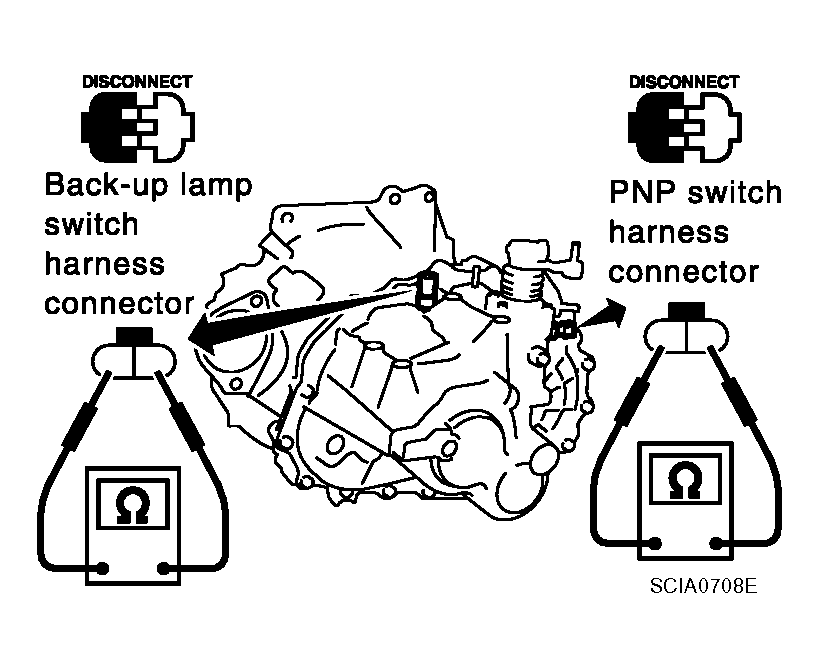

Fig 1: Measuring Continuity Between Back-Up Lamp Switch Connector Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
