ECM Terminals and Reference Value: Preparation

ECM (1) is located behind the passenger side instrument lower panel. For this inspection, remove passenger side instrument lower panel.

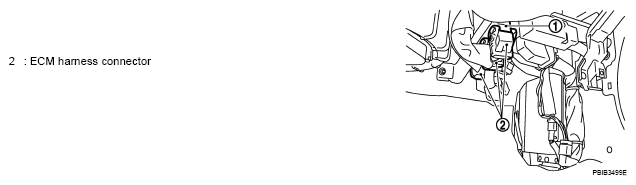

Fig 1: Identifying ECM Harness Connector

Courtesy of NISSAN NORTH AMERICA, INC.
