Component Parts Location

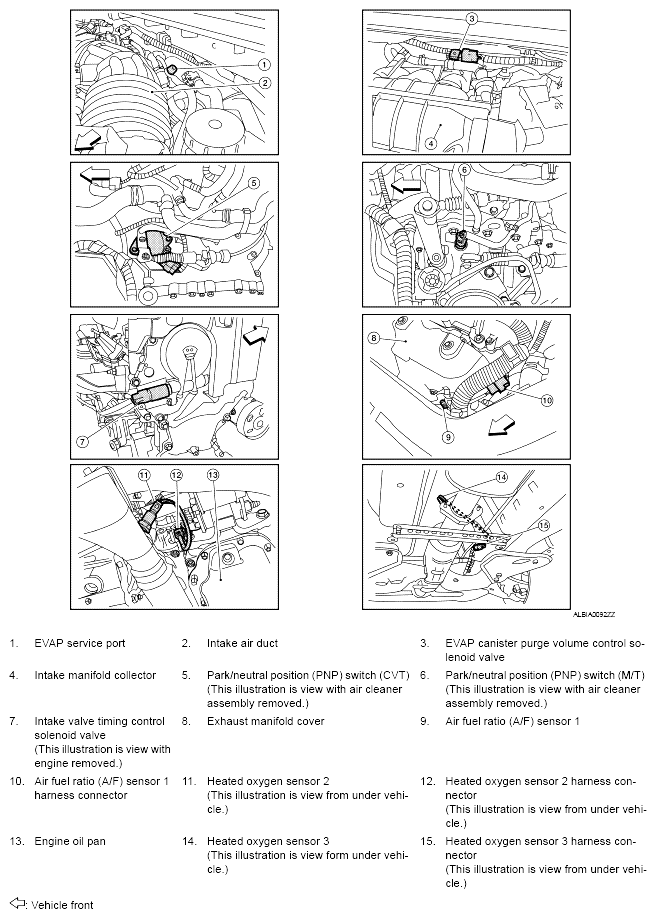

Fig 1: Identifying Intake Valve Timing Control Component Location (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

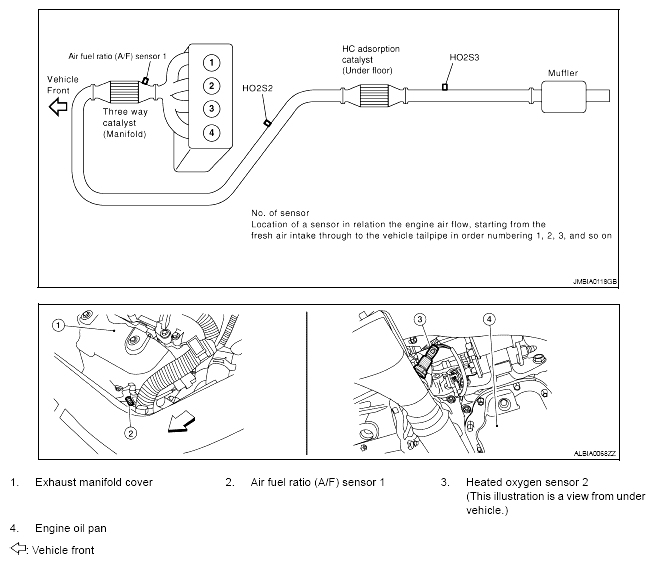

Fig 2: Identifying Intake Valve Timing Control Component Location (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

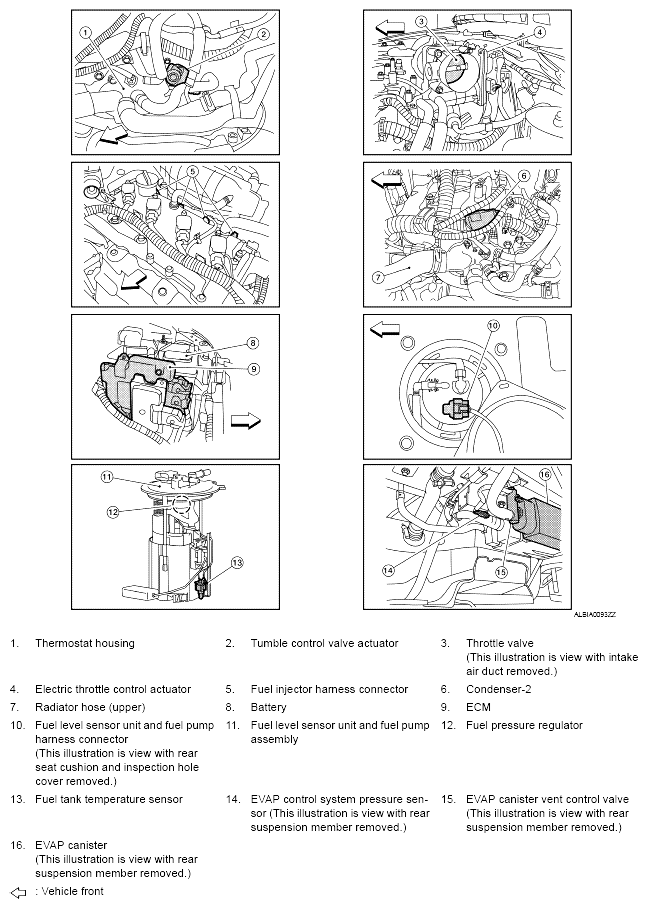

Fig 3: Identifying Intake Valve Timing Control Component Location (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

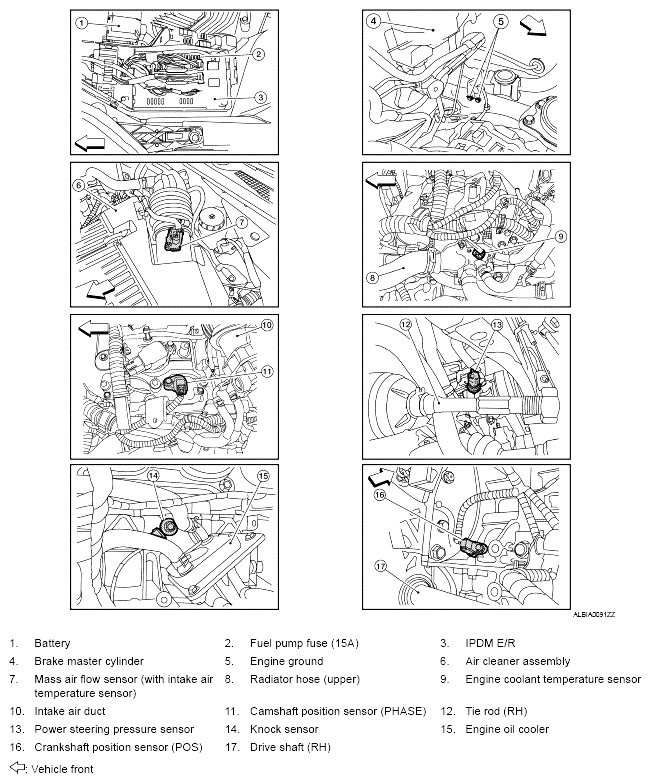

Fig 4: Identifying Intake Valve Timing Control Component Location (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

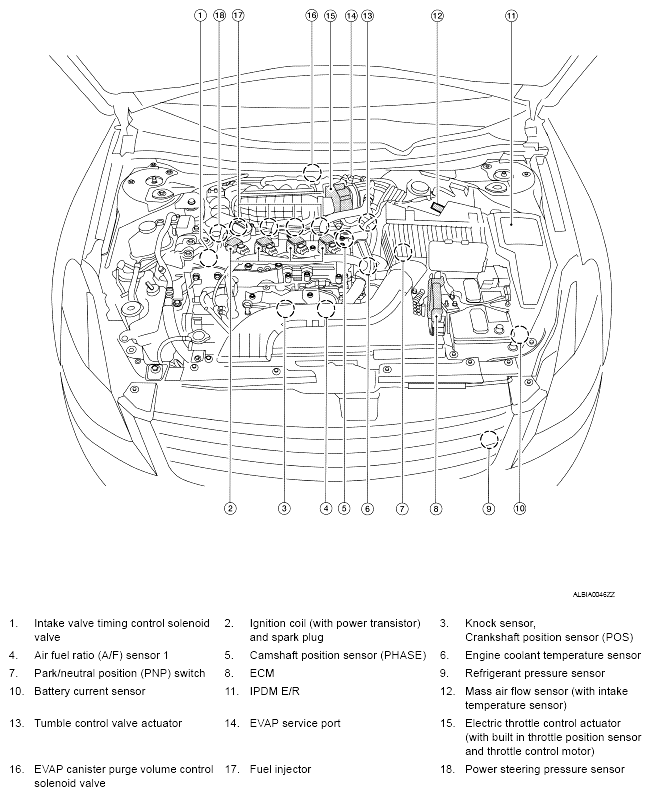

Fig 5: Identifying Intake Valve Timing Control Component Location (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

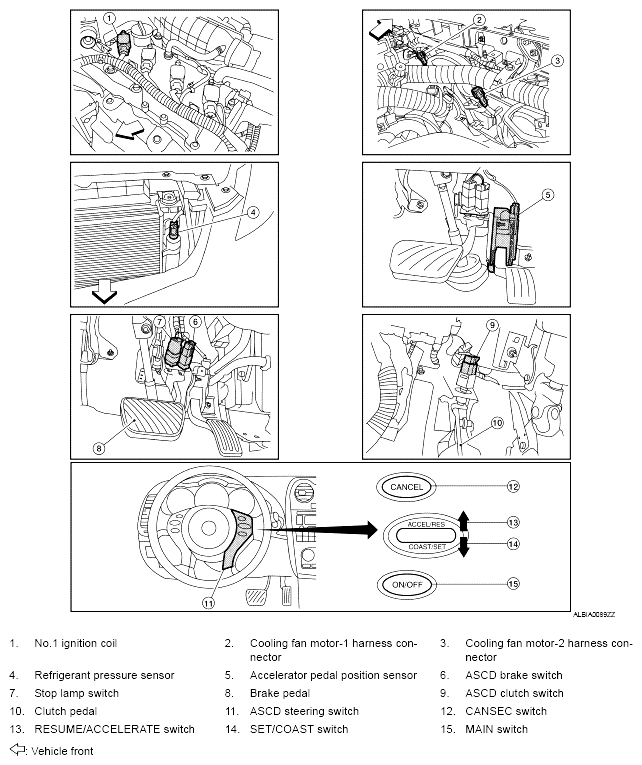

Fig 6: Identifying Intake Valve Timing Control Component Location (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
